Запчасти Hyundai R320LC7 PAGE 6260 UNDER COVER СТРУКТУРА

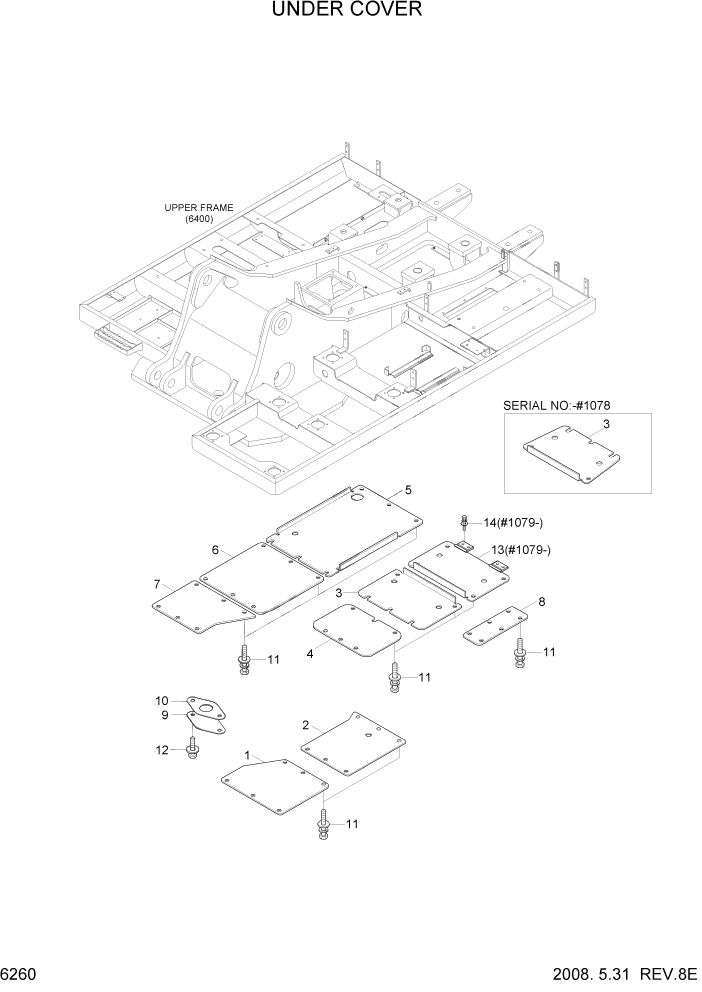

Схема запчастей Hyundai R320LC7 - PAGE 6260 UNDER COVER СТРУКТУРА

Артикул

Название

Примечание

Количество

1

41N9-15230

UNDER COVER-CAB,A

#0426

1шт.

1

41N9-15231

UNDER COVER-CAB,A

#0427 - #1118

1шт.

1

41N9-15231BG

UNDER COVER-CAB,A

#1119

1шт.

2

41N8-15222

UNDER COVER-CAB,B

#1118

1шт.

2

41N8-15222BG

UNDER COVER-CAB,B

#1119

1шт.

3

41N9-15211

UNDER COVER-ENGINE

#1078

2шт.

3

41N9-15211

UNDER COVER-ENGINE

#1079 - #1118

1шт.

3

41N9-15211BG

UNDER COVER-ENG

#1119

1шт.

4

41N8-15242

UNDER COVER-MCV

#1118

1шт.

4

41N8-15242BG

UNDER COVER-MCV

#1119

1шт.

5

41N9-15220

UNDER COVER-PUMP

#1118

1шт.

5

41N9-15220BG

UNDER COVER-PUMP

#1119

1шт.

6

41N8-15261

UNDER COVER-HYD

#1118

1шт.

6

41N8-15261BG

UNDER COVER-HYD

#1119

1шт.

7

41N8-15270

UNDER COVER-FUEL

#1118

1шт.

7

41N8-15270BG

UNDER COVER-FUEL

#1119

1шт.

8

41N8-15280

UNDER COVER-RAD

#1118

1шт.

8

41N8-15280BG

UNDER COVER-RADIATOR

#1119

1шт.

9

41N6-10100

COVER

1шт.

10

41E9-1306

SEAL

1шт.

11

S037-102566

BOLT-W/WASHER

#1078

52шт.

11

S037-102566

BOLT-W/WASHER

#1079

51шт.

12

S037-102052

BOLT-W/WASHER

#1182

2шт.

12

S037-102556

BOLT-W/WASHER

#1183

2шт.

13

41N9-15300

UNDER COVER-ENGINE

#1079 - #1118

1шт.

13

41N9-15300BG

UNDER COVER WA-ENG

#1119

1шт.

14

S037-103056

BOLT-W/WASHER

#1079

4шт.

Выбрано товаров: 27
