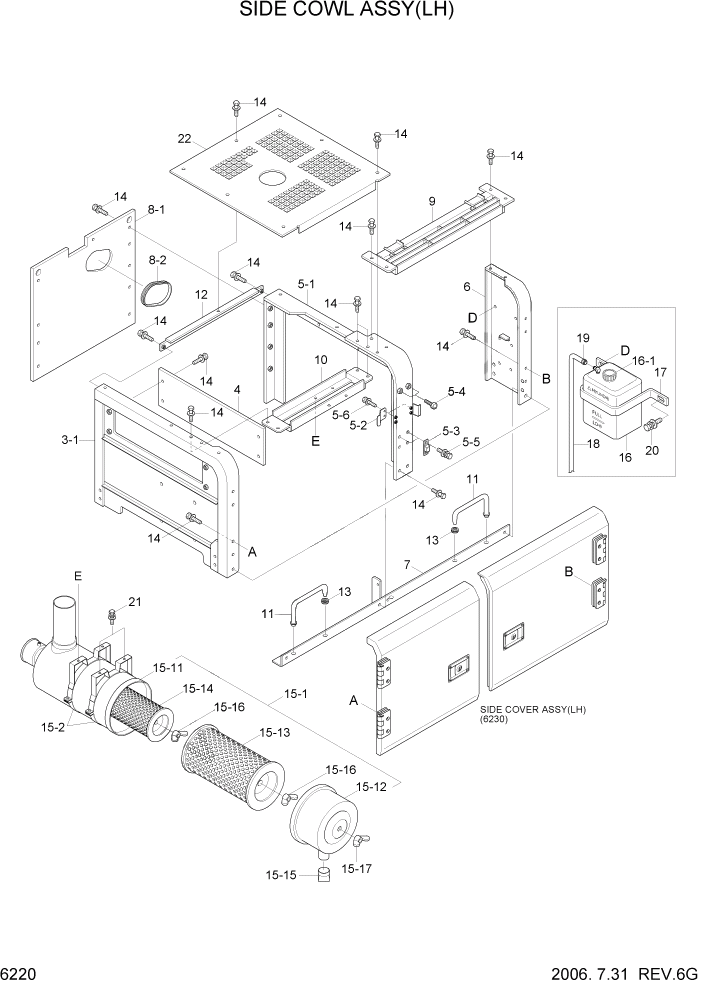

Запчасти Hyundai R320LC7 PAGE 6220 SIDE COWL ASSY(LH) СТРУКТУРА

*

71N9-52002

SIDE COWL ASSY-LH

STD, BLACK #0779

1шт.

*

71N9-52002Y

SIDE COWL ASSY-LH

STD, YELLOW #0780

1шт.

*

71N9-82000

SIDE COWL ASSY-LH

AIR VENT, BLACK #0001 - #0779

1шт.

*

71N9-82000Y

SIDE COWL ASSY-LH

AIR VENT,YELLOW #0780

1шт.

3

71N9-52300

SUPPORT WA-LH,FR

1шт.

4

71N8-52322

PLATE-COVER

1шт.

5

71N9-52401

SUPPORT ASSY-LH,M

#0146

1шт.

5

71N9-52402

SUPPORT ASSY-LH,M

#0147

1шт.

5-1

71N9-52411

SUPPORT WA-LH,M

#0146

1шт.

5-1

71N9-52412

SUPPORT WA-LH,M

#0147

1шт.

5-2

71N8-52492

PLATE-LOCK

2шт.

5-3

71EE-53540

STOPPER-B

2шт.

5-4

71EH-13150

BUMPER-RUBBER

2шт.

5-5

S035-062022

BOLT-W/WASHER

4шт.

5-6

S037-122052

BOLT-W/WASHER

4шт.

6

71NA-52502

SUPPORT WA-LH/RR

1шт.

7

71N9-52601

BASE PLATE WA-LH

1шт.

8

71N9-52701

SCREEN-MCV

#0146

1шт.

8

71N9-52702

SCREEN-MCV

#0147

1шт.

8-1

S791-030074

GROMMET-PLATE

1шт.

9

71NA-52802

SUPPORT WA-E/G HOOD

1шт.

10

71N9-52901

BRACKET WA-A/C

1шт.

11

71N8-52950

STAY-SIDE COVER

2шт.

12

71N9-52980

SUPPORT WA-MCV HOOD

#0146

1шт.

12

71N9-52981

SUPPORT WA-MCV HOOD

#0147

1шт.

13

S681-100400

GROMMET

2шт.

14

S037-122552

BOLT-W/WASHER

#0001 - #0146

40шт.

14

S037-122552

BOLT-W/WASHER

#0147

41шт.

15

11N8-22100

AIR CLEANER SUB ASSY

1шт.

15-1

11N8-22110

AIR CLEANER ASSY

1шт.

15-11

11N8-22120

HOUSING

1шт.

15-12

11N8-22130

CAP WA

1шт.

15-13

11N8-22140

ELEMENT-OUTER

1шт.

15-14

11N8-22150

ELEMENT-INNER

1шт.

15-15

E211-2105

VALVE-VACUUM

1шт.

15-16

11EM-21060

NUT-WING

2шт.

15-17

11EM-21070

NUT-WING

1шт.

15-2

11L1-2005

CLAMP ASSY

2шт.

16

11N8-41070

TANK-RESERVOIR

1шт.

16-1

MH100020

CAP-RESERVOIR TANK

1шт.

17

11N8-41080

CLAMP-RESERVOIR TANK

1шт.

18

E111-2504

HOSE

1шт.

19

S520-015000

CLAMP-HOSE

1шт.

20

S035-082022

BOLT-W/WASHER

2шт.

21

S035-102522

BOLT-W/WASHER

4шт.

22

71N9-55101

HOOD WA-A/C

#0146

1шт.

22

71N9-55102

HOOD WA-A/C

#0147

1шт.
