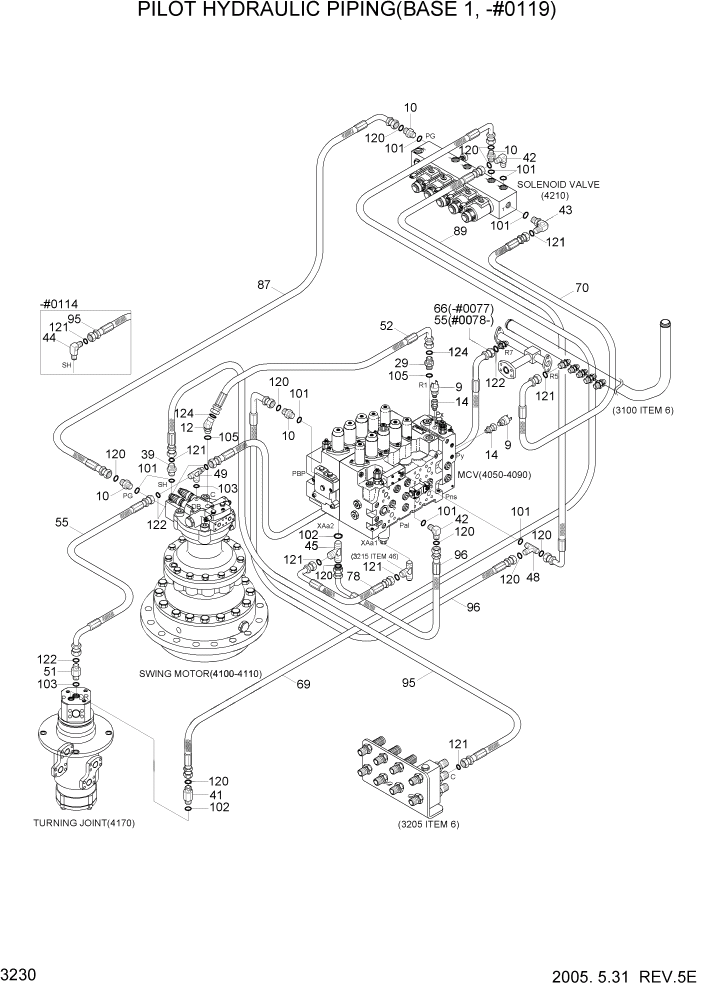

Запчасти Hyundai R305LC7 PAGE 3230 PILOT HYDRAULIC PIPING(BASE 1, -#0119) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

@

UPPER HYD PIPING-BASE

NOT #0119

1шт.

9

31E5-40500

SWITCH-PRESSURE

AUTO IDLE PS

2шт.

10

P010-110002

CONNECTOR

#0110

4шт.

10

X500-110001

CONNECTOR-ORFS

#0111

4шт.

12

P030-110005

ELBOW-45

#0110

1шт.

12

X530-110005

ELBOW-45,ORFS

#0111

1шт.

14

31E5-11110

ADAPTER

2шт.

29

P010-110006

CONNECTOR

#0110

1шт.

29

X500-110005

CONNECTOR-ORFS

#0111

1шт.

41

P101-106044

CONNECTOR-LONG

#0110

1шт.

41

X511-106514

CONNECTOR-LONG,ORFS

#0111

1шт.

42

P020-110001

ELBOW-90

#0110

2шт.

42

X520-110001

ELBOW-90,ORFS

#0111

2шт.

43

P020-110002

ELBOW-90

#0110

1шт.

43

X520-110002

ELBOW-90,ORFS

#0111

1шт.

44

P020-110011

ELBOW-90

#0110

1шт.

44

X520-110011

ELBOW-90,ORFS

#0111 - #0114

1шт.

45

P320-060604

TEE-RUN TYPE

#0110

1шт.

45

X820-065251

TEE-R/TYPE,ORFS

#0111

1шт.

48

P320-040404

TEE-RUN TYPE

#0110

1шт.

48

X820-045151

TEE-R/TYPE,ORFS

#0111

1шт.

49

P310-080808

TEE-BRANCH TYPE

#0110

1шт.

49

X820-085353

TEE-R/TYPE,ORFS

#0111

1шт.

51

P101-108084

CONNECTOR-LONG

#0110

1шт.

51

X511-108534

CONNECTOR-LONG,ORFS

#0111

1шт.

52

P620-162015

HOSE ASSY-THD 0X90

#0110

1шт.

52

P930-162015

HOSE ASSY-ORFS 0X90

#0111

1шт.

55

P420-082018

HOSE ASSY-COMP 0X90

#0077

1шт.

55

P420-082020

HOSE ASSY-COMP 0X90

#0078 - #0110

2шт.

55

P930-082020

HOSE ASSY-ORFS 0X90

#0111

2шт.

66

P420-082024

HOSE ASSY-COMP 0X90

#0077

1шт.

69

P420-042062

HOSE ASSY-COMP 0X90

#0110

1шт.

69

X420-042062

HOSE ASSY-SYNFLEX,ORFS

#0111

1шт.

70

P420-062041

HOSE ASSY-COMP 0X90

#0110

1шт.

70

X420-062041

HOSE ASSY-SYNFLEX,ORFS

#0111

1шт.

78

P420-062010

HOSE ASSY-COMP 0X90

#0110

1шт.

78

X420-062010

HOSE ASSY-SYNFLEX,ORFS

#0111

1шт.

87

P420-042054

HOSE ASSY-COMP 0X90

#0110

1шт.

87

X420-042054

HOSE ASSY-SYNFLEX,ORFS

#0111

1шт.

89

P420-042046

HOSE ASSY-COMP 0X90

#0110

1шт.

89

X420-042046

HOSE ASSY-SYNFLEX,ORFS

#0111

1шт.

95

P400-062040

HOSE ASSY-COMP 0X0

#0110

1шт.

95

X400-062046

HOSE ASSY-SYNFLEX,ORFS

#0111

1шт.

96

P420-042013

HOSE ASSY-COMP 0X90

#0110

2шт.

96

X420-042013

HOSE ASSY-SYNFLEX,ORFS

#0111

2шт.

101

S631-011004

O-RING

7шт.

102

S631-014004

O-RING

2шт.

103

S631-018004

O-RING

2шт.

105

S631-029004

O-RING

2шт.

120

S621-011001

O-RING,ORFS

#0111

10шт.

121

S621-012001

O-RING,ORFS

#0111

6шт.

122

S621-014001

O-RING,ORFS

#0111

4шт.

124

S621-021001

O-RING,ORFS

#0111

2шт.
