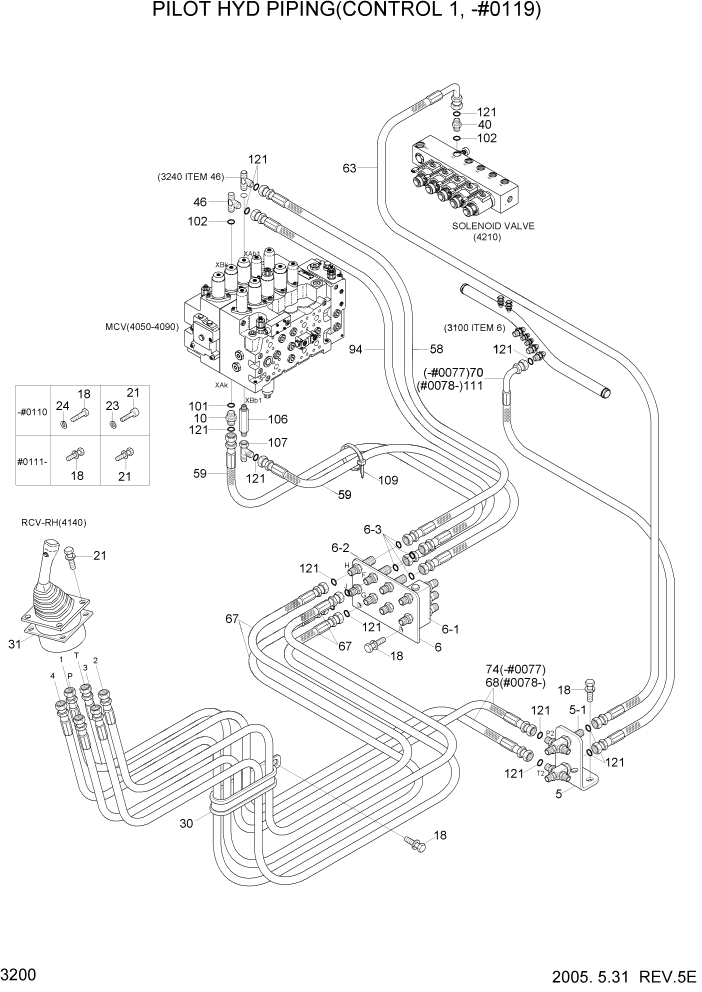

Запчасти Hyundai R305LC7 PAGE 3200 PILOT HYD PIPING(CONTROL 1, -#0119) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

@

PILOT HYD PIPING

NOT #0119

1шт.

5

31NB-20021

CROSS ASSY

#0110

1шт.

5

31NB-20022

CROSS ASSY

#0111

1шт.

5-1

31N8-24040

CROSS-BULK HEAD TYPE

#0111

2шт.

6

31N8-22121

TERMINAL ASSY-C

#0110

1шт.

6

31N8-24010

TERMINAL ASSY-C

#0111

1шт.

6-1

31N8-22130

SHUTTLE-5 PORT

#0110

1шт.

6-1

31N8-24030

SHUTTLE-5 PORT

#0111

1шт.

6-2

31N8-22150

CONNECTOR-2 NUT

#0110

6шт.

6-2

X540-120002

CONNECTOR-B.H TYPE

#0111

6шт.

6-3

S621-120001

O-RING

#0111

12шт.

10

P010-110002

CONNECTOR

#0110

1шт.

10

X500-110001

CONNECTOR-ORFS

#0111

1шт.

18

S017-100206

BOLT-HEX

#0110

5шт.

18

S037-102526

BOLT-W/WASHER

#0111

5шт.

21

S175-060256

SCREW-SOCKET RD HD

#0110

4шт.

21

S035-063046

BOLT-W/WASHER

#0111

4шт.

23

S403-062006

WASHER-PLAIN

#0110

4шт.

24

S411-100006

WASHER-SPRING

#0110

5шт.

30

31E7-0310

CLAMP-HOSE

1шт.

31

31M6-51061

SHIM(3.2T)

5шт.

40

P010-110003

CONNECTOR

#0110

1шт.

40

X500-110002

CONNECTOR-ORFS

#0111

1шт.

46

P320-060606

TEE-RUN TYPE

#0110

1шт.

46

X820-065252

TEE-R/TYPE,ORFS

#0111

1шт.

58

P400-062038

HOSE ASSY-COMPACT

#0110

1шт.

58

X400-062038

HOSE ASSY-SYNFLEX,ORFS

#0111

1шт.

59

P400-062033

HOSE ASSY-COMPACT

#0110

2шт.

59

X400-062033

HOSE ASSY-SYNFLEX,ORFS

#0111

2шт.

63

P420-062070

HOSE ASSY-COMP 0X90

#0077

1шт.

63

P420-062076

HOSE ASSY-COMP 0X90

#0078 - #0110

1шт.

63

X420-062076

HOSE ASSY-SYNFLEX,ORFS

#0111

1шт.

67

P410-062041

HOSE ASSY-COMP 0X45

#0110

4шт.

67

X410-062041

HOSE ASSY-SYNFLEX,ORFS

#0111

4шт.

68

P410-062028

HOSE ASSY-COMP 0X45

#0078 - #0110

2шт.

68

P920-062028

HOSE ASSY-ORFS 0X45

#0111

2шт.

70

P420-062041

HOSE ASSY-COMP 0X90

#0077

1шт.

74

P410-062030

HOSE ASSY-COMP 0X45

#0077

2шт.

94

P400-062039

HOSE ASSY-COMPACT

#0110

1шт.

94

X400-062039

HOSE ASSY-SYNFLEX,ORFS

#0111

1шт.

101

S631-011004

O-RING

1шт.

102

S631-014004

O-RING

3шт.

106

31N6-22110

VALVE-SHOCKLESS

#0110

1шт.

106

31N6-22370

VALVE-SHOCKLESS

#0111

1шт.

107

31ER-20040

TEE-SWIVEL

#0110

1шт.

109

X840-525152

TEE-R/TYPE,ORFS

#0111

1шт.

109

S551-050203

CLAMP-BAND

10шт.

111

P420-062047

HOSE ASSY-COMP 0X90

#0078

1шт.

121

S621-012001

O-RING

#0111

12шт.
