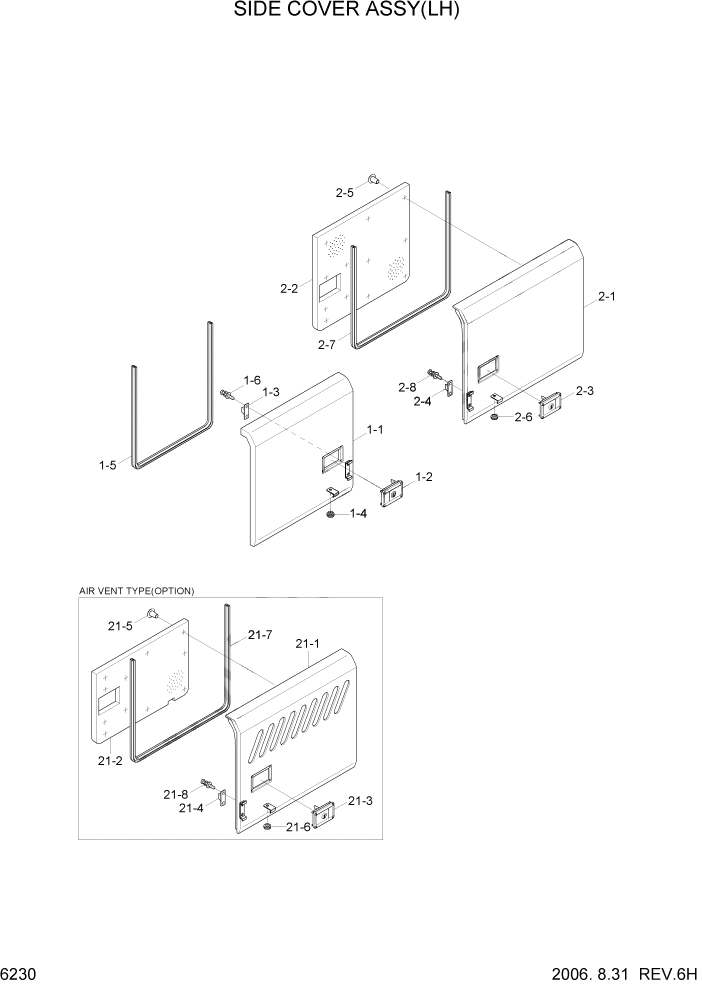

Запчасти Hyundai R305LC7 PAGE 6230 SIDE COVER ASSY(LH) СТРУКТУРА

*

@

SIDE COWL ASSY-LH

NOT

1шт.

1

71N8-62100

SIDE COVER ASSY-LH,FR

STD #0182

1шт.

1

71N8-62100Y

SIDE COVER ASSY-LH,FR

STD #0183

1шт.

1-1

71N8-62110

SIDE COVER WA-LH,FR

1шт.

1-2

71EE-52520

CATCH ASSY

BLACK #0182

1шт.

1-2

74N8-52520

CATCH ASSY

YELLOW #0183

1шт.

1-3

71EE-53531

STOPPER-A

1шт.

1-4

S681-100400

GROMMET

1шт.

1-5

S772-024000

WEATHER STRIP

1шт.

1-6

S035-061622

BOLT-W/WASHER

2шт.

2

71N8-52203

SIDE COVER ASSY-LH,RR

STD #0182

1шт.

2

71N8-52203Y

SIDE COVER ASSY-LH,RR

#0183

1шт.

2-1

71N8-52213

COVER WA-LH,RR

1шт.

2-2

71N8-52242

SPONGE

1шт.

2-3

71EE-52520

CATCH ASSY

#0182

1шт.

2-3

74N8-52520

CATCH ASSY

#0183

1шт.

2-4

71EE-53531

STOPPER-A

1шт.

2-5

71EM-51580

CAP-STUD BOLT

12шт.

2-6

S681-100400

GROMMET

1шт.

2-7

S772-026300

WEATHER STRIP

1шт.

2-8

S035-061622

BOLT-W/WASHER

2шт.

21

71N8-72201

SIDE COVER ASSY-LH,RR

AIR VENT #0182

1шт.

21

71N8-72201Y

SIDE COVER ASSY-LH,RR

AIR VENT #0183

1шт.

21-1

71N8-72211

COVER WA-LH,RR

1шт.

21-2

71N8-72240

SPONGE

1шт.

21-3

71EE-52520

CATCH ASSY

BLACK #0182

1шт.

21-3

74N8-52520

CATCH ASSY

YELLOW #0183

1шт.

21-4

71EE-53531

STOPPER-A

1шт.

21-5

71EM-51580

CAP-STUD BOLT

12шт.

21-6

S681-100400

GROMMET

1шт.

21-7

S772-026300

WEATHER STRIP

1шт.

21-8

S035-061622

BOLT-W/WASHER

2шт.
