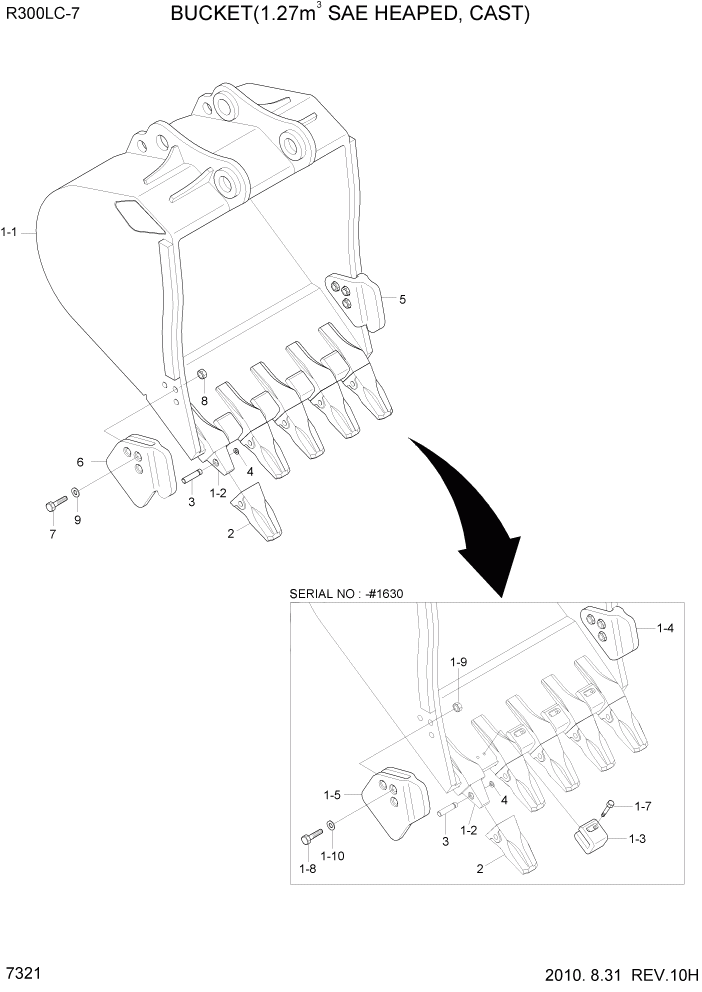

Запчасти Hyundai R300LC7 PAGE 7321 BUCKET(1.27M3 SAE HEAPED, CAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

*

68N8-30000

BUCKET ASSY-CASTING

#1543 - #1630

1шт.

*

68N8-30002

BUCKET ASSY-CASTING

#1640 - #1639

1шт.

*

68N8-30003

BUCKET ASSY-CASTING

#1640

1шт.

N1

68N8-30010

BUCKET WA-CASTING

NOT #1630

1шт.

1

68N8-30012

BUCKET WA-CASTING

#1640 - #1639

1шт.

1

68N8-30013

BUCKET WA-CASTING

#1640

1шт.

N1-1

68N8-30020

BUCKET-CASTING

NOT #1639

1шт.

N1-1

68N8-30022

BUCKET-CASTING

NOT #1640

1шт.

1-2

68N8-31320

ADAPTER-TOOTH

#1639

5шт.

1-2

68N8-31321

ADAPTER-TOOTH

#1640

5шт.

N1-3

68N8-30030

REINF-FRONT

NOT #1630

4шт.

1-3

68N8-31030

REINF-FRONT

#1669

4шт.

1-4

68N8-30040

SIDE REINF-LH

#1630

1шт.

1-5

68N8-30050

SIDE REINF-RH

#1630

1шт.

1-5

68N8-31060

REINF-BOTTOM

#1669

3шт.

1-6

68N8-31070

REINF-BOTTOM,LH

#1669

1шт.

1-7

S019-18085D

BOLT-HEX

#1630

8шт.

*

68N8-30002

BUCKET ASSY-CASTING

#1640

1шт.

1-7

68N8-31080

REINF-BOTTOM,RH

#1669

1шт.

1-8

S019-18070D

BOLT-HEX

#1630

6шт.

1

68N8-30012

BUCKET WA-CASTING

#1640

1шт.

1-9

S205-18100B

NUT-HEX

#1630

14шт.

1-1

68N8-30021

BUCKET-CASTING

#1640

1шт.

1-1

S411-180006

WASHER-SPRING

#1630

14шт.

1-2

68N8-31321

ADAPTER-TOOTH

#1640

5шт.

2

61N8-31310BG

POINT-TOOTH

5шт.

3

E262-5004

PIN-TOOTH

5шт.

4

61E5-11150

WASHER-LOCK

5шт.

5

68N8-30040

SIDE REINF-LH

#1631 - #1639

1шт.

5

68N8-30041

SIDE REINF-LH

#1640 - #1668

1шт.

5

68N8-31040

SIDE REINF-LH

#1669

1шт.

6

68N8-30050

SIDE REINF-RH

#1631 - #1639

1шт.

6

68N8-30051

SIDE REINF-RH

#1640 - #1668

1шт.

6

68N8-31050

SIDE REINF-RH

#1669

1шт.

7

S019-18065D

BOLT-HEX

#1631 - #1668

6шт.

7

S019-18065D

BOLT-HEX

#1669

8шт.

8

S205-18100B

NUT-HEX

#1631 - #1668

6шт.

8

S205-18100B

NUT-HEX

#1669

8шт.

9

S411-180006

WASHER-SPRING

#1631 - #1668

6шт.

9

S411-180006

WASHER-SPRING

#1669

8шт.
