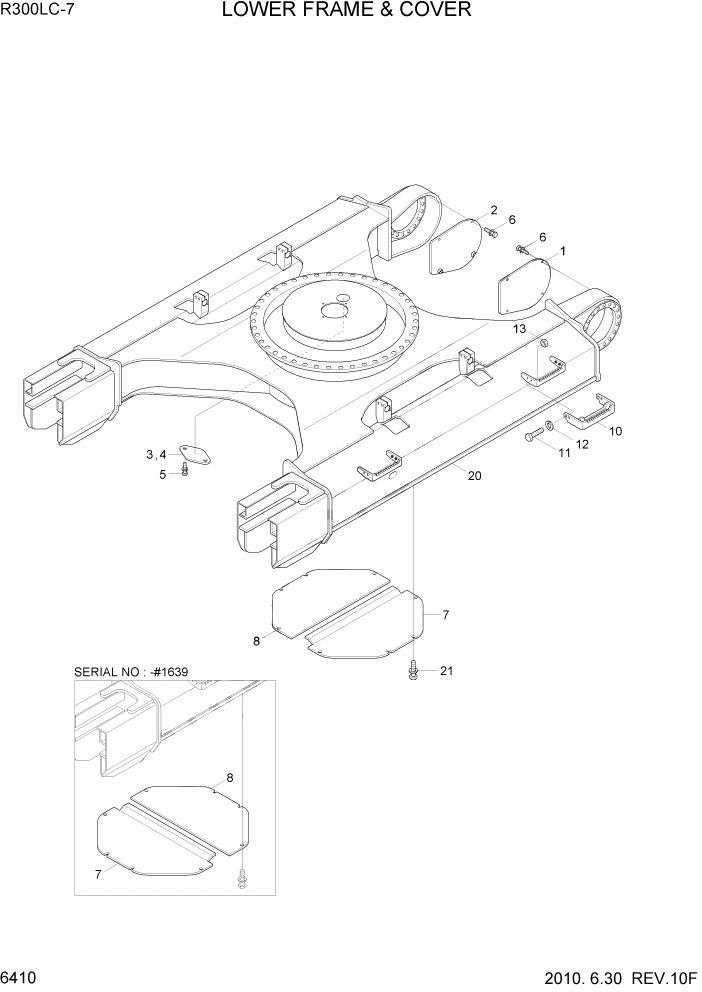

Запчасти Hyundai R300LC7 PAGE 6410 LOWER FRAME & COVER СТРУКТУРА

1

51N8-11112BG

COVER WA-T/MOTOR,LH

1шт.

2

51N8-11122BG

COVER WA-T/MOTOR,RH

1шт.

3

41N6-10100

COVER

1шт.

4

41E9-1306

SEAL

1шт.

5

S037-102056

BOLT-W/WASHER

2шт.

6

S037-123556

BOLT-W/WASHER

8шт.

6

S037-124552

BOLT-W/WASHER

OPT, ADDITION

8шт.

7

51N6-11230BG

COVER-BOTTOM(A)

1шт.

8

51N6-11240BG

COVER-BOTTOM(B)

1шт.

10

51N6-02640BG

BOARD-FOOT

700MM SHOE

4шт.

10

51N6-02650BG

BOARD-FOOT

800MM SHOE

4шт.

10

51N6-02660BG

BOARD-FOOT

900MM SHOE

4шт.

11

S017-120506

BOLT-HEX

16шт.

12

S441-12000B

WASHER-HARDENED

32шт.

13

S205-12100B

NUT-HEX

16шт.

20

51N8-00012BG

LOWER FRAME WA

1шт.

21

S037-124552

BOLT-W/WASHER

8шт.
