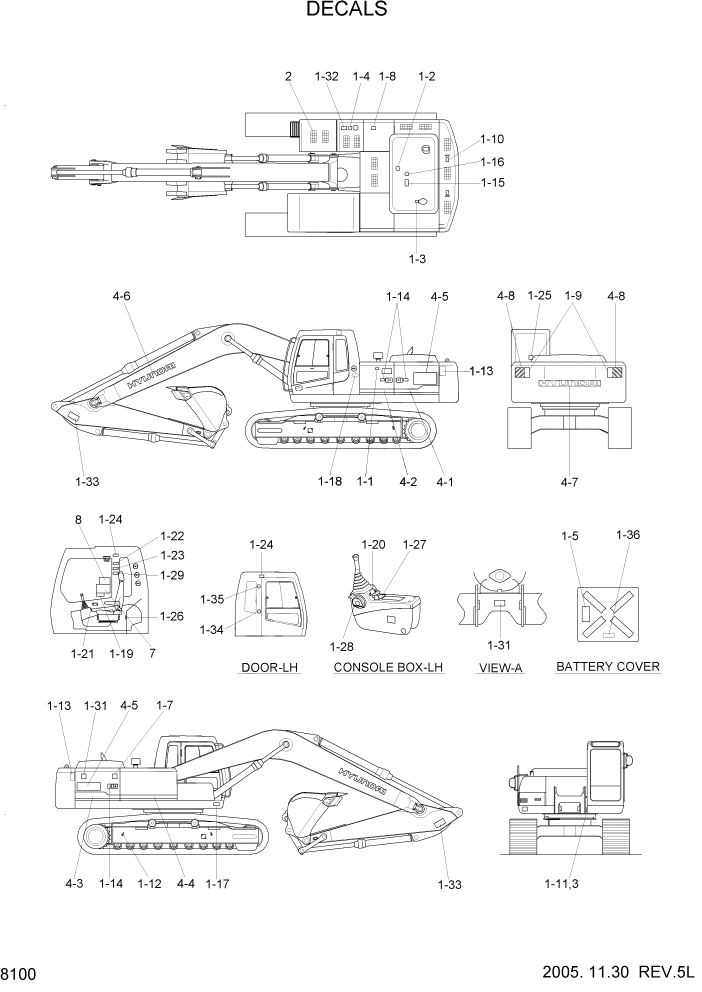

Запчасти Hyundai R290LC7H PAGE 8100 DECALS ДРУГИЕ ЧАСТИ

1

@

DECAL KIT

NOT

1шт.

1-1

91N6-01102

AIR CLEANER FILTER

1шт.

1-2

91N6-01111

TURBO COVER

1шт.

1-3

91N6-01121

RADIATOR CAP

1шт.

1-4

91N6-01131

FUELING

1шт.

1-5

91N6-02120

BATTERY ACCIDENT

1шт.

1-7

91N6-03102

HYD OIL LEVEL

1шт.

1-9

91N6-04122

DECAL-KEEP CLEAR

2шт.

1-1

91N6-04132

LIFTING EYE

2шт.

1-11

91E1-14110

NAME PLATE

1шт.

1-12

91N6-05110

SLINGING IDEOGRAM

4шт.

1-13

91N6-07102

SIDE KEEP CLEAR

2шт.

1-14

91N6-07112

STAY FIX

3шт.

1-15

91N6-07121

SHEARING

1шт.

1-16

91N6-07131

NO STEP-ENGINE HOOD

1шт.

1-17

91N6-07141

TRANSPORTING

1шт.

1-18

91E1-27110

LOW EMISSION ENG

1шт.

1-19

91N6-08200

CONTROL IDEOGRAM

1шт.

1-2

91N6-08210

CONTROL IDEOGRAM-LH

1шт.

1-21

91N6-07221

CONTROL IDEOGRAM-RH

1шт.

1-22

91N6-07231

REF OPERATOR MANUAL

1шт.

1-23

91N6-07241

MAX HEIGHT

1шт.

1-24

91N6-07252

SAFETY FRONT WINDOW

2шт.

1-25

91N6-07261

ALTERNATE EXIT

1шт.

1-26

91N6-07272

AIR CONDITIONER FILTER

1шт.

1-27

91N6-07301

CONSOLE BOX-TILTING

1шт.

1-28

91N6-07311

SAFETY LEVER

1шт.

1-29

91N6-07320

INTERFERENCE

1шт.

1-31

91N6-03130

HIGH PRESSURE HOSE

2шт.

1-32

91N6-03140

FALLING

1шт.

1-33

91N6-06110

KEEP CLEAR-BOOM/ARM

2шт.

1-34

91N6-07280

DECAL-HAMMER

1шт.

1-35

91N6-07290

FIRE EXTINGUISHER

1шт.

1-36

91LB-01350

DECAL-ECU CONNECTOR

#1561

1шт.

2

91E1-26300

STEP TREAD

11шт.

3

91EK-12010

RIVET

4шт.

4

@

DECAL-TRAD MARK

NOT

1шт.

4-1

91N8-19110

MODEL NAME-LH/RR

1шт.

4-2

91N8-17210

MODEL NAME-LH/FRONT

1шт.

4-3

91N8-19120

MODEL NAME-RH/RR

1шт.

4-4

91N8-17220

MODEL NAME-RH/FRONT

1шт.

4-5

91N8-17140

LOGO-ROBEX

2шт.

4-6

91N6-21120

TRADE MARK-BOOM/CWT

2шт.

4-7

91N6-21130

TRADE MARK-BOOM/CWT

1шт.

4-8

91N6-04101

KEEP CLEAR-WORK AREA

2шт.

7

91N8-27270

SERVICE INSTRUCTION

1шт.

8

91N8-17401

LIFTING CHART

1шт.
