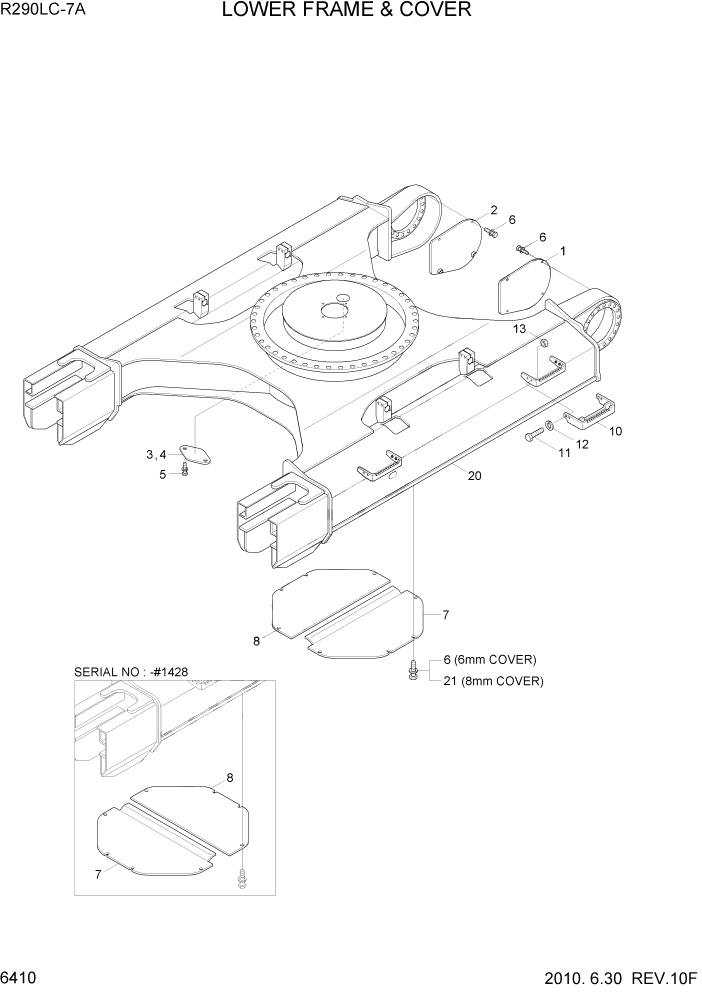

Запчасти Hyundai R290LC7A PAGE 6410 LOWER FRAME & COVER СТРУКТУРА

1

51N8-11112

COVER WA-T/MOTOR,LH

#0284

1шт.

1

51N8-11112BG

COVER WA-T/MOTOR,LH

#0285

1шт.

2

51N8-11122

COVER WA-T/MOTOR,RH

#0284

1шт.

2

51N8-11122BG

COVER WA-T/MOTOR,RH

#0285

1шт.

3

41N6-10100

COVER

#0284

1шт.

3

41N6-10100BG

COVER

#0285 - #0499

1шт.

3

41N6-10100

COVER

#0500

1шт.

4

41E9-1306

SEAL

1шт.

5

S037-102056

BOLT-W/WASHER

2шт.

6

S037-123556

BOLT-W/WASHER

16шт.

6

S037-124556

BOLT-W/WASHER

OPT, ADDITION #0344

8шт.

7

51N6-11211

COVER-BOTTOM(A)

STD, 6MM #0284

1шт.

7

51N6-11211BG

COVER-BOTTOM(A)

STD, 6MM #2085

1шт.

7

51N6-11230BG

COVER-BOTTOM(A)

OPT, 8MM #0344

1шт.

8

51N6-11221

COVER-BOTTOM(B)

STD, 6MM #0284

1шт.

8

51N6-11221BG

COVER-BOTTOM(B)

STD, 6MM #0285

1шт.

8

51N6-11240BG

COVER-BOTTOM(B)

OPT, 8MM #0344

1шт.

10

51N6-02640

BOARD-FOOT

700MM SHOE #0284

1шт.

10

51N6-02640BG

BOARD-FOOT

#0285

1шт.

10

51N6-02650

BOARD-FOOT

800MM SHOE #0284

1шт.

10

51N6-02650BG

BOARD-FOOT

#0285

1шт.

10

51N6-02660

BOARD-FOOT

900MM SHOE #0284

1шт.

10

51N6-02660BG

BOARD-FOOT

#0285

1шт.

11

S017-120506

BOLT-HEX

16шт.

12

S441-12000B

WASHER-HARDENED

32шт.

13

S205-12100B

NUT-HEX

16шт.

20

51N8-00012

LOWER FRAME WA

R290LC-7A #0284

1шт.

20

51N8-00012BG

LOWER FRAME WA

#0285

1шт.

20

51N8-05011

LOWER FRAME WA

R290NLC-7A #0284

1шт.

20

51N8-05011BG

LOWER FRAME WA

#0285

1шт.

21

S037-124556

BOLT-W/WASHER

#0344

8шт.
