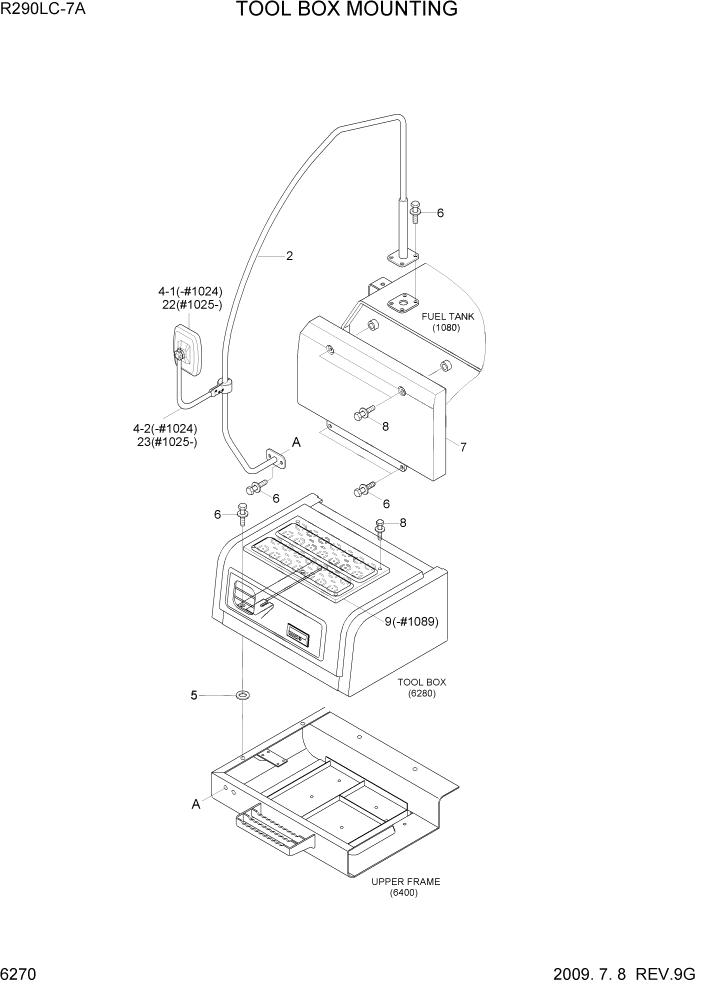

Запчасти Hyundai R290LC7A PAGE 6270 TOOL BOX MOUNTING СТРУКТУРА

2

71N8-42005

PIPE WA

#0284

1шт.

2

71N8-42005BG

PIPE WA

#0285

1шт.

2-1

S015-080402

BOLT-HEX

2шт.

2-2

S411-080002

WASHER-SPRING

2шт.

4

71N8-48001

MIRROR & STAY ASSY-RH

#0001 - #0284

1шт.

4

71N8-48001BG

MIRROR & STAY ASSY-RH

#0285 - #1024

1шт.

4-1

71N8-47100

MIRROR

#1024

1шт.

4-2

71N8-48101

STAY ASSY-RH

#0284

1шт.

4-2

71N8-48101BG

STAY ASSY-RH

#0285 - #1024

1шт.

5

S390-015040

SHIM-ROUND(0.5T)

4шт.

6

S037-122552

BOLT-W/WASHER

#0083

8шт.

6

S037-122556

BOLT-W/WASHER

#0084

14шт.

7

71N8-44100

COVER-FUEL TANK

1шт.

8

S037-121556

BOLT-W/WASHER

#1089

4шт.

9

72N8-49100

FOOT BOARD-TOOL BOX

SEE 6280 #0084 - #1089

1шт.

22

71N8-47101

MIRROR

#1025

1шт.

23

71N8-48102BG

STAY ASSY-RH

#1025

1шт.
