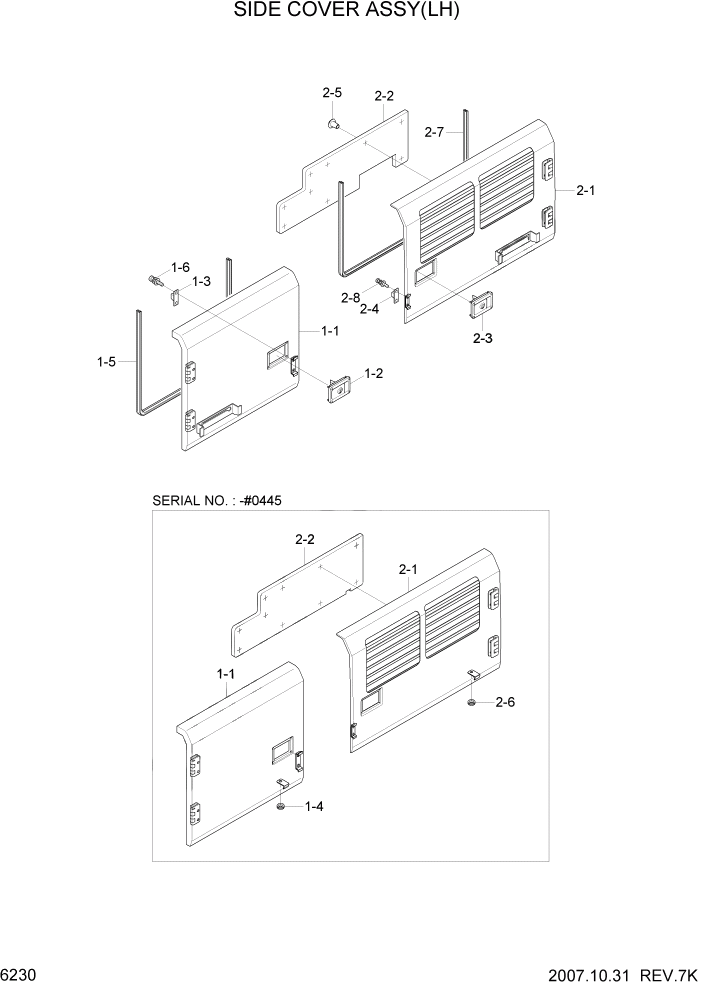

Запчасти Hyundai R290LC7A PAGE 6230 SIDE COVER ASSY(LH) СТРУКТУРА

*

@

SIDE COWL ASSY

NOT

1шт.

1

71N8-62100

SIDE COVER ASSY-LH,FR

#0063

1шт.

1

71N8-62100Y

SIDE COVER ASSY-LH,FR

#0064 - #0445

1шт.

1

74N8-62100

SIDE COVER ASSY-LH,FR

#0446

1шт.

1-1

71N8-62110

SIDE COVER WA-LH,FR

1шт.

1-2

71EE-52520

CATCH ASSY

#0063

1шт.

1-2

74N8-52520

CATCH ASSY

#0064

1шт.

1-3

71EE-53531

STOPPER-A

1шт.

1-4

S681-100400

GROMMET

#0445

1шт.

1-5

S772-024000

WEATHER STRIP

1шт.

1-6

S035-061522

BOLT-W/WASHER

2шт.

2

72N8-92200

SIDE COVER ASSY-LH,RR

#0063

1шт.

2

72N8-92200Y

SIDE COVER ASSY-LH,RR

#0064 - #0445

1шт.

2

74N8-92100

SIDE COVER ASSY-LH,RR

#0446

1шт.

2-1

72N8-92210

COVER WA-LH(RR)

1шт.

2-2

72N8-92230

SPONGE

1шт.

2-3

71EE-52520

CATCH ASSY

#0063

1шт.

2-3

74N8-52520

CATCH ASSY

#0064

1шт.

2-4

71EE-53531

STOPPER-A

1шт.

2-5

71EM-51580

CAP-STUD BOLT

8шт.

2-6

S681-100400

GROMMET

#0445

1шт.

2-7

S772-025500

WEATHER STRIP

1шт.

2-8

S035-061522

BOLT-W/WASHER

2шт.
