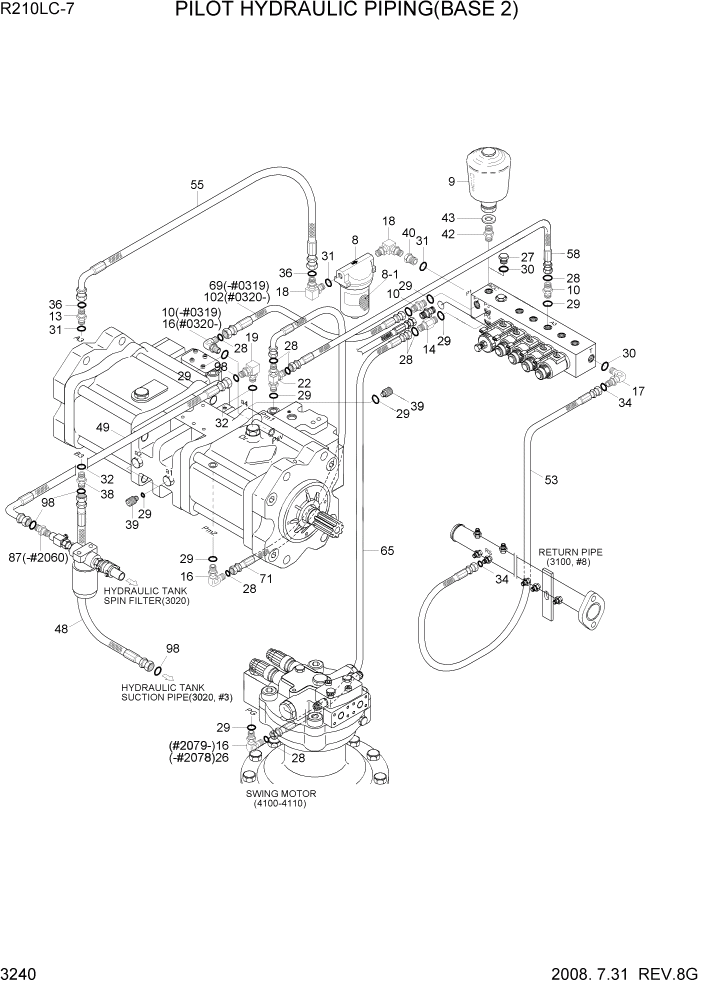

Запчасти Hyundai R210LC7 PAGE 3240 PILOT HYD PIPING(BASE 2) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

8

31E3-0017

FILTER-LINE

1шт.

8-1

31E3-0018

ELEMENT-LINE FILTER

1шт.

9

31E3-3187

ACCUMULATOR

OPT

1шт.

10

P010-110002

CONNECTOR

#0319

3шт.

10

P010-110002

CONNECTOR

#0320 - #2060

2шт.

10

X500-110001

CONNECTOR-ORFS

#2061

2шт.

12

P010-110003

CONNECTOR

#2060

1шт.

13

P010-110004

CONNECTOR

#2060

1шт.

13

X500-110003

CONNECTOR-ORFS

#2061

1шт.

14

P101-104044

CONNECTOR-LONG

#2060

1шт.

14

X511-104514

CONNECTOR-LONG,ORFS

#2061

1шт.

16

P020-110001

ELBOW-90

#0319

1шт.

16

P020-110001

ELBOW-90

#0320 - #2060

2шт.

16

X520-110001

ELBOW-90,ORFS

#2061 - #2078

2шт.

16

X520-110001

ELBOW-90,ORFS

#2079

3шт.

17

X520-110002

ELBOW-90,ORFS

#2061

1шт.

18

P020-110003

ELBOW-90

#2060

2шт.

18

X520-110003

ELBOW-90,ORFS

#2061

2шт.

19

P020-110004

ELBOW-90

#2060

1шт.

19

X520-110004

ELBOW-90,ORFS

#2061

1шт.

22

P320-040404

TEE-RUN TYPE

#2060

1шт.

22

X820-045151

TEE-R/TYPE,ORFS

#2061

1шт.

26

P030-110001

ELBOW-45

#2060

1шт.

26

X530-110001

ELBOW-45,ORFS

#2061 - #2078

1шт.

27

P220-110103

PLUG-CAP

1шт.

28

S621-011001

O-RING,ORFS

#2061

6шт.

29

S631-011004

O-RING

10шт.

30

S631-014004

O-RING

2шт.

31

S631-018004

O-RING

4шт.

32

S631-024004

O-RING

2шт.

34

S621-012001

O-RING(SEAL LOCK TYPE)

#2061

2шт.

36

S621-014001

O-RING(SEAL LOCK TYPE)

#2061

3шт.

38

P010-110005

CONNECTOR

#2060

1шт.

38

X500-110004

CONNECTOR-ORFS

#2061

1шт.

39

31EK-11130

COUPLING-SCREW

3шт.

40

31EM-20160

ADAPTER

#2060

1шт.

40

31N6-22400

ADAPTER

#2061

1шт.

42

31E9-20060

FITTING

OPT #2830

1шт.

42

31N6-24200

CONNECTOR

#2831

1шт.

43

P391-080000

WASHER-COPPER

OPT #2830

1шт.

43

X321-021001

ED-RING

#2831

1шт.

48

P610-122009

HOSE ASSY-THD 0X45

#2060

1шт.

48

P920-122009

HOSE ASSY-ORFS 0X45

#2061

1шт.

49

P620-122012

HOSE ASSY-THD 0X90

#2060

1шт.

49

P930-122012

HOSE ASSY-ORFS 0X90

#2061

1шт.

53

P420-062036

HOSE ASSY-COMP 0X90

#0034

1шт.

53

P420-062038

HOSE ASSY-COMP 0X90

#0035 - #2060

1шт.

53

X420-062038

HOSE ASSY-ORFS 0X90

#2061 - #2268

1шт.

53

P930-062038

HOSE ASSY-ORFS 0X90

#2269

1шт.

55

P400-082012

HOSE ASSY-COMPACT

#1204

1шт.

55

P420-082012

HOSE ASSY-COMP 0X90

#1205 - #2060

1шт.

55

P930-082012

HOSE ASSY-ORFS 0X90

#2061

1шт.

58

P400-042010

HOSE ASSY-COMPACT

#2060

1шт.

58

X400-042010

HOSE ASSY-ORFS 0X0

#2061 - #2268

1шт.

58

P910-042010

HOSE ASSY-ORFS 0X0

#2269

1шт.

65

P400-042052

HOSE ASSY-COMPACT

#2060

1шт.

65

X400-042052

HOSE ASSY-SYNF,ORFS(0X0)

#2061 - #2268

1шт.

65

P910-042052

HOSE ASSY-ORFS,THD(0X0)

#2269

1шт.

69

P420-042008

HOSE ASSY-COMP 0X90

#0319

1шт.

71

P420-042012

HOSE ASSY-COMP 0X90

#2060

1шт.

71

X420-042012

HOSE ASSY-ORFS 0X90

#2061 - #2268

1шт.

71

P930-042012

HOSE ASSY-ORFS 0X90

#2269 - #7199

1шт.

71

X420-042009

HOSE ASSY-ORFS 0X90

#7200

1шт.

87

P010-430019

CONNECTOR

#2060

1шт.

98

S621-018001

O-RING

#2061

4шт.

102

P400-042008

HOSE ASSY-COMPACT

#0320 - #2060

1шт.

102

X400-042008

HOSE ASSY-ORFS 0X0

#2061 - #2268

1шт.

102

P910-042008

HOSE ASSY-ORFS 0X0

#2269

1шт.
