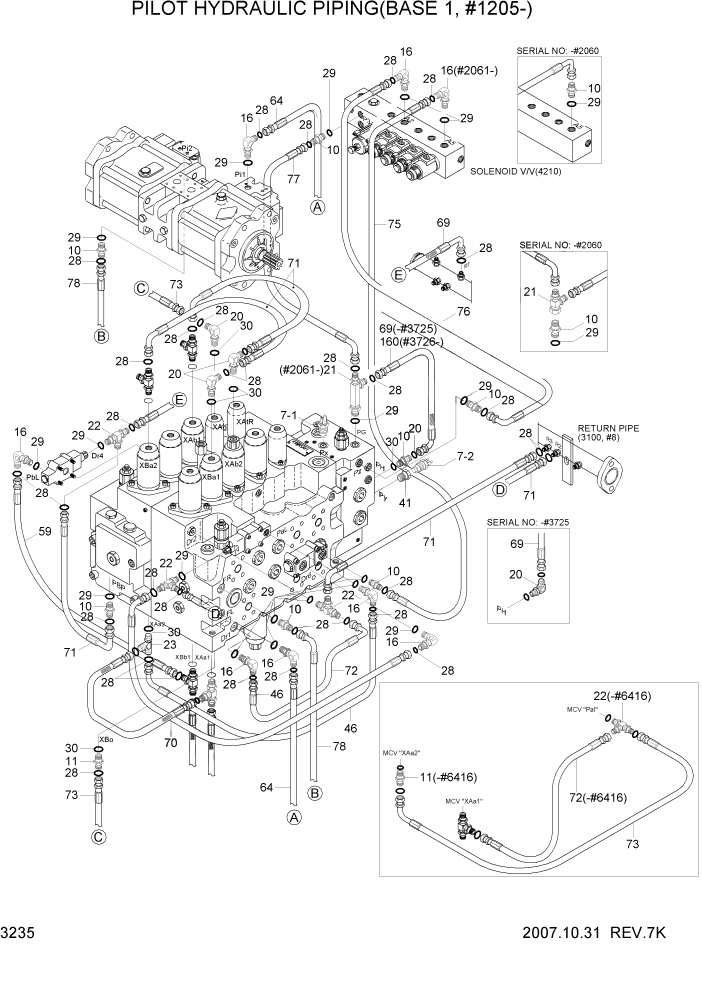

/ / / / / / / / PAGE 3235 PILOT HYDRAULIC PIPING(BASE 1, #1205-)
Запчасти Hyundai R210LC7 PAGE 3235 PILOT HYDRAULIC PIPING(BASE 1, #1205-) ГИДРАВЛИЧЕСКАЯ СИСТЕМА
*
@
PILOT HYD PIPING(BASE 1)
NOT #1205
1шт.
7-1
31E5-40500
SWITCH-PRESSURE
T/ALARM
2шт.
7-2
31E5-40500
SWITCH-PRESSURE
A/IDLE, T/ALARM
2шт.
10
P010-110002
CONNECTOR
#2060
8шт.
10
X500-110001
CONNECTOR-ORFS
#2061 - #3725
6шт.
10
X500-110001
CONNECTOR-ORFS
#3726
5шт.
11
P010-110013
CONNECTOR
#2060
2шт.
11
X500-110013
CONNECTOR-ORFS
#2061 - #6416
2шт.
11
X500-110013
CONNECTOR-ORFS
#6417
1шт.
16
P020-110001
ELBOW-90
#2060
6шт.
16
X520-110001
ELBOW-90,ORFS
#2061 - #6416
7шт.
16
X520-110001
ELBOW-90,ORFS
#6417
8шт.
20
P020-110012
ELBOW-90
#2060
4шт.
20
X520-110012
ELBOW-90,ORFS
#2061 - #3725
4шт.
20
X520-110012
ELBOW-90,ORFS
#3726
3шт.
21
31E6-0219
TEE-LONG
#2060
1шт.
21
31N4-22150
TEE-LONG,ORFS
#2061
1шт.
22
P320-040404
TEE-RUN TYPE
#2060
4шт.
22
X820-045151
TEE-R/TYPE,ORFS
#2061 - #6416
4шт.
22
X820-045151
TEE-R/TYPE,ORFS
#6417
3шт.
23
X820-065151
TEE-R/TYPE,ORFS
#6417
4шт.
28
S621-011001
O-RING(SEAL LOCK TYPE)
#2061
36шт.
29
S631-011004
O-RING
18шт.
30
S631-014004
O-RING
6шт.
41
31E5-11110
ADAPTER
1шт.
46
P420-042006
HOSE ASSY-COMP 0X90
#2060
1шт.
46
X420-042006
HOSE ASSY-SYNFLEX,ORFS
#2061 - #2268
1шт.
46
P930-042006
HOSE ASSY-ORFS 0X90
#2269 - #6416
1шт.
46
P930-042006
HOSE ASSY-ORFS 0X90
#6417
2шт.
59
P400-042014
HOSE ASSY-COMPACT
#2060
1шт.
59
X400-042014
HOSE ASSY-SYNFLEX,ORFS
#2061 - #2268
1шт.
59
P910-042014
HOSE ASSY-ORFS 0X0
#2269
1шт.
64
P400-042054
HOSE ASSY-COMPACT
#1343
1шт.
64
P600-043054
HOSE ASSY-THD
#1344 - #2060
1шт.
64
P910-043054
HOSE ASSY-ORFS 0X0
#2061
1шт.
69
P420-042008
HOSE ASSY-COMP 0X90
#2060
2шт.
69
X420-042008
HOSE ASSY-SYNFLEX,ORFS
#2061 - #2268
2шт.
69
P930-042008
HOSE ASSY-ORFS 0X90
#2269 - #3725
2шт.
69
P930-042008
HOSE ASSY-ORFS 0X90
#3726
1шт.
70
P420-042010
HOSE ASSY-COMP 0X90
#2060
1шт.
70
X420-042010
HOSE ASSY-SYNFLEX,ORFS
#2061 - #2268
1шт.
70
P930-042010
HOSE ASSY-ORFS 0X90
#2269
1шт.
71
P420-042012
HOSE ASSY-COMP 0X90
#2060
5шт.
71
X420-042012
HOSE ASSY-SYNFLEX,ORFS
#2061 - #2268
5шт.
71
P930-042012
HOSE ASSY-ORFS 0X90
#2269
5шт.
72
P420-042014
HOSE ASSY-COMP 0X90
#2060
1шт.
72
X420-042014
HOSE ASSY-SYNFLEX,ORFS
#2061 - #2268
1шт.
72
P930-042014
HOSE ASSY-ORFS 0X90
#2269 - #6416
1шт.
73
P420-042016
HOSE ASSY-COMP 0X90
#2060
2шт.
73
X420-042016
HOSE ASSY-SYNFLEX,ORFS
#2061 - #2268
2шт.
73
P930-042016
HOSE ASSY-ORFS 0X90
#2269
2шт.
75
P420-042039
HOSE ASSY-COMP 0X90
#2060
1шт.
75
X420-042039
HOSE ASSY-SYNFLEX,ORFS
#2061 - #2268
1шт.
75
P930-042039
HOSE ASSY-ORFS 0X90
#2269
1шт.
76
P420-042041
HOSE ASSY-COMP 0X90
#2060
1шт.
76
X420-042041
HOSE ASSY-SYNFLEX,ORFS
#2061 - #2268
1шт.
76
P930-042041
HOSE ASSY-ORFS 0X90
#2269
1шт.
77
P420-042046
HOSE ASSY-COMP 0X90
#2060
1шт.
77
X420-042046
HOSE ASSY-SYNFLEX,ORFS
#2061 - #2268
1шт.
77
P930-042046
HOSE ASSY-ORFS 0X90
#2269
1шт.
78
P420-042048
HOSE ASSY-COMP 0X90
#1343
1шт.
78
P620-043048
HOSE ASSY-THD 0X90
#1344 - #2060
1шт.
78
P930-043048
HOSE ASSY-ORFS 0X90
#2061
1шт.
160
P930-042006
HOSE ASSY-ORFS 0X90
#3726
1шт.
