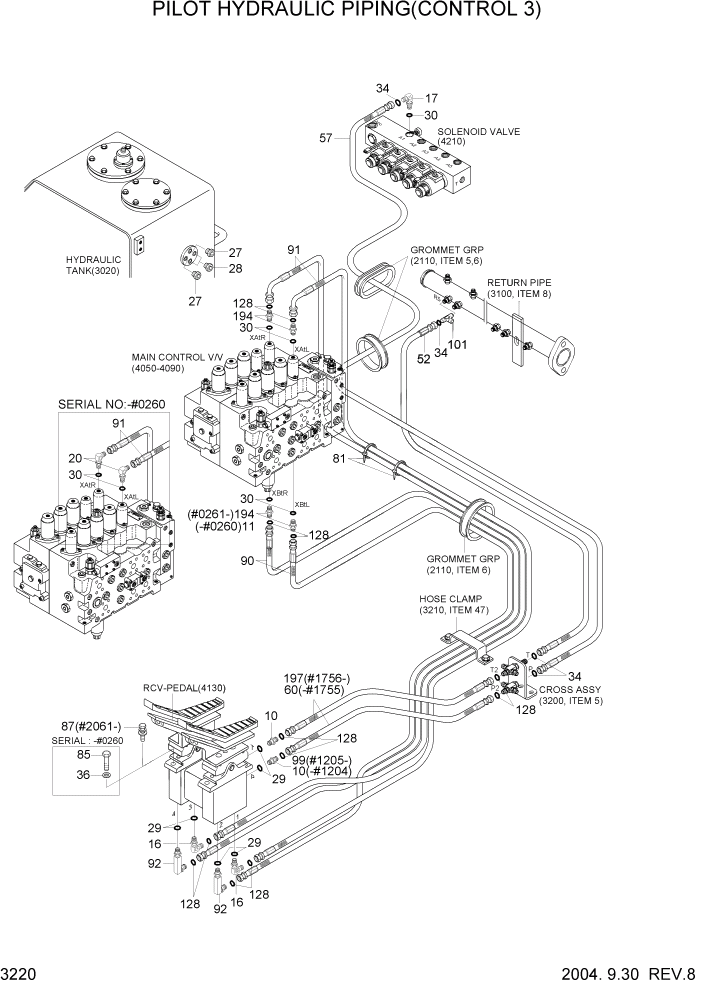

Запчасти Hyundai R210LC7 PAGE 3220 PILOT HYD PIPING(CONTROL 3) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

10

P010-110002

CONNECTOR

#1204

2шт.

10

P010-110002

CONNECTOR

#1205 - #2060

1шт.

10

X500-110001

CONNECTOR-ORFS

#2061

1шт.

11

P010-110013

CONNECTOR

#0260

2шт.

16

P020-110001

ELBOW-90

#2060

2шт.

16

X520-110001

ELBOW-90,ORFS

#2061

2шт.

17

P020-110002

ELBOW-90

#2060

1шт.

17

X520-110002

ELBOW-90,ORFS

#2061

1шт.

20

P020-110012

ELBOW-90

#0260

2шт.

27

P220-110103

PLUG-CAP

#1343

2шт.

28

P220-110104

PLUG-HEX,HEAD

#1343

2шт.

29

S631-011004

O-RING

6шт.

30

S631-014004

O-RING

5шт.

34

S621-012001

O-RING(SEAL LOCK TYPE)

#2061

4шт.

36

S403-102006

WASHER-PLAIN

#2060

4шт.

52

P420-062046

HOSE ASSY-COMP 0X90

#0319

1шт.

52

P400-042046

HOSE ASSY-COMPACT

#0320 - #1755

1шт.

52

P400-042052

HOSE ASSY-COMPACT

#1756 - #2060

1шт.

52

X400-062052

HOSE ASSY-SYNFLEX,ORFS

#2061 - #2268

1шт.

52

P910-062052

HOSE ASSY-ORFS 0X0

#2269

1шт.

57

P400-062057

HOSE ASSY-COMPACT

#1755

1шт.

57

P400-062063

HOSE ASSY-COMPACT

#1756 - #2060

1шт.

57

X400-062063

HOSE ASSY-SYNFLEX,ORFS

#2061 - #2268

1шт.

57

P910-062063

HOSE ASSY-ORFS 0X0

#2269

1шт.

60

P400-042025

HOSE ASSY-COMPACT

#0034

2шт.

60

P400-042024

HOSE ASSY-COMPACT

#0035 - #1755

2шт.

81

S551-050203

CLAMP-BAND

#1205

20шт.

85

S017-100306

BOLT-HEX

#2060

4шт.

87

S037-103026

BOLT W/WASHER-HEX

#2061

4шт.

90

P400-042062

HOSE ASSY-COMPACT

#2060

2шт.

90

X400-042062

HOSE ASSY-SYNFLEX,ORFS

#2061 - #2268

2шт.

90

P910-042062

HOSE ASSY-ORFS 0X0

#2269

2шт.

91

P400-042072

HOSE ASSY-COMPACT

#0260

2шт.

91

P420-042072

HOSE ASSY-COMP 0X90

#0261 - #2060

2шт.

91

X420-042072

HOSE ASSY-ORFS 0X90

#2061 - #2268

2шт.

91

P930-042072

HOSE ASSY-ORFS 0X90

#2269

2шт.

92

E131-0603

ELBOW-90,LONG

#2060

2шт.

92

31N6-25110

ELBOW 90-LONG,ORFS

#2061

2шт.

99

31EK-20100

FILTER-LAST GUARD

#1205 - #2060

1шт.

99

31N6-25060

FILTER-LAST GUARD

#2061

1шт.

101

31EG-90540

TEE-R/TYPE,S/NUT

#0320 - #2060

1шт.

101

X840-525252

TEE-R/TYPE,ORFS

#2061

1шт.

128

S621-011001

O-RING,ORFS

#2061

12шт.

194

31N6-22150

VALVE-SHOCKLESS

#0261 - #2060

4шт.

194

31N6-22340

VALVE-SHOCKLESS

#2061

4шт.

197

P400-042019

HOSE ASSY-COMPACT

#1756 - #2060

2шт.

197

X400-042019

HOSE ASSY-SYNFLEX,ORFS

#2061 - #2268

2шт.

197

P910-042019

HOSE ASSY-ORFS 0X0

#2269

2шт.
