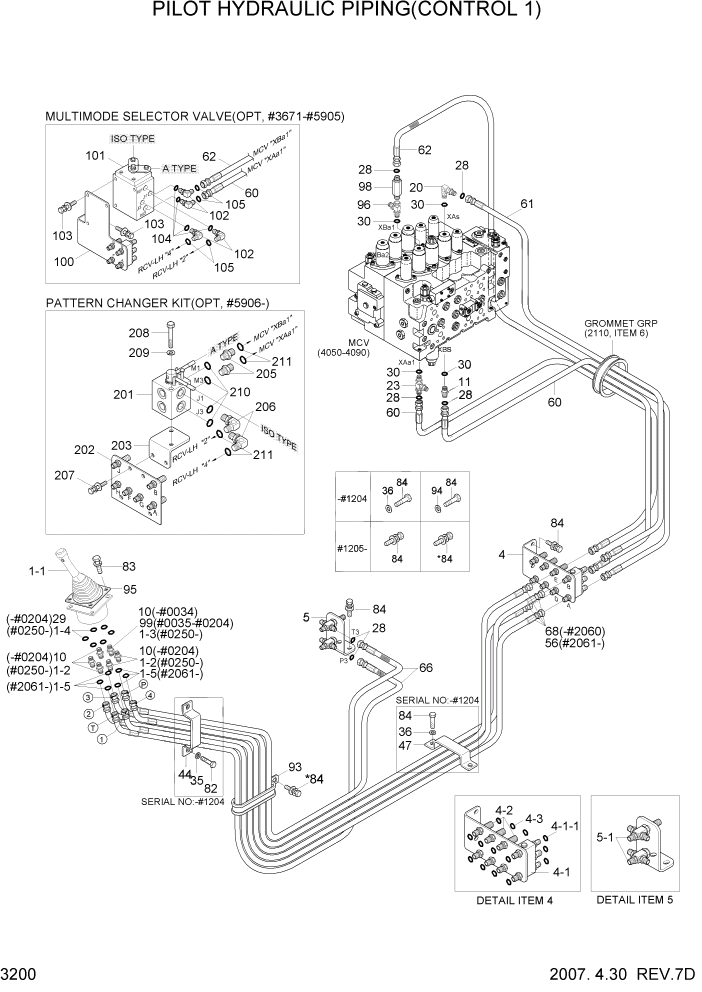

Запчасти Hyundai R210LC7 PAGE 3200 PILOT HYDRAULIC PIPING(CONTROL 1) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

1

31N6-20150

RCV SUB ASSY-LH

WITH FITTING #0250 - #0415

1шт.

1

31N6-20200

RCV SUB ASSY-LH

WITH FITTING #0416 - #2060

1шт.

1

31N6-25200

RCV SUB ASSY-LH

WITH FITTING #2061

1шт.

1-1

@

RCV LEVER-LH

NOT #0250

1шт.

1-2

P010-110002

CONNECTOR

#0250 - #2060

5шт.

1-2

X500-110001

CONNECTOR-ORFS

#2061

5шт.

1-3

31EK-20100

FILTER-LAST GUARD

#0250 - #2060

1шт.

1-3

31N6-25060

FILTER-LAST GUARD

#2061

1шт.

1-4

S631-011004

O-RING

#0250

6шт.

1-5

S621-011001

O-RING(SEAL LOCK TYPE)

#2061

6шт.

4

31N6-22011

TERMINAL ASSY

#2060

1шт.

4

31N6-25010

TERMINAL ASSY

#2061

1шт.

4-1

31EK-20310

SHUTTLE-5 PORT

#2060

1шт.

4-1

31N6-25030

SHUTTLE-5 PORT

#2061

1шт.

4-1-1

S621-011001

O-RING(SEAL LOCK TYPE)

#2061

5шт.

4-2

31E4-3033

CONNECTOR-2NUT

#2060

6шт.

4-2

X540-120001

CONNECTOR-B.H TYPE

#2061

6шт.

4-3

S621-011001

O-RING(SEAL LOCK TYPE)

#2061

12шт.

5

31N6-22021

CROSS ASSY

#0126

1шт.

5

31N6-22022

CROSS ASSY

#0127 - #1755

1шт.

5

31N4-22021

CROSS ASSY

#1756 - #2060

1шт.

5

31N6-25100

CROSS ASSY

#2061

1шт.

5-1

31ER-20030

TEE-CROSS

#0126

2шт.

5-1

31ER-20031

TEE-CROSS

#0127 - #2060

2шт.

5-1

31N6-25040

CROSS-BULKHEAD TYPE

#2061

2шт.

10

P010-110002

CONNECTOR

#0034

6шт.

10

P010-110002

CONNECTOR

#0035 - #0249

5шт.

11

P010-110013

CONNECTOR

#2060

1шт.

11

X500-110013

CONNECTOR-ORFS

#2061

1шт.

20

P020-110012

ELBOW-90

#2060

1шт.

20

X520-110012

ELBOW-90,ORFS

#2061

1шт.

23

P320-060404

TEE-RUN TYPE

#2060

1шт.

23

X820-065151

TEE-R/TYPE,ORFS

#2061

1шт.

28

S621-011001

O-RING(SEAL LOCK TYPE)

#2061

6шт.

29

S631-011004

O-RING

#0249

6шт.

30

S631-014004

O-RING

4шт.

34

S403-062006

WASHER-PLAIN

4шт.

35

S403-082006

WASHER-PLAIN

#1204

2шт.

36

S403-102006

WASHER-PLAIN

#1204

6шт.

44

31E6-20020

CLAMP-HOSE

#1204

1шт.

47

31E9-10410

CLAMP-HOSE

#1204

1шт.

56

X410-042038

HOSE ASSY-SYNFLEX,ORFS

#2061 - #2268

4шт.

56

P920-042038

HOSE ASSY-ORFS 0X45

#2269

4шт.

60

P400-042025

HOSE ASSY-COMPACT

#0034

2шт.

60

P400-042024

HOSE ASSY-COMPACT

#0035 - #2060

2шт.

60

X400-042024

HOSE ASSY-SYNFLEX,ORFS

#2061 - #2268

2шт.

60

P910-042024

HOSE ASSY-ORFS 0X0

#2269

2шт.

61

P400-042032

HOSE ASSY-COMPACT

#0034

1шт.

61

P400-042030

HOSE ASSY-COMPACT

#0035 - #2060

1шт.

61

X400-042030

HOSE ASSY-SYNFLEX,ORFS

#2061 - #2268

1шт.

61

P910-042030

HOSE ASSY-ORFS 0X0

#2269

1шт.

62

P400-042034

HOSE ASSY-COMPACT

#2060

1шт.

62

X400-042034

HOSE ASSY-SYNFLEX,ORFS

#2061 - #2268

1шт.

62

P910-042034

HOSE ASSY-ORFS 0X0

#2269

1шт.

66

P410-042026

HOSE ASSY-COMP 0X45

#2060

2шт.

66

X410-042026

HOSE ASSY-SYNFLEX,ORFS

#2061 - #2268

2шт.

66

P920-042026

HOSE ASSY-ORFS 0X45

#2269

2шт.

68

P410-042036

HOSE ASSY-COMP 0X45

#1204

4шт.

68

P410-042038

HOSE ASSY-COMP 0X45

#1205 - #2060

4шт.

82

S015-080256

BOLT-HEX

#1204

2шт.

83

S175-060256

SCREW-SOCKET RD HD

#2060

4шт.

83

S035-063046

BOLT-W/WASHER

#2061

4шт.

84

S017-100256

BOLT-HEX

#1204

7шт.

84

S037-102022

BOLT-W/WASHER

#1205 - #2060

5шт.

84

S037-102026

BOLT-W/WASHER

#2061

5шт.

93

31E7-0312

CLAMP-HOSE

1шт.

94

S411-100002

WASHER-SPRING

#1204

1шт.

95

31M6-51060

SHIM(3.0T)

#0064

1шт.

95

31M6-51061

SHIM(3.2T)

#0065

1шт.

96

31N6-22030

TEE-SWIVEL NUT

#2060

1шт.

96

X840-525151

TEE-R/TYPE,ORFS

#2061

1шт.

98

31N6-22120

VALVE-SHOCKLESS

#2060

1шт.

98

31N6-22350

VALVE-SHOCKLESS

#2061

1шт.

99

31EK-20100

FILTER-LAST GUARD

#0035 - #0249

1шт.

100

31N6-25130

TERMINAL ASSY

OPT, PATT VALVE #3671 - #5905

1шт.

101

31N6-22000

SELECTOR VV-MULTIMODE

OPT, PATT VALVE #3671 - #5905

1шт.

102

X520-110001

ELBOW-90,ORFS

OPT, PATT VALVE #3671 - #5905

3шт.

103

S037-102522

BOLT-W/WASHER

OPT, PATT VALVE #3671 - #5905

7шт.

104

S631-011004

O-RING

OPT, PATT VALVE #3671 - #5905

4шт.

105

S621-011001

O-RING(SEAL LOCK TYPE)

OPT, PATT VALVE #3671 - #5905

4шт.

200

31N6-26100

PATTERN CHANGER KIT

OPT, PATT VALVE #5906

1шт.

201

31N6-22050

SELECTOR VALVE

OPT, PATT VALVE #5906

1шт.

202

31N6-26110

TERMINAL ASSY

OPT, PATT VALVE #5906

1шт.

203

31N9-22120

BRACKET-WA

OPT, PATT VALVE #5906

1шт.

205

X500-110001

CONNECTOR-ORFS

OPT, PATT VALVE #5906

2шт.

206

X520-110001

ELBOW-90,ORFS

OPT, PATT VALVE #5906

2шт.

207

S037-102526

BOLT-W/WASHER

OPT, PATT VALVE #5906

2шт.

208

S015-080806

BOLT-HEX

OPT, PATT VALVE #5906

2шт.

209

S411-080006

WASHER-SPRING

OPT, PATT VALVE #5906

2шт.

210

S631-011004

O-RING

OPT, PATT VALVE #5906

4шт.

211

S621-011001

O-RING(SEAL LOCK TYPE)

OPT, PATT VALVE #5906

4шт.
