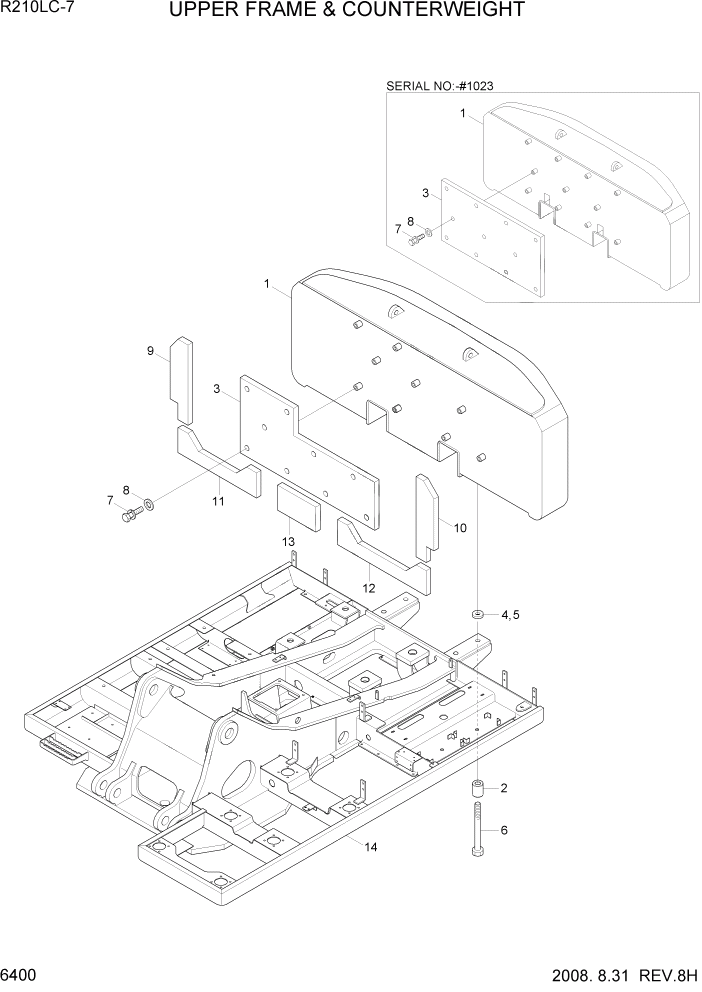

Запчасти Hyundai R210LC7 PAGE 6400 UPPER FRAME & COUNTERWEIGHT СТРУКТУРА

*

41N6-22500

COUNTERWEIGHT ASSY

STD, 3.8T #0005 - #1000

1шт.

*

41N6-24500

COUNTERWEIGHT ASSY

STD, 3.8T #1001

1шт.

*

41N6-23500

COUNTERWEIGHT ASSY

L/REACH, 5.3T #0055 - #1000

1шт.

*

41N6-25500

COUNTERWEIGHT ASSY

L/REACH, 5.3T #1001

1шт.

*

41N6-26500

COUNTERWEIGHT ASSY

OPT, 4.2T #1001

1шт.

*

41N6-28500

COUNTERWEIGHT ASSY

OPT, 4.5T #2746

1шт.

1

41N6-22002

COUNTERWEIGHT WA

STD #1000

1шт.

1

41N6-24000

COUNTERWEIGHT WA

STD, 3.8T #1001

1шт.

1

41N6-23000

COUNTERWEIGHT WA

L/REACH, 5.3T #0055 - #1000

1шт.

1

41N6-25000

COUNTERWEIGHT WA

L/REACH, 5.3T #1001

1шт.

1

41N6-26000

COUNTERWEIGHT WA

OPT, 4.2T #1001

1шт.

1

41N6-28000

COUNTERWEIGHT WA

OPT, 4.5T #2746

1шт.

3

41N6-24210

SPONGE(A)

#1023

1шт.

3

41N6-24211

SPONGE(A)

#1024

1шт.

7

S037-102552

BOLT-W/WASHER

#1023

11шт.

7

S037-102552

BOLT-W/WASHER

#1024

9шт.

8

61L1-2037

WASHER-HARDENED

#1023

11шт.

8

61L1-2037

WASHER-HARDENED

#1024

9шт.

9

41N6-22310

SPONGE(B)

1шт.

10

41N6-22320

SPONGE(C)

1шт.

11

41N6-22330

SPONGE(D)

1шт.

12

41N6-22340

SPONGE(E)

1шт.

13

41N6-22350

SPONGE(F)

1шт.

2

41N6-22201

SPACER

4шт.

4

S391-050075

SHIM-ROUND(1.0T)

5шт.

5

S392-050075

SHIM-ROUND(2.0T)

5шт.

6

S018-361352

BOLT-HEX

4шт.

14

41N6-00013

UPPER FRAME WA

STD #0041

1шт.

14

41N6-00014

UPPER FRAME WA

STD #0042 - #0264

1шт.

14

41N6-00015

UPPER FRAME WA

STD #0265 - #1000

1шт.

14

41N6-30011

UPPER FRAME WA

STD #1001 - #7171

1шт.

14

41N6-30011BG

UPPER FRAME WA

STD #7172

1шт.

14

41N6-00014

UPPER FRAME WA

STD #0042 - #0264

1шт.

14

41N6-00015

UPPER FRAME WA

STD #0265 - #1000

1шт.

14

41N6-30011

UPPER FRAME WA

STD #1001 - #7171

1шт.

14

41N6-30011BG

UPPER FRAME WA

#7172

1шт.

14

47N6-00010

UPPER FRAME WA

OPT, SCV28N #9307

1шт.

14

41N6-40010

UPPER FRAME WA

HIGH WALKER #0341 - #1023

1шт.

14

41N6-70010

UPPER FRAME WA

HIGH WALKER #1024 - #7171

1шт.

14

41N6-70010BG

UPPER FRAME WA

HIGH WALKER #7172

1шт.

14

41N6-40010

UPPER FRAME WA

HIGH WALKER #0341 - #1023

1шт.

14

41N6-70010

UPPER FRAME WA

HIGH WALKER #1024 - #7171

1шт.

14

41N6-70010BG

UPPER FRAME WA

#7172

1шт.

14

47N6-80010

UPPER FRAME WA

H/W OPT,SCV28N #9307

1шт.
