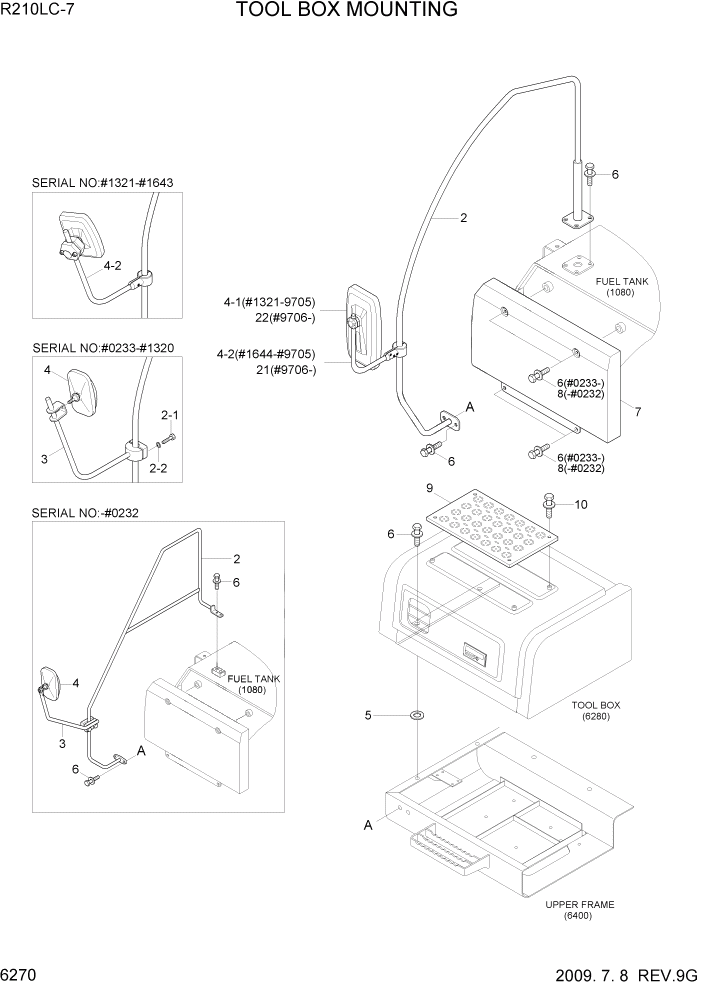

Запчасти Hyundai R210LC7 PAGE 6270 TOOL BOX MOUNTING СТРУКТУРА

2

71N8-42004

PIPE WA

#0232

1шт.

2

71N8-42005

PIPE WA

#0233 - #7001

1шт.

2

71N8-42005BG

PIPE WA

#7002

1шт.

2-1

S015-080402

BOLT-HEX

#0233 - #1320

1шт.

2-2

S411-080002

WASHER-SPRING

#0233 - #1320

1шт.

3

71EM-40900

STAY-MIRROR

#0232

1шт.

3

71N8-45000

STAY-MIRROR

#0233 - #1320

1шт.

4

E129-2000

MIRROR

#0232

1шт.

4

71N8-46000

MIRROR

#0233 - #1320

1шт.

4

71N8-48000

MIRROR & STAY ASSY-RH

#1321 - #1643

1шт.

4

71N8-48001

MIRROR & STAY ASSY-RH

#1644 - #7001

1шт.

4

71N8-48001BG

MIRROR & STAY ASSY-RH

#3072 - #4146

1шт.

4

71N8-48001BG

MIRROR & STAY ASSY-RH

#7002 - #9705

1шт.

4-1

71N8-47100

MIRROR

#1321 - #9705

1шт.

4-2

71N8-48100

STAY ASSY-RH

#1321 - #1643

1шт.

4-2

71N8-48101

STAY ASSY-RH

#1644 - #7001

1шт.

4-2

71N8-48101BG

STAY ASSY-RH

#3072 - #4146

1шт.

4-2

71N8-48101BG

STAY ASSY-RH

#7002 - #9705

1шт.

5

S390-015040

SHIM-ROUND(0.5T)

4шт.

6

S037-123556

BOLT-W/WASHER

#0232

8шт.

6

S037-122556

BOLT-W/WASHER

#0233

14шт.

7

71N6-44100

COVER-TANK FUEL

1шт.

8

S037-122056

BOLT-W/WASHER

#0232

4шт.

9

74N4-47100

FOOT BOARD WA(A)

#4177 - #9705

1шт.

10

S037-121556

BOLT-W/WASHER

#4177 - #9705

4шт.

21

71N8-48102

STAY ASSY-RH

#9706

1шт.

22

71N8-47101

MIRROR

#9706

1шт.

22

71N8-47101

MIRROR

#4147 - #9208

1шт.

22

71M8-12001

MIRROR

#9209

1шт.

23

71N8-48102BG

STAY ASSY-RH

#4147

1шт.
