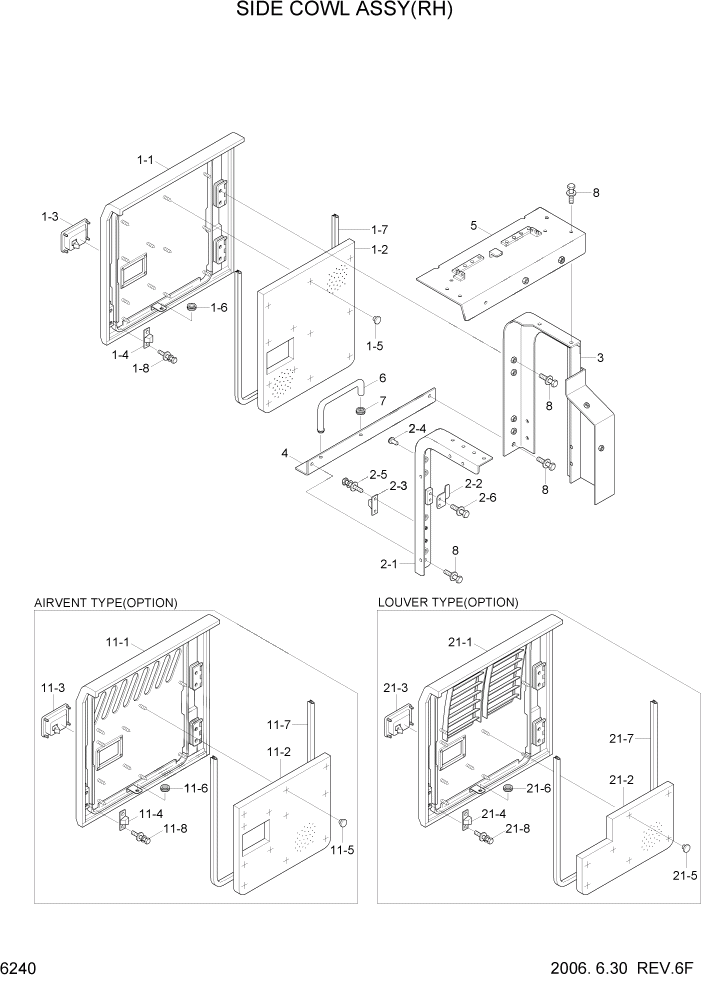

Запчасти Hyundai R210LC7 PAGE 6240 SIDE COWL ASSY(RH) СТРУКТУРА

*

71N6-53001

SIDE COWL ASSY-RH

STD #0087

1шт.

*

71N6-53002

SIDE COWL ASSY-RH

STD #0088 - #1000

1шт.

*

72N6-53001

SIDE COWL ASSY-RH

STD #1001 - #4781

1шт.

*

72N6-53001Y

SIDE COWL ASSY-RH

STD #4782

1шт.

*

71N6-63000

SIDE COWL ASSY-RH

AIRVENT #0056 - #0087

1шт.

*

71N6-63001

SIDE COWL ASSY-RH

AIRVENT #0088 - #1000

1шт.

*

72N6-63001

SIDE COWL ASSY-RH

AIRVENT #1001 - #4781

1шт.

*

72N6-63001Y

SIDE COWL ASSY-RH

AIRVENT #4782

1шт.

*

72N6-53010

SIDE COWL ASSY-RH

PRE HEATING #0494 - #4781

1шт.

*

72N6-53010Y

SIDE COWL ASSY-RH

PRE HEATING #4782

1шт.

*

72N6-83000

SIDE COWL ASSY-RH

LOUVER #3445 - #4781

1шт.

*

72N6-83000Y

SIDE COWL ASSY-RH

LOUVER #4782

1шт.

1

71N6-53102

SIDE COVER ASSY-RH

STD #0087

1шт.

1

71N6-53103

SIDE COVER ASSY-RH

STD,PRE HEATING #0088 - #4781

1шт.

1

71N6-53103Y

SIDE COVER ASSY-RH

STD,PRE HEATING #4782

1шт.

1-1

71N6-53112

COVER WA-RH

#0087

1шт.

1-1

71N6-53113

COVER WA-RH

#0088

1шт.

1-2

71N6-53132

SPONGE

1шт.

1-3

71EE-52520

CATCH ASSY

BLACK #4781

1шт.

1-3

74N8-52520

CATCH ASSY

YELLOW #4782

1шт.

1-4

71EE-53531

STOPPER-A

1шт.

1-5

71EM-51580

CAP-STUD BOLT

#0001

12шт.

1-6

S681-100400

GROMMET

1шт.

1-7

S772-017200

WEATHER STRIP

#0034

1шт.

1-7

S772-025500

WEATHER STRIP

#0035

1шт.

1-8

S035-061622

BOLT-W/WASHER

2шт.

2

71N6-53260

SUPPORT ASSY-RH(FR)

#0001

1шт.

2-1

71N6-53270

SUPPORT WA-RH(FR)

1шт.

2-2

71N8-52492

PLATE-LOCK

1шт.

2-3

71EE-53540

STOPPER-B

1шт.

2-4

71EH-13150

BUMPER-RUBBER

1шт.

2-5

S035-062022

BOLT-W/WASHER

2шт.

2-6

S037-122052

BOLT-W/WASHER

2шт.

3

71N6-53202

SUPPORT WA-RH(RR)

STD, AIRVENT #0087

1шт.

3

71N6-53203

SUPPORT WA-RH(RR)

STD, AIRVENT #0088 - #1000

1шт.

3

72N6-53200

SUPPORT WA-RH(RR)

STD, AIRVENT #1001

1шт.

3

72N6-53900

SUPPORT WA-RH(RR)

P/HEAT, LOUVER #0494

1шт.

4

71N6-53301

SUPPORT-RH(BOTTOM)

#0087

1шт.

4

71N6-53302

SUPPORT-RH(BOTTOM)

#0088

1шт.

5

71N6-53402

HOOD WA-PUMP

#1000

1шт.

5

72N6-53400

HOOD WA-PUMP

#1001

1шт.

6

71N8-52950

STAY-SIDE COVER

1шт.

7

S681-100400

GROMMET

1шт.

8

S037-122552

BOLT-W/WASHER

10шт.

11

71N6-73100

SIDE COVER ASSY-RH

AIRVENT #0056 - #0087

1шт.

11

71N6-73101

SIDE COVER ASSY-RH

AIRVENT #0088 - #4781

1шт.

11

71N6-73101Y

SIDE COVER ASSY-RH

AIRVENT #4782

1шт.

11-1

71N6-73110

COVER WA-RH

#0056 - #0087

1шт.

11-1

71N6-73111

COVER WA-RH

#0088

1шт.

11-2

71N6-73130

SPONGE

#0056

1шт.

11-3

71EE-52520

CATCH ASSY

BLACK #0056 - #4781

1шт.

11-3

74N8-52520

CATCH ASSY

YELLOW #4782

1шт.

11-4

71EE-53531

STOPPER-A

#0056

1шт.

11-5

71EM-51580

CAP-STUD BOLT

#0056

10шт.

11-6

S681-100400

GROMMET

#0056

1шт.

11-7

S772-025500

WEATHER STRIP

#0056

1шт.

11-8

S035-061622

BOLT-W/WASHER

#0056

2шт.

21

72N6-83100

SIDE COVER ASSY-RH

#3445 - #4781

1шт.

21

72N6-83100Y

SIDE COVER ASSY-RH

#4782

1шт.

21-1

72N6-83110

COVER WA-RH

1шт.

21-2

72N6-82230

SPONGE

1шт.

21-3

71EE-52520

CATCH ASSY

BLACK #4781

1шт.

21-3

74N8-52520

CATCH ASSY

YELLOW #4782

1шт.

21-4

71EE-53531

STOPPER-A

1шт.

21-5

71EM-51580

CAP-STUD BOLT

8шт.

21-6

S681-100400

GROMMET

1шт.

21-7

S772-025500

WEATHER STRIP

1шт.

21-8

S035-061622

BOLT-W/WASHER

2шт.
