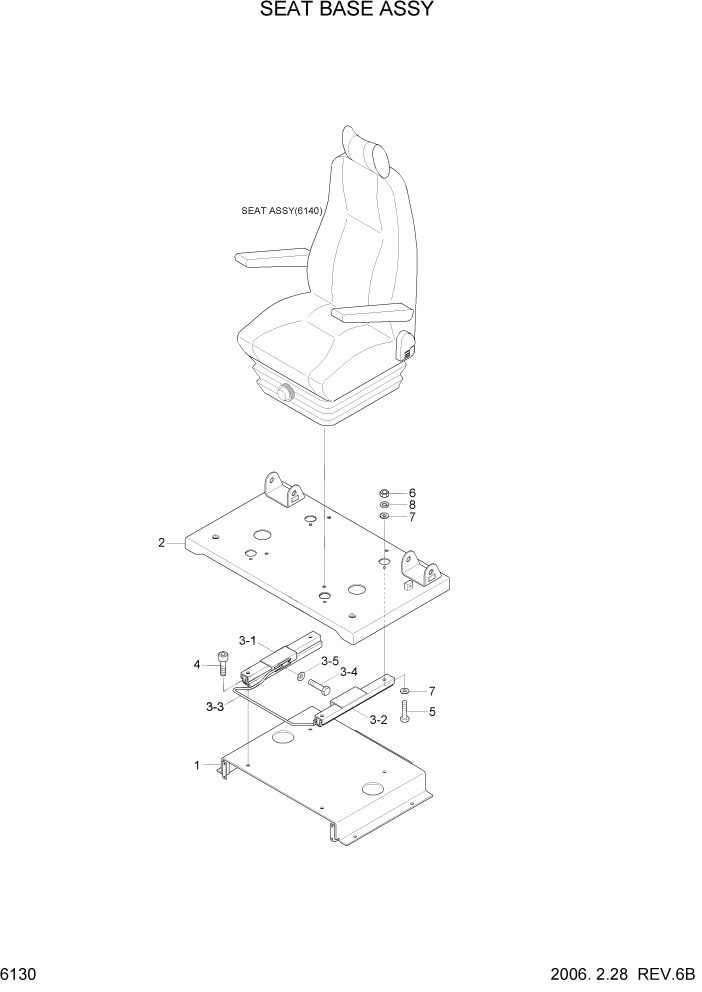

Запчасти Hyundai R210LC7 PAGE 6130 SEAT BASE ASSY СТРУКТУРА

*

71N6-20011

SEAT BASE ASSY

#0495

1шт.

*

71N4-20011

SEAT BASE ASSY

#0496 - #1512

1шт.

*

71N4-20012

SEAT BASE ASSY

#1513

1шт.

1

71N6-21011

SEAT BASE-LOW

1шт.

2

71N6-21071

SEAT BASE-UP

#0495

1шт.

2

71N6-21072

SEAT BASE-UP

#0496 - #1512

1шт.

2

71N6-21073

SEAT BASE-UP

#1513 - #4191

1шт.

2

71N6-21074

SEAT BASE-UP

#4192

1шт.

3

71N6-21620

SLIDING RAIL ASSY

#0495

1шт.

3

71N4-21620

SLIDING RAIL ASSY

#0496 - #1512

1шт.

3

71N4-21720

SLIDING RAIL ASSY

#1513

1шт.

3-1

71N6-21670

SLIDE ASSY-RH

1шт.

3-2

71N6-21680

SLIDE ASSY-LH

1шт.

3-3

71N6-21690

LEVER ASSY

#0495

1шт.

3-3

71N4-21690

LEVER ASSY

#0496

1шт.

3-4

S015-060126

BOLT-HEX

4шт.

3-5

S403-062006

WASHER-PLAIN

4шт.

4

S107-080306

BOLT-SOCKET

#0495

4шт.

4

S109-080306

BOLT-SOCKET

#0496

4шт.

5

S017-080256

BOLT-HEX

4шт.

6

S205-081006

NUT-HEX

4шт.

7

S403-082006

WASHER-PLAIN

8шт.

8

S411-080006

WASHER-SPRING

4шт.
