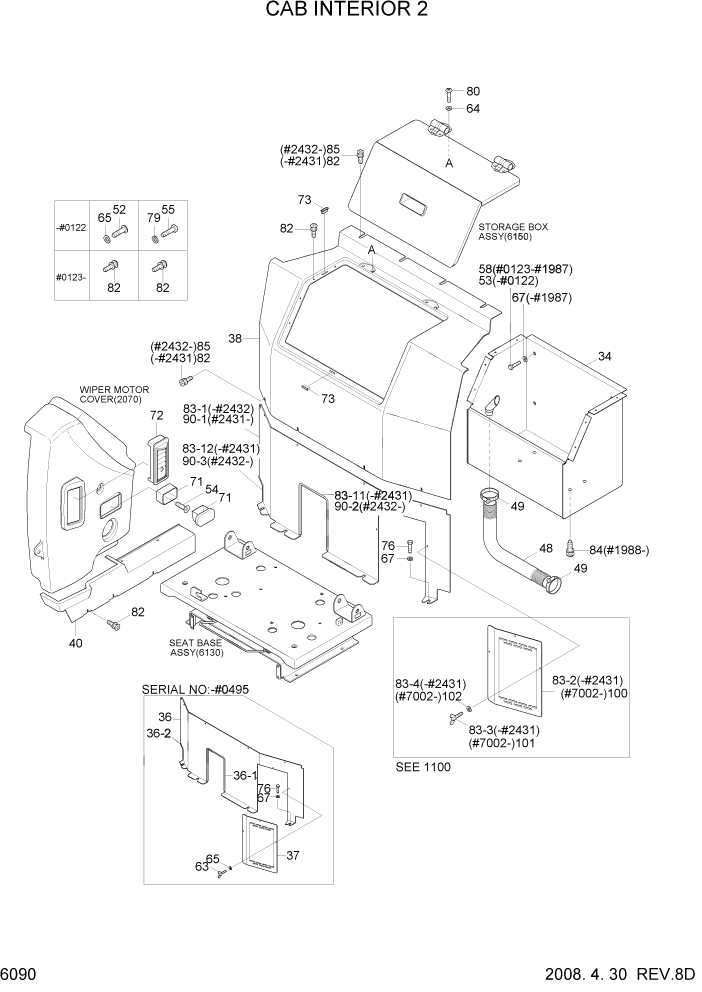

Запчасти Hyundai R210LC7 PAGE 6090 CAB INTERIOR 2 СТРУКТУРА

*

@

CAB INTERIOR

NOT

1шт.

34

71N6-20270

STORAGE BOX WA

#0122

1шт.

34

71N6-20271

STORAGE BOX WA

#0123 - #1987

1шт.

34

71N6-20470

STORAGE BOX ASSY

#1988

1шт.

36

71N6-20290

AIRCON COVER-LOW

#0023

1шт.

36

71N6-20291

AIRCON COVER-LOW

#0024 - #0495

1шт.

36-1

S791-016054

GROMMET-PLATE

#0495

1шт.

36-2

S791-016010

GROMMET-PLATE

#0495

1шт.

37

71N6-20300

COVER-FILTER

#0122

1шт.

37

71N6-20301

COVER-FILTER

#0123 - #0495

1шт.

38

71N6-20311

AIRCON COVER-UP

1шт.

40

71N6-20331

COVER-DEF,HOSE

1шт.

48

71N6-20360

HOSE-STORAGE BOX

W/ AC & HEATER

1шт.

49

71N6-20370

CLIP-HOSE

W/ AC & HEATER

2шт.

52

S161-060206

SCREW-CROSS R/ROUND

#0122

4шт.

53

S017-100306

BOLT-HEX

#0122

4шт.

54

S141-040166

SCREW-FLAT HD

2шт.

55

S015-060166

BOLT-HEX

#0122

3шт.

58

S017-100256

BOLT-HEX

#0123 - #1987

4шт.

63

S091-060166

BOLT-WING

#0495

3шт.

64

S403-052006

WASHER-PLAIN

4шт.

65

S403-062006

WASHER-PLAIN

#0122

15шт.

65

S403-062006

WASHER-PLAIN

#0123 - #0495

3шт.

67

S403-102006

WASHER-PLAIN

#1987

8шт.

67

S403-102006

WASHER-PLAIN

#1988

4шт.

71

E171-1176

ASHTRAY

1шт.

72

71N6-20380

AIR NOZZLE

1шт.

73

71N6-20390

MAGNETIC

3шт.

76

S017-100166

BOLT-HEX

4шт.

79

S403-065006

WASHER-PLAIN

#0122

2шт.

80

S161-050206

SCREW-CROSS R/ROUND

4шт.

82

S132-061676

SCREW-W/WASHER

#0123 - #2431

21шт.

82

S132-061676

SCREW-W/WASHER

#2432

14шт.

83

71N6-20460

A/CON COVER-LOW ASSY

#0496 - #1987

1шт.

83

71N6-20461

A/CON COVER-LOW ASSY

#1988 - #2431

1шт.

83-1

71N6-20291

AIRCON COVER-LOW

#0496 - #1987

1шт.

83-1

71N6-20292

AIRCON COVER-LOW

#1988 - #2431

1шт.

83-11

S791-016054

GROMMET-PLATE

#0496 - #2431

1шт.

83-12

S791-016010

GROMMET-PLATE

#0496 - #2431

1шт.

83-2

71N6-20301

COVER-FILTER

SEE 1110 #0496 - #2431

1шт.

83-3

S091-060156

BOLT-WING

#0496 - #2431

3шт.

83-4

S403-062006

WASHER-PLAIN

#0496 - #2431

3шт.

84

S037-102026

BOLT-W/WASHER

#1988

4шт.

85

S132-062546

SCREW-W/WASHER

#2432 - #2857

8шт.

85

S132-062076

SCREW-W/WASHER

#2858

8шт.

90

71N6-20292

AIRCON COVER-LOW

#2432

1шт.

90-1

71N6-21760

PLATE

#2432

1шт.

90-2

S791-016054

GROMMET-PLATE

#2432

1шт.

90-3

S791-016010

GROMMET-PLATE

#2432

1шт.

100

11N6-90340

FILTER-REC

STD-CABIN, W/AC #7002

1шт.

101

S091-060156

BOLT-WING

#7002

3шт.

102

S403-06200B

WASHER-PLAIN

#7002

1шт.
