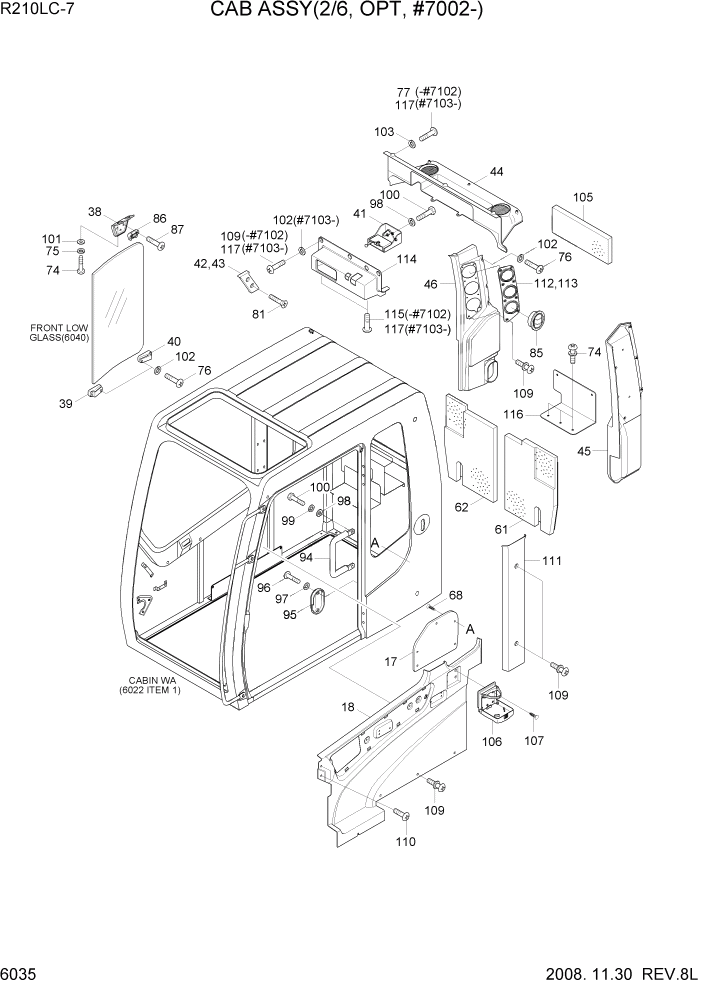

Запчасти Hyundai R210LC7 PAGE 6035 CAB ASSY(2/6, OPT, #7002-) СТРУКТУРА

*

@

CAB ASSY

NOT #7002

1шт.

*

@

CAB ASSY

NOT #7002

1шт.

17

71N6-02790

WALL TRIM-LH

1шт.

18

76N6-02800

WALL TRIM-RH

1шт.

38

71N6-03061

HOLDER

1шт.

39

71N6-03071

HOLDER

1шт.

40

71N6-03081

HOLDER

1шт.

41

71N6-03091

LATCH ASSY

1шт.

42

71N6-03101

STOPPER-LH

1шт.

43

71N6-03111

STOPPER-RH

1шт.

44

73N6-20060

SPEAKER COVER

1шт.

45

76N6-03130

DUCT ASSY-LH

1шт.

46

76N6-03140

DUCT ASSY-RH

1шт.

61

71N6-03210

INSULATION FOAM

1шт.

62

71N6-03220

INSULATION FOAM

1шт.

68

E171-1310

PLUG

11шт.

74

S035-082026

BOLT-W/WASHER

#7102

2шт.

74

S035-082026

BOLT-W/WASHER

#7103

5шт.

75

S411-080006

WASHER-SPRING

2шт.

76

S161-060206

SCREW-CROSS R/ROUND

12шт.

77

S161-060166

SCREW-CROSS ROUND

#7102

6шт.

81

S141-060206

SCREW-FLAT HD

4шт.

85

71N6-03300

AIR VENT

6шт.

86

71N6-03311

HOLDER

1шт.

87

S161-080256

SCREW-CROSS R/ROUND

3шт.

94

71N6-20341

RAIL-HAND

1шт.

95

71N6-03601

COVER-BACK LATCH

1шт.

96

S161-050166

SCREW-CROSS R/ROUND

2шт.

97

S411-050006

WASHER-SPRING

2шт.

98

S411-100006

WASHER-SPRING

5шт.

99

S403-10200B

WASHER-PLAIN

2шт.

100

S017-100206

BOLT-HEXAGON HEAD

5шт.

101

S403-08200B

WASHER-PLAIN

2шт.

102

S403-06200B

WASHER-PLAIN

#7102

12шт.

102

S403-06200B

WASHER-PLAIN

#7103

15шт.

103

S411-060006

WASHER-SPRING

6шт.

105

71N6-03660

SPONGE

1шт.

106

71M8-20870

HOLDER-CUP

1шт.

107

S141-040166

SCREW-FLAT HD

4шт.

38

71N6-03061

HOLDER

1шт.

109

S132-061256

SCREW-W/WASHER

27шт.

110

S151-050126

SCREW-TAPPING

2шт.

111

73N6-20050

PILLAR COVER-RH

1шт.

112

73N6-20220

REAR DUCT COVER-LH

1шт.

113

73N6-20210

REAR DUCT COVER-RH

1шт.

114

73N6-20070

RADIO COVER

1шт.

115

76N6-03160

FASTENER ASSY

2шт.

116

76N6-00021

BRACKET

#7103

1шт.

117

S002-06015B

SCREW-TRUS HEAD

#7103

11шт.

61

71N6-03210

INSULATION FOAM

1шт.

62

71N6-03220

INSULATION FOAM

1шт.

68

E171-1310

PLUG-HEADLINER

11шт.

74

S015-080206

BOLT-HEX

2шт.

75

S411-080006

WASHER-SPRING

2шт.

76

S162-060206

SCREW-CROSS R/ROUND

12шт.

77

S162-060166

SCREW-CROSS R/ROUND

6шт.

81

S141-060206

SCREW-FLAT HD

4шт.

85

71N6-03300

AIR VENT

6шт.

86

71N6-03311

HOLDER

1шт.

87

S161-080256

SCREW-RD HD

3шт.

90

E371-1128

MIRROR-ROOM

1шт.

94

71N6-20341

RAIL-HAND

1шт.

95

71N6-03601

COVER-BACK LATCH

1шт.

96

S161-050166

SCREW-CROSS R/ROUND

2шт.

97

S411-050006

WASHER-SPRING

2шт.

98

S411-100006

WASHER-SPRING

5шт.

99

S403-10200B

WASHER-PLAIN

2шт.

100

S017-100206

BOLT-HEX

5шт.

101

S403-08200B

WASHER-PLAIN

2шт.

102

S403-06200B

WASHER-PLAIN

12шт.

103

S411-060006

WASHER-SPRING

6шт.

104

71N6-03660

SPONGE

1шт.

105

71M8-20870

HOLDER-CUP

1шт.

106

S141-040166

SCREW-FLAT HD

4шт.

109

S132-061256

SCREW-W/WASHER

27шт.

110

S151-050126

SCREW-TAPPING

1шт.

111

73N6-20050

PILLAR COVER-RH

1шт.

112

73N6-20220

REAR DUCT COVER-LH

1шт.

113

73N6-20210

REAR DUCT COVER-RH

1шт.

114

73N6-20070

RADIO COVER

1шт.

115

76N6-03160

FASTENER

2шт.
