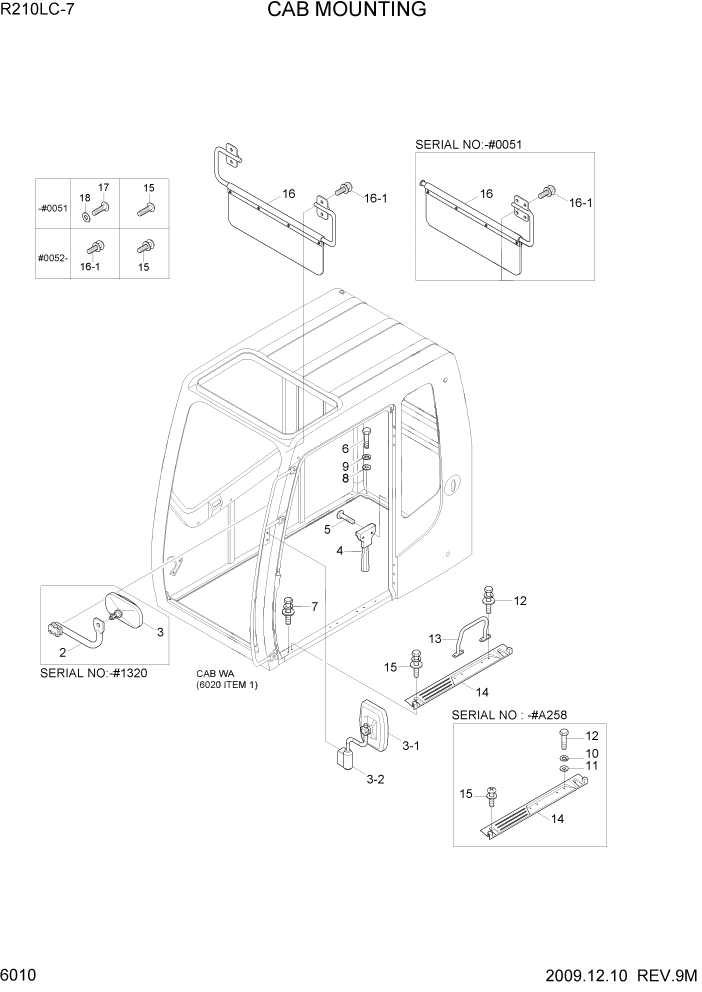

Запчасти Hyundai R210LC7 PAGE 6010 CAB MOUNTING СТРУКТУРА

2

71N6-03551

STAY-CAB

#0249

1шт.

2

71N6-03552

STAY-CAB

#0250 - #1320

1шт.

3

E129-2000

MIRROR

#0249

1шт.

3

71N8-46000

MIRROR

#0250 - #1320

1шт.

3

71N8-47000

MIRROR & STAY ASSY-LH

#1321 - #7171

1шт.

3

71N8-47000BG

MIRROR & STAY ASSY-LH

#7172

1шт.

3

71N8-47001BG

MIRROR & STAY ASSY-LH

#4147

1шт.

3

71N8-47000BG

MIRROR & STAY ASSY-LH

UPGRADE CABIN #7002

1шт.

3

71N8-47001BG

MIRROR & STAY ASSY-LH

UPGRADE CABIN #4147

1шт.

3-1

71N8-47100

MIRROR

#1321

1шт.

3-1

71N8-47101

MIRROR

#4147

1шт.

3-2

71N8-47200

STAY ASSY-LH

#1321 - #7171

1шт.

3-2

71N8-47200BG

STAY ASSY

#7172

1шт.

4

71E1-60340

HAMMER-SAFETY

1шт.

5

S161-040106

SCREW-CROSS R/ROUND

#0249

2шт.

5

S141-040166

SCREW-FLAT HD

#0250

2шт.

6

S017-120706

BOLT-HEX

#0001

8шт.

7

S037-122526

BOLT-W/WASHER

1шт.

8

S403-122006

WASHER-PLAIN

8шт.

9

S411-120006

WASHER-SPRING

8шт.

10

S411-100006

WASHER-SPRING

4шт.

11

S403-102006

WASHER-PLAIN

4шт.

12

S017-100256

BOLT-HEX

4шт.

12

S037-102526

BOLT-W/WASHER

4шт.

13

71N6-03560

RAIL-HAND

1шт.

14

71N6-10270

PLATE

1шт.

14

71N6-10271

PLATE

1шт.

15

S161-050106

SCREW-CROSS R/ROUND

#0051

2шт.

15

S131-051646

SCREW-W/WASHER

#0052

2шт.

15

S037-101526

BOLT-W/WASHER

2шт.

16

71N6-03630

SUN VISOR ASSY

#0023

1шт.

16

71N6-03631

SUN VISOR ASSY

#0024 - #0051

1шт.

16

71N6-03632

SUN VISOR ASSY

#0052

1шт.

16-1

S132-060856

SCREW-W/WASHER

#0052

4шт.

17

S161-060086

SCREW-CROSS R/ROUND

#0051

4шт.

18

S411-060006

WASHER-SPRING

#0051

4шт.
