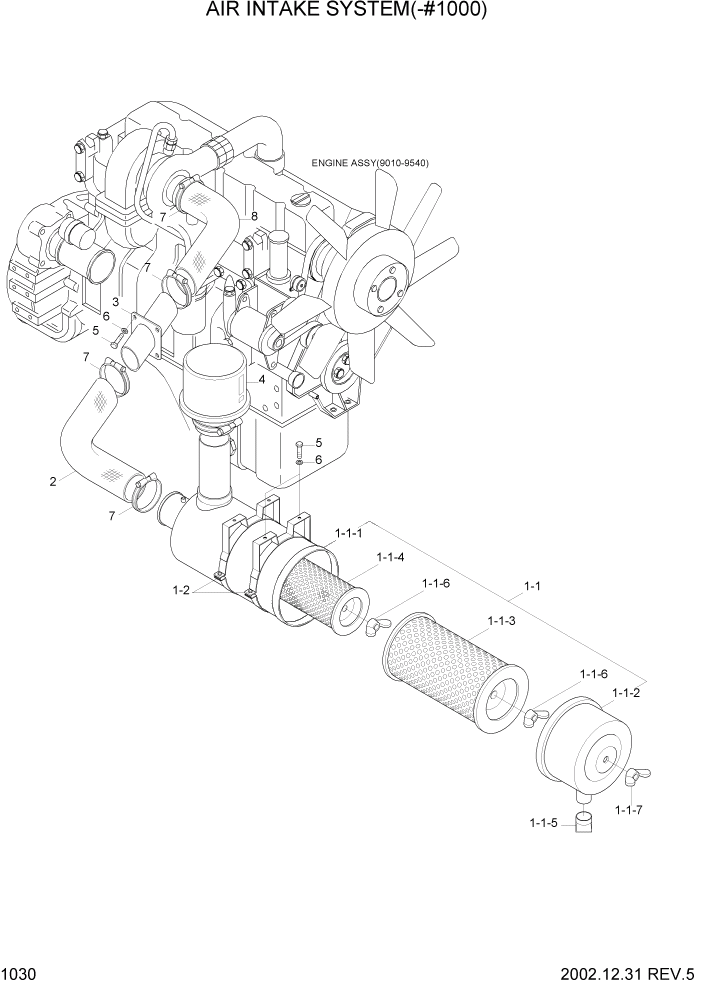

Запчасти Hyundai R210LC7 PAGE 1030 AIR INTAKE SYSTEM(-#1000) СИСТЕМА ДВИГАТЕЛЯ

*

@

AIR INTAKE SYSTEM

NOT #1000

1шт.

1

11N6-20010

AIR CLEANER ASSY

SEE 6220 #0055

1шт.

1-1

11N6-20100

AIR CLEANER ASSY

SEE 6220 #0055

1шт.

1-1-1

11N6-20110

BODY-AIR CLEANER

SEE 6220 #0055

1шт.

1-1-2

11N6-20120

CAP-AIR CLEANER

SEE 6220 #0055

1шт.

1-1-3

11EM-21041

ELEMENT-PRIMARY

SEE 6220 #0055

1шт.

1-1-4

11EM-21051

ELEMENT-SAFETY

SEE 6220 #0055

1шт.

1-1-5

E211-2105

VALVE-VACUUM

SEE 6220 #0055

1шт.

1-1-6

11EM-21060

NUT-WING

SEE 6220 #0055

2шт.

1-1-7

11EM-21070

NUT-WING

SEE 6220 #0055

1шт.

1-2

14EA-23060

CLAMP-BAND

SEE 6220 #0055

2шт.

2

11N6-20020

HOSE-AIR INTAKE

1шт.

3

11N6-20030

PIPE-AIR INTAKE

1шт.

4

14L3-00920

PRE CLEANER

1шт.

5

S015-080202

BOLT-HEX

SEE 6220 #0055

8шт.

5

S015-080202

BOLT-HEX

SEE 6220 #0056

4шт.

6

S403-082002

WASHER-PLAIN

SEE 6220 #0055

8шт.

6

S403-082002

WASHER-PLAIN

SEE 6220 #0056

4шт.

7

11E6-21240

CLAMP-HOSE

4шт.

8

11N6-20040

HOSE-AIR INTAKE

1шт.
