Запчасти Hyundai R180LC7 PAGE 8100 DECALS ДРУГИЕ ЧАСТИ

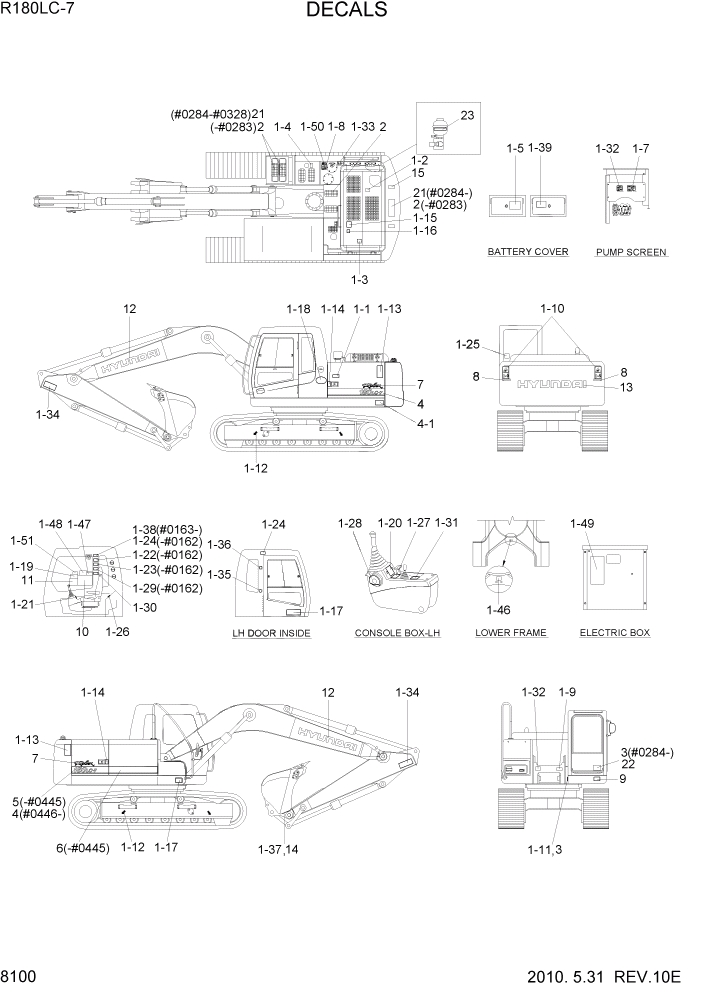

Схема запчастей Hyundai R180LC7 - PAGE 8100 DECALS ДРУГИЕ ЧАСТИ

Артикул

Название

Примечание

Количество

1

91N4-00102

DECAL KIT

#0007

1шт.

1

91N4-00103

DECAL KIT

#0008 - #0162

1шт.

1

91N4-00104

DECAL KIT

#0163 - #0234

1шт.

1

91N4-00105

DECAL KIT

#0235 - #0283

1шт.

1

91N4-00106

DECAL KIT

#0284 - #0328

1шт.

1

91N4-00107

DECAL KIT

#0329 - #0352

1шт.

1

91N4-00108

DECAL KIT

#0353 - #0486

1шт.

1

91N4-00110

DECAL KIT

#0487

1шт.

1

91N4-00300

DECAL KIT

UPGRADE CABIN #0445 - #0482

1шт.

1

91N4-00301

DECAL KIT

UPGRADE CABIN #0483 - #0486

1шт.

1

91N4-00302

DECAL KIT

UPGRADE CABIN #0487

1шт.

1-1

91N6-01102

DECAL-A/CLEANER FILTER

1шт.

1-2

91N6-01111

DECAL-TURBO COVER

1шт.

1-3

91N6-01121

DECAL-RADIATOR CAP

1шт.

1-4

91N6-01131

FUELING

#0328

1шт.

1-4

91M8-01140

DECAL-FUELING

#0329

1шт.

1-5

91N6-02120

DECAL-BATT ACCIDENT

1шт.

1-7

91N6-03102

DECAL-HYD OIL LEVEL

1шт.

1-8

91N6-03111

DECAL-OIL LUBRICATION

1шт.

1-9

91N6-03121

DECAL-RED GEAR GREASE

1шт.

1-1

91N6-04122

KEEP CLEAR/RR

2шт.

1-11

91E1-14110

NAME PLATE

#0486

1шт.

1-11

91LM-14110

DECAL-PIN PLATE

#0487

1шт.

1-11

91E1-14130

NAME PLATE

EUROPE

1шт.

1-12

91N6-05110

DECAL-SLING IDEOGRAM

4шт.

1-13

91N6-07102

DECAL-KEEP CLEAR

2шт.

1-14

91N6-07112

DECAL-STAY FIX

2шт.

1-15

91N6-07121

DECAL-SHEARING

1шт.

1-16

91N6-07131

DECAL-NO STEP

1шт.

1-17

91N6-07141

DECAL-TRANSPORTING

1шт.

1-18

91E1-27110

DECAL-LOW EMI ENGINE

1шт.

1-19

91N6-07201

DECAL-CNTL IDEOGRAM

MONO BOOM

1шт.

1-19

91N6-07500

CONTROL IDEOGRAM

ADJUST BOOM

1шт.

1-2

91N6-07212

DECAL-CNTL IDEOGRAM,LH

1шт.

1-2

92N6-07210

CONTROL IDEOGRAM-LH

UPGRADE CABIN #0445

1шт.

1-21

91N6-07221

DECAL-CNTL IDEOGRAM,RH

1шт.

1-21

92N6-07220

CONTROL IDEOGRAM-RH

UPGRADE CABIN #0445

1шт.

1-22

91N6-07231

REF OPERATOR MANUAL

#0162

1шт.

1-23

91N6-07241

MAX HEIGHT

#0162

1шт.

1-24

91N6-07252

DECAL-SAFETY FR WINDOW

#0162

2шт.

1-24

91N6-07252

DECAL-SAFETY FR WINDOW

#0163

1шт.

1-25

91N6-07261

DECAL-ALTERNATE EXIT

1шт.

1-26

91N6-07272

DECAL-AIRCON FILTER

1шт.

1-27

91N6-07301

CONSOLE BOX TILTING

1шт.

1-27

92N6-07300

CONSOLE BOX TILTING

UPGRADE CABIN #0445 - #0482

1шт.

1-27

92N6-07510

CONSOLE BOX TILTING

UPGRADE CABIN #0483

1шт.

1-28

91N6-07311

DECAL-SAFETY LEVER

1шт.

1-28

92N6-07310

DECAL-SAFETY LEVER

UPGRADE CABIN #0445

1шт.

1-29

91N6-07320

INTERFERENCE

#0162

1шт.

1-3

91N6-07330

DECAL-LOCKING CLAMP

1шт.

1-31

91N6-07340

IDEOGRAM

1шт.

1-32

91N6-03130

DECAL-HIGH PRESS HOSE

2шт.

1-33

91N6-03140

DECAL-FALLING

1шт.

1-34

91N6-06110

DECAL-KEEP CLEAR-ATT

2шт.

1-35

91N6-07280

DECAL-HAMMER

1шт.

1-36

91N6-07290

DECAL-FIRE

1шт.

1-37

91N6-06410

NAME PLATE-BUCKET

#0008

1шт.

1-38

91N6-07370

DECAL-CABIN RH PILLAR

#0163

1шт.

1-39

91LB-01350

DECAL-ECM CONNECTOR

#0235

1шт.

1-46

91N6-05120

DECAL-TIE

#0284

1шт.

1-47

91N6-07390

DECAL-TURBOCHARGER

#0284

1шт.

1-48

91N6-07400

DECAL-M/CONTROL,CAB

#0353

1шт.

1-49

91N6-07410

DECAL-MACHINE CNTL

#0353

1шт.

1-5

91Q6-03230

DECAL-FUEL SHUT OFF

#0487

1шт.

1-51

91Q4-07180

DECAL-WATER SEPARATOR

#0487

1шт.

2

91E1-26300

DECAL-STEP TREAD

#0283

8шт.

2

91E1-26300

DECAL-STEP TREAD

#0284 - #0328

3шт.

3

91EK-12010

RIVET

#0283

4шт.

3

91EK-12010

RIVET

#0284

8шт.

4

91N5-18110

MODEL NAME-LH

R180LC-7 #0445

1шт.

4

91N5-19110

MODEL NAME

#0446

2шт.

4

91N5-18210

MODEL NAME-LH

R180NLC-7 #0081 - #0445

1шт.

4

91N5-19210

MODEL NAME

#0446

2шт.

4

91N5-18310

MODEL NAME-LH

R180LCD-7 #0040 - #0445

1шт.

4

91N5-19310

MODEL NAME

#0446

2шт.

5

91N5-18121

MODEL NAME-RH/REAR

R180LC-7 #0445

1шт.

5

91N5-18220

MODEL NAME-RH/REAR

R180NLC-7 #0445

1шт.

5

91N5-18320

MODEL NAME-RH/REAR

R180LCD-7 #0445

1шт.

6

91N5-17220

DECAL-M/NAME, RH/FR

#0445

1шт.

7

91N6-17140

ROBEX LOGO

2шт.

8

91N6-04101

KEEP CLEAR-REF

#0347

2шт.

8

91N6-04170

REFLECTING

#0348

2шт.

9

91N6-22120

NOISE LEVEL-LWA

EUROPE #0101

1шт.

9

91N6-22110

DECAL-NOISE LWA/101DB

EUROPE #0102

1шт.

10

91N5-17160

SERVICE INSTRUCTION

#0039

1шт.

10

91N5-17161

SERVICE INSTRUCTION

#0040 - #0056

1шт.

10

91N5-17162

SERVICE INSTRUCTION

#0057 - #0173

1шт.

10

91N5-17163

SERVICE INSTRUCTION

#0174 - #0486

1шт.

10

91N5-17164

SERVICE INSTRUCTION

#0487

1шт.

11

91N5-18410

LIFTING CHART

5.1BM+2.6AM #0001

1шт.

11

91N5-18420

LIFTING CHART

5.1BM+2.2AM #0001

1шт.

11

91N5-18440

LIFTING CHART

5.1BM+3.1AM #0001

1шт.

11

91N5-18510

LIFTING CHART-ADJUST

5.1BM+2.6AM #0001

1шт.

11

91N5-18520

LIFTING CHART-ADJUST

5.1BM+2.2AM #0001

1шт.

11

91N5-18540

LIFTING CHART-ADJUST

5.1BM+3.1AM #0001

1шт.

11

91N5-18610

LIFTING CHART-LCD

5.1BM+2.6AM #0040

1шт.

11

91N5-18620

LIFTING CHART-LCD

5.1BM+2.2AM #0040

1шт.

11

91N5-18640

LIFTING CHART-LCD

5.1BM+3.1AM #0040

1шт.

11

91N5-18650

LIFTING CHART-ADJ,LCD

5.1BM+2.6AM #0040

1шт.

11

91N5-18660

LIFTING CHART-ADJ,LCD

5.1BM+2.2AM #0040

1шт.

11

91N5-18680

LIFTING CHART-ADJ,LCD

5.1BM+3.1AM #0040

1шт.

11

91N5-18710

LIFTING CHART-NLC

5.1BM+2.6AM #0081

1шт.

11

91N5-18720

LIFTING CHART-NLC

5.1BM+2.2AM #0081

1шт.

11

91N5-18740

LIFTING CHART-NLC

5.1BM+3.1AM #0081

1шт.

11

91N5-18810

LIFTING CHART-ADJ,NLC

5.1BM+2.6AM #0081

1шт.

11

91N5-18820

LIFTING CHART-ADJ,NLC

5.1BM+2.2AM #0081

1шт.

11

91N5-18830

LIFTING CHART-ADJ,NLC

5.1BM+3.1AM #0081

1шт.

12

91N6-21090

DECAL-TRADE MARK

2шт.

13

91N6-21110

TRADE MARK

1шт.

15

91N6-04140

DECAL-LIFTING EYE

#0284

1шт.

21

91N6-27510

DECAL-SAFETY

#0284 - #0328

3шт.

21

91N6-27510

DECAL-SAFETY

#0329

1шт.

22

91N6-01280

FOPS FOG PLATE

#0284

1шт.

23

91N6-03200

DECAL-ACCUMULATOR

#0459

1шт.

Выбрано товаров: 114
