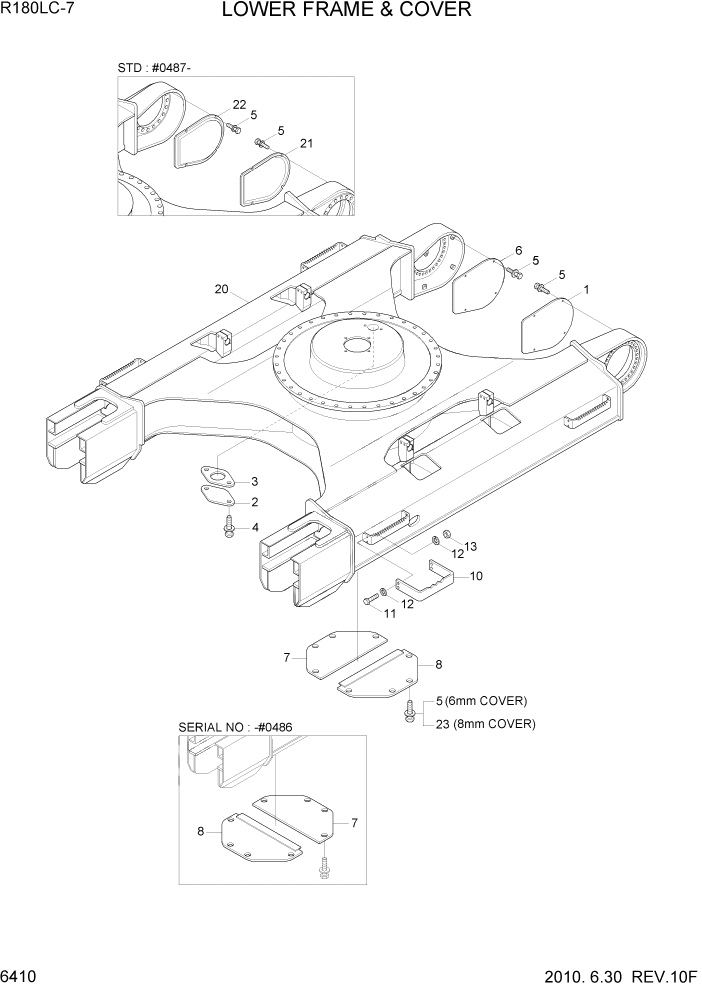

Запчасти Hyundai R180LC7 PAGE 6410 LOWER FRAME & COVER СТРУКТУРА

1

51N6-11112

COVER WA-T/MOTOR,LH

STD, 6MM #0445

1шт.

1

51N6-11112BG

COVER WA-T/MOTOR,LH

STD, 6MM #0446 - #0486

1шт.

1

51N6-11112BG

COVER WA-T/MOTOR,LH

OPT, 6MM #0487

1шт.

2

41N6-10100

COVER

1шт.

2

41N6-10100BG

COVER

#0446

1шт.

3

41E9-1306

SEAL

1шт.

4

S037-102052

BOLT-W/WASHER

#0450

2шт.

4

S037-102556

BOLT-W/WASHER

#0451

2шт.

5

S037-123552

BOLT-W/WASHER

16шт.

5

S037-124556

BOLT-W/WASHER

OPT, ADDITION #0427

8шт.

6

51N6-11122

COVER WA-T/MOTOR,RH

STD, 6MM #0445

1шт.

6

51N6-11122BG

COVER WA-T/MOTOR,RH

STD, 6MM #0446 - #0486

1шт.

6

51N6-11122BG

COVER WA-T/MOTOR,RH

OPT, 6MM #0487

1шт.

7

51N6-11211

COVER-BOTTOM(A)

STD, 6MM #0445

1шт.

7

51N6-11211BG

COVER-BOTTOM(A)

STD, 6MM #0446

1шт.

7

51N6-11230

COVER-BOTTOM(A)

OPT, 8MM #0427 - #0445

1шт.

7

51N6-11230BG

COVER-BOTTOM(A)

OPT, 8MM #0446

1шт.

8

51N6-11221

COVER-BOTTOM(B)

STD, 6MM #0445

1шт.

8

51N6-11221BG

COVER-BOTTOM(B)

STD, 6MM #0446

1шт.

8

51N6-11240

COVER-BOTTOM(B)

OPT, 8MM #0427 - #0445

1шт.

8

51N6-11240BG

COVER-BOTTOM(B)

OPT, 8MM #0446

1шт.

10

51N6-02640

BOARD-FOOT

OPT, 700mm #0001 - #0445

4шт.

10

51N6-02640BG

BOARD-FOOT

#0446

4шт.

10

51N6-02650

BOARD-FOOT

OPT, 800mm #0001 - #0445

4шт.

10

51N6-02650BG

BOARD-FOOT

#0446

4шт.

11

S017-160552

BOLT-HEX

16шт.

12

S441-160002

WASHER-HARDENED

32шт.

13

S207-161002

NUT-HEX

16шт.

20

51N5-12011

LOWER FRAME WA

R180LC-7

1шт.

20

51N5-14010

LOWER FRAME WA

R180LCD-7 #0040

1шт.

20

51N5-15010

LOWER FRAME WA

R180NLC-7 #0081

1шт.

21

51Q6-11130BG

COVER WA-T/MOTOR,LH

STD, 4MM #0487

1шт.

22

51Q6-11140BG

COVER WA-T/MOTOR,RH

STD, 4MM #0487

1шт.

23

S037-124556

BOLT-W/WASHER

#0427

8шт.
