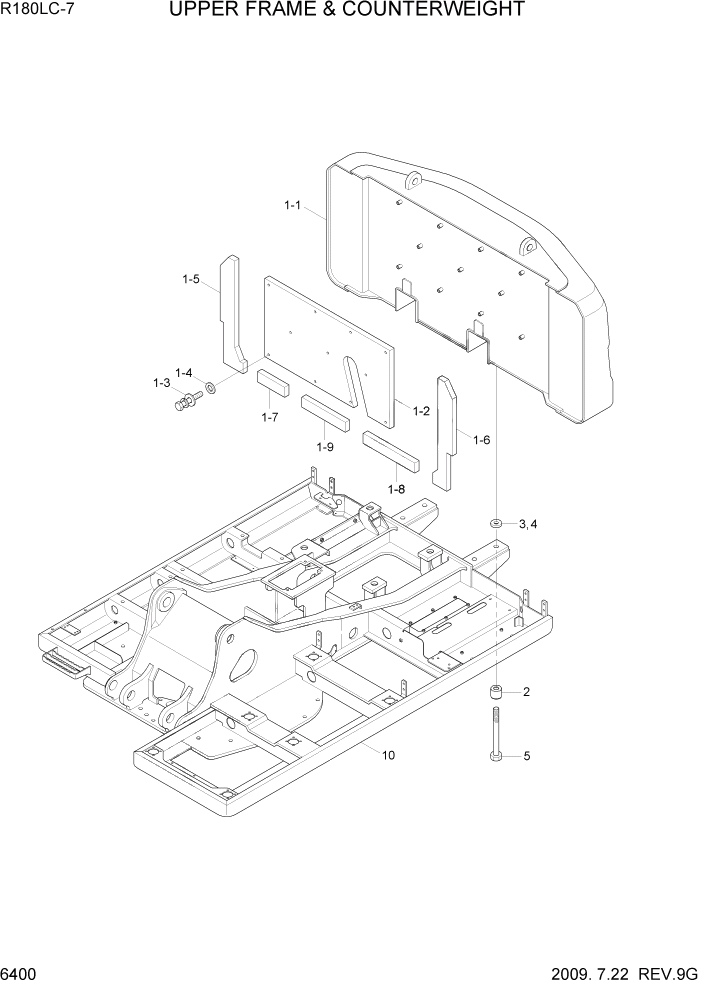

Запчасти Hyundai R180LC7 PAGE 6400 UPPER FRAME & COUNTERWEIGHT СТРУКТУРА

1

41N5-23501

COUNTERWEIGHT ASSY

STD, 2950kg #0056

1шт.

1

41N5-23502

COUNTERWEIGHT ASSY

STD, 2950kg #0057

1шт.

1

41N5-27000

COUNTERWEIGHT ASSY

OPT, 3300kg #0336

1шт.

1-1

41N5-22000

COUNTERWEIGHT WA

STD, 2950kg #0056

1шт.

1-1

41N5-22001

COUNTERWEIGHT WA

STD, 2950kg #0057

1шт.

1-1

41N5-27010

COUNTERWEIGHT WA

OPT, 3300kg #0336

1шт.

1-2

41N5-22212

SPONGE

#0056

1шт.

1-2

41N5-22213

SPONGE

#0057

1шт.

1-3

S037-102552

BOLT-W/WASHER

11шт.

1-4

61L1-2037

WASHER-HARDENED

11шт.

1-5

41N5-22310

SPONGE(B)

1шт.

1-6

41N5-22320

SPONGE(C)

1шт.

1-7

41N5-22330

SPONGE(D)

1шт.

1-8

41N5-22340

SPONGE(E)

1шт.

1-9

41N5-22350

SPONGE(F)

1шт.

2

41N5-22200

SPACER

#0268

4шт.

2

41N5-22201

SPACER

#0269

4шт.

3

S391-050075

SHIM-ROUND(1.0T)

5шт.

4

S392-050075

SHIM-ROUND(2.0T)

5шт.

5

S017-301202

BOLT-HEX

#0268

4шт.

5

S017-301302

BOLT-HEX

#0269

4шт.

10

41N5-00012

UPPER FRAME WA

#0056

1шт.

10

41N5-00013

UPPER FRAME WA

#0057 - #0445

1шт.

10

41N5-00013BG

UPPER FRAME WA

#0446 - #0494

1шт.

10

41N5-00014

UPPER FRAME WA

#0495

1шт.
