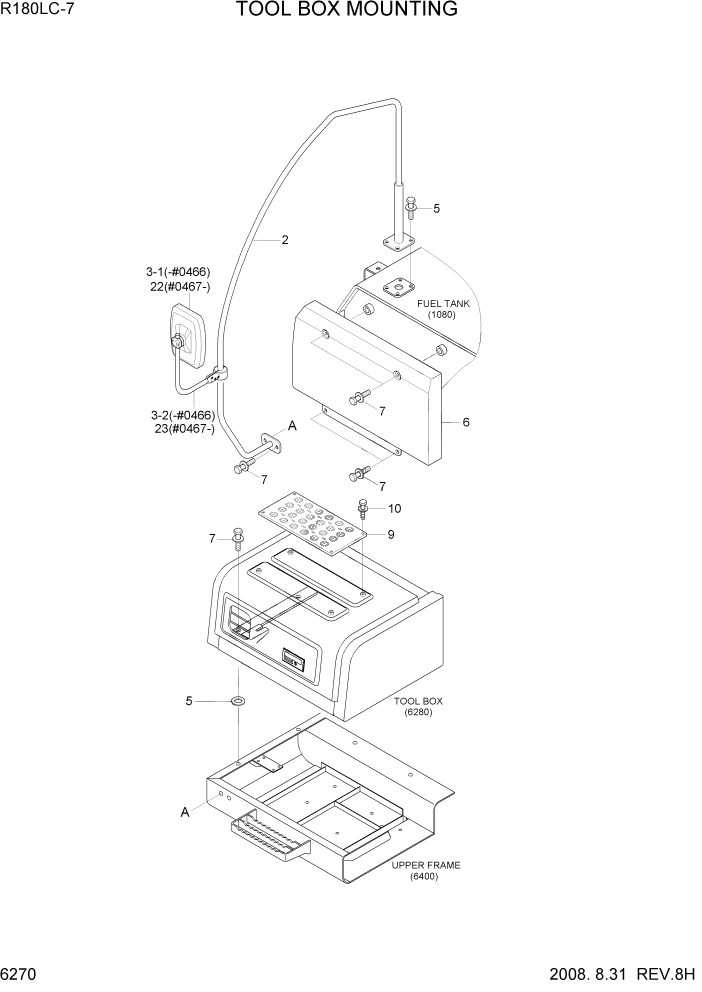

Запчасти Hyundai R180LC7 PAGE 6270 TOOL BOX MOUNTING СТРУКТУРА

2

71N8-42005

PIPE WA

#0445

1шт.

2

71N8-42005BG

PIPE WA

#0446

1шт.

3

71N8-48000

MIRROR & STAY ASSY-RH

#0007

1шт.

3

71N8-48001

MIRROR & STAY ASSY-RH

#0008 - #0445

1шт.

3

71N8-48001BG

MIRROR & STAY ASSY-RH

#0446 - #0466

1шт.

3-1

71N8-47100

MIRROR

#0466

1шт.

3-2

71N8-48100

STAY ASSY-RH

#0007

1шт.

3-2

71N8-48101

STAY ASSY-RH

#0008 - #0445

1шт.

3-2

71N8-48101BG

STAY ASSY-RH

#0446 - #0466

1шт.

5

S390-015040

SHIM-ROUND(0.5T)

4шт.

6

71N5-44100

COVER-FUEL TANK

1шт.

7

S037-122052

BOLT-W/WASHER

14шт.

9

74N4-47100

FOOT BOARD WA(A)

#0329 - #0428

1шт.

9

74N5-47100

FOOT BOARD WA(A)

#0429

1шт.

10

S037-121552

BOLT-W/WASHER

#0329

4шт.

22

71N8-47101

MIRROR

#0467

1шт.

23

71N8-48102BG

STAY ASSY-RH

#0467

1шт.
