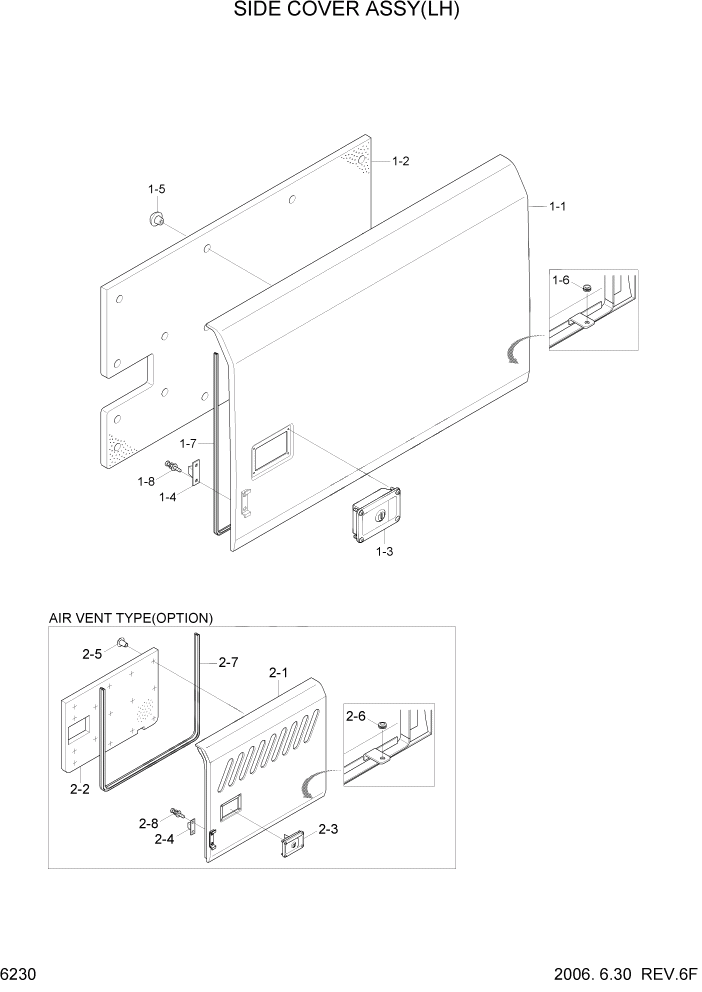

Запчасти Hyundai R180LC7 PAGE 6230 SIDE COVER ASSY(LH) СТРУКТУРА

*

@

SIDE COWL ASSY-LH

NOT

1шт.

1

71N5-52101

SIDE COVER ASSY-LH

STD #0310

1шт.

1

71N5-52101Y

SIDE COVER ASSY-LH

STD #0311

1шт.

1-1

71N5-52111

SIDE COVER WA-LH

1шт.

1-2

71N5-52131

SPONGE-S/COVER(LH)

1шт.

1-3

71EE-52520

CATCH ASSY

BLACK #0310

1шт.

1-3

74N8-52520

CATCH ASSY

YELLOW #0311

1шт.

1-4

71EE-53531

STOPPER-A

1шт.

1-5

71EM-51580

CAP-STUD BOLT

12шт.

1-6

S681-100400

GROMMET

1шт.

1-7

S772-028700

WEATHER STRIP

1шт.

1-8

S035-061522

BOLT-W/WASHER

2шт.

2

71N5-82101

SIDE COVER ASSY-LH

AIR VENT #0310

1шт.

2

71N5-82101Y

SIDE COVER ASSY-LH

AIR VENT #0311

1шт.

2-1

71N5-82110

SIDE COVER WA-LH

#0300

1шт.

2-1

71N5-82111

SIDE COVER WA-LH

#0301

1шт.

2-2

71N5-82131

SPONGE-S/COVER

1шт.

2-3

71EE-52520

CATCH ASSY

BLACK #0310

1шт.

2-3

74N8-52520

CATCH ASSY

YELLOW #0311

1шт.

2-4

71EE-53531

STOPPER-A

1шт.

2-5

71EM-51580

CAP-STUD BOLT

#0300

12шт.

2-5

71EM-51580

CAP-STUD BOLT

#0301

15шт.

2-6

S681-100400

GROMMET

1шт.

2-7

S772-028700

WEATHER STRIP

1шт.

2-8

S035-061522

BOLT-W/WASHER

2шт.
