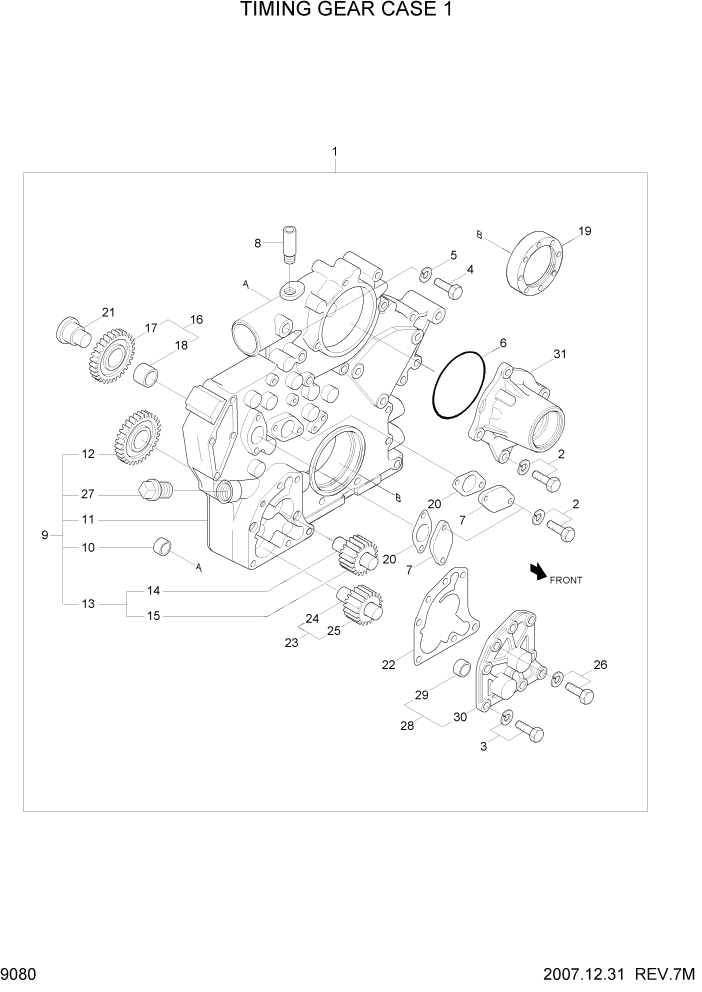

Запчасти Hyundai R160LC7A PAGE 9080 TIMING GEAR CASE 1 ДВИГАТЕЛЬ БАЗА

1

@

CASE ASSY-GEAR

NOT

1шт.

2

XJAF-00230

BOLT-W/WASHER

6шт.

3

XJAF-00222

BOLT-W/WASHER

3шт.

4

XJAF-00223

PLUG-DRAIN

1шт.

5

XJAF-00224

WASHER-SEALING

1шт.

6

XJAF-00225

O-RING

1шт.

7

XJAF-00226

COVER

2шт.

8

XJAF-00227

JOINT

1шт.

9

@

BODY ASSY

NOT

1шт.

10

XJAF-02024

CAP-SEALING

1шт.

11

@

CASE-TIMING GEAR

NOT

1шт.

12

XJAF-02296

GEAR-O/P DRIVE

1шт.

13

XJAF-00233

GEAR ASSY-DRIVEN

INCL 14,15 #0001

1шт.

14

@

SHAFT

NOT

1шт.

15

@

GEAR-OIL PUMP

NOT

1шт.

16

XJAF-02298

GEAR ASSY-OIL PUMP

INCL 17,18

1шт.

N17

@

GEAR-OIL PUMP IDLER

NOT #0001

1шт.

18

@

BUSHING

NOT

1шт.

19

XJAF-00237

SEAL-OIL

1шт.

20

XJAF-00238

GASKET-COVER TIMING

2шт.

21

XJAF-01104

SPINDEL

1шт.

22

XJAF-00234

GASKET

1шт.

23

XJAF-00219

GEAR ASSY-DRIVEN

INCL 24,25 #0001

1шт.

24

@

SHAFT

NOT

1шт.

25

@

GEAR-OIL PUMP

NOT

1шт.

26

XJAF-02300

BOLT-W/WASHER

1шт.

27

XJAF-02511

PLUG-TAPERED

#0001

1шт.

28

XJAF-00235

COVER ASSY

1шт.

29

XJAF-02301

PIN-DOWEL

2шт.

30

@

COVER-OIL PUMP

NOT #0001

1шт.

31

XJAF-02487

WATER PUMP ASSY

#0001

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
