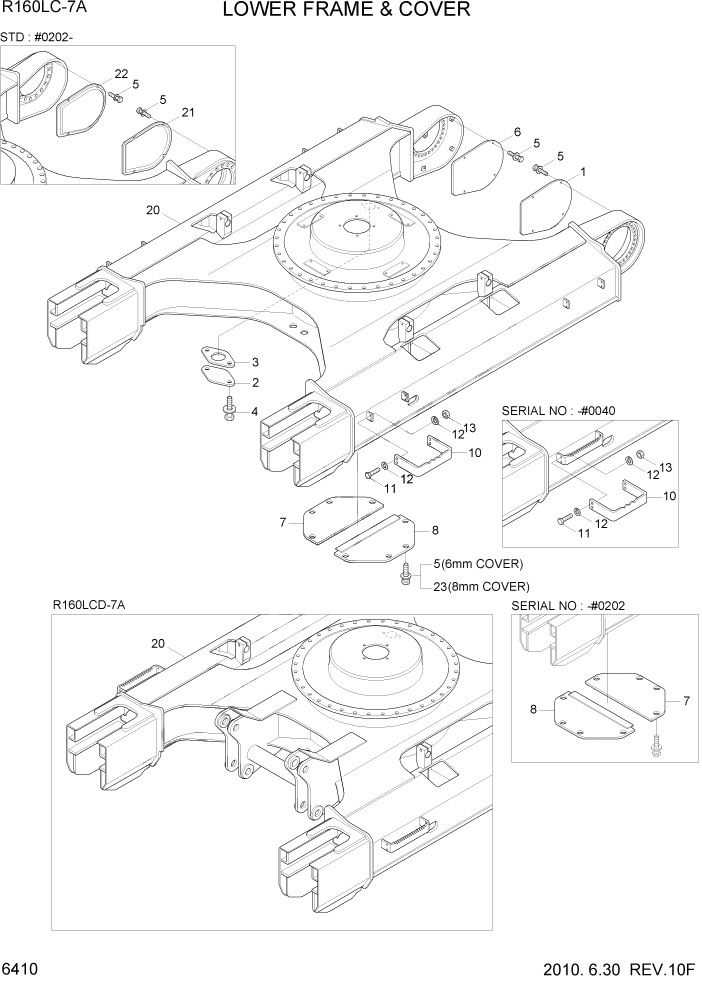

Запчасти Hyundai R160LC7A PAGE 6410 LOWER FRAME & COVER СТРУКТУРА

1

51N6-11112BG

COVER WA-T/MOTOR,LH

STD, 6MM #0201

1шт.

1

51N6-11112BG

COVER WA-T/MOTOR,LH

OPT, 6MM #0202

1шт.

2

41N6-10100BG

COVER

#0073

1шт.

2

41N6-10100

COVER

#0074

1шт.

3

41E9-1306

SEAL

1шт.

4

S037-102056

BOLT-W/WASHER

#0919

2шт.

4

S037-102556

BOLT-W/WASHER

#0920

2шт.

5

S037-123556

BOLT-W/WASHER

16шт.

5

S037-124556

BOLT-W/WASHER

OPT, ADDITION #0021

8шт.

6

51N6-11122BG

COVER WA-T/MOTOR,RH

STD, 6MM #0201

1шт.

6

51N6-11122BG

COVER WA-T/MOTOR,RH

OPT, 6MM #0202

1шт.

7

51N6-11211BG

COVER-BOTTOM(A)

STD, 6MM

1шт.

7

51N6-11230BG

COVER-BOTTOM(A)

OPT, 8MM #0021

1шт.

8

51N6-11221BG

COVER-BOTTOM(B)

STD, 6MM

1шт.

8

51N6-11240BG

COVER-BOTTOM(B)

OPT, 8MM #0021

1шт.

10

51N6-02640BG

BOARD-FOOT

#0040

4шт.

10

51N6-02600BG

BOARD-FOOT

500MM SHOE #0041

4шт.

10

51N5-02640BG

FOOT BOARD

600MM SHOE #0041

4шт.

10

51N5-02650BG

FOOT BOARD

700MM SHOE #0041

4шт.

11

S017-16055D

BOLT-HEX

#0040

16шт.

11

S017-120506

BOLT-HEX

#0041

16шт.

12

S441-160006

WASHER-HARDENED

#0040

32шт.

12

S441-12000B

WASHER-HARDENED

#0041

32шт.

13

S207-161006

NUT-HEX

#0040

16шт.

13

S205-12100B

NUT-HEX

#0041

16шт.

20

53N5-02010

LOWER FRAME WA

R160LC-7A

1шт.

20

53N5-04010

LOWER FRAME WA

R160LCD-7A

1шт.

21

51Q6-11130BG

COVER WA-T/MOTOR,LH

STD, 4MM #0202

1шт.

22

51Q6-11140BG

COVER WA-T/MOTOR,RH

STD, 4MM #0202

1шт.

23

S037-124556

BOLT-W/WASHER

#0021

8шт.
