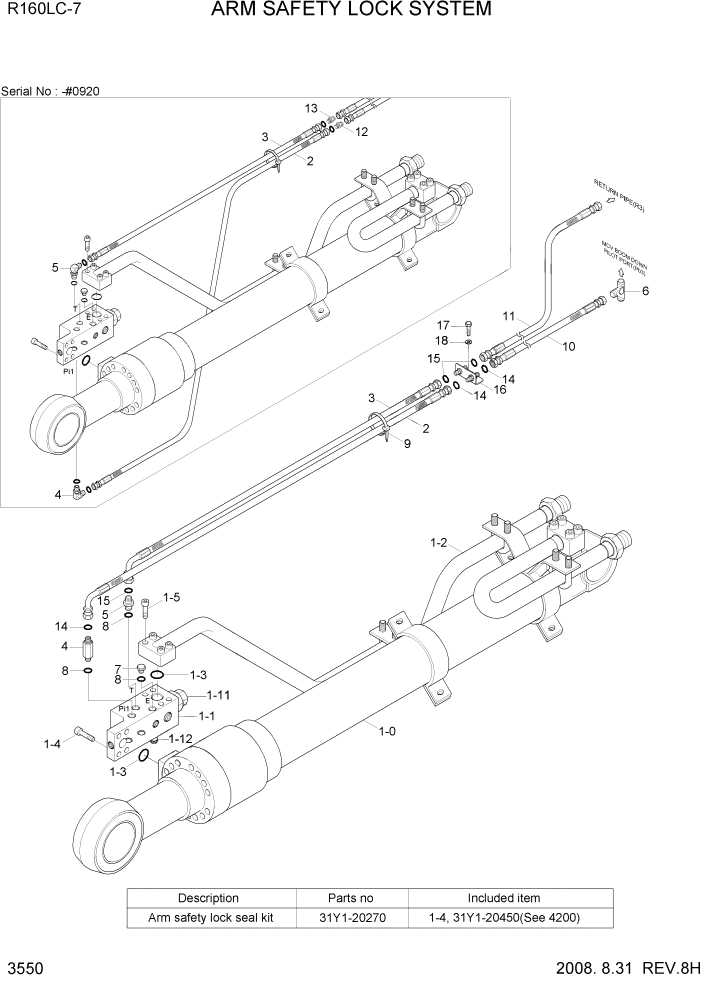

Запчасти Hyundai R160LC7 PAGE 3550 ARM SAFETY LOCK SYSTEM ГИДРАВЛИЧЕСКАЯ СИСТЕМА

1

31N5-52131

ARM SAFETY CYLINDER

1шт.

1

@

ARM CYL SUB ASSY

NOT

1шт.

1-1

31N5-90520

VALVE-SAFETY LOCK

#0930

1шт.

1-1

31NA-91560

VALVE-SAFETY LOCK

#0931

1шт.

1-11

XKCH-00001

VALVE-RELIEF

#0931

1шт.

1-12

DCP-002A

CAP

#0931

1шт.

1-13

ZTAS-00007

SEAL KIT

NOT SHOWN #0930

1шт.

1-13

XKCH-00006

SEAL-KIT

NOT SHOWN #0931

1шт.

1-2

31Y1-20241

PIPE ASSY

1шт.

1-3

Y171-019004

O-RING

2шт.

K1-4

S107-100506

BOLT-SOCKET

4шт.

1-5

S107-100456

BOLT-SOCKET

4шт.

2

P600-042090

HOSE ASSY-THD 0X0

5.1 BM #0064

1шт.

2

P910-042090

HOSE ASSY-ORFS 0X0

5.1 BM #0065 - #0920

1шт.

2

P930-042077

HOSE ASSY-ORFS 0X90

5.1 BM #0921

1шт.

2

P600-042098

HOSE ASSY-THD 0X0

ADJUST BOOM #0010 - #0064

1шт.

2

P910-042098

HOSE ASSY-ORFS 0X0

ADJUST BOOM #0065 - #0920

1шт.

2

P930-042085

HOSE ASSY-ORFS 0X90

ADJUST BOOM #0921

1шт.

3

P600-062090

HOSE ASSY-THD 0X0

5.1 BM #0064

1шт.

3

P910-062090

HOSE ASSY-ORFS 0X0

5.1 BM #0065 - #0920

1шт.

3

P930-062077

HOSE ASSY-ORFS 0X90

5.1 BM #0921

1шт.

3

P600-062098

HOSE ASSY-THD 0X0

ADJUST BOOM #0010 - #0064

1шт.

3

P910-062098

HOSE ASSY-ORFS 0X0

ADJUST BOOM #0065 - #0920

1шт.

3

P930-062085

HOSE ASSY-ORFS 0X90

ADJUST BOOM #0921

1шт.

4

P020-110001

ELBOW-90

#0064

1шт.

4

X520-110001

ELBOW-90,ORFS

#0065 - #0920

1шт.

4

X511-104513

CONNECTOR-LONG,ORFS

#0921

1шт.

5

P020-110011

ELBOW-90

#0064

1шт.

5

X520-110011

ELBOW-90,ORFS

#0065 - #0920

1шт.

5

X500-110011

CONNECTOR-ORFS

#0921

1шт.

6

31E6-0219

TEE-LONG

#0064

1шт.

6

31N4-22150

TEE-LONG,ORFS

#0065

1шт.

7

P220-110102

PLUG-HEX

1шт.

8

S631-014004

O-RING

3шт.

9

S552-020102

CLAMP-BAND

10шт.

10

P620-042044

HOSE ASSY-THD 0X90

#0064

1шт.

10

P930-042044

HOSE ASSY-ORFS 0X90

#0065 - #0920

1шт.

10

P930-042057

HOSE ASSY-ORFS 0X90

#0921

1шт.

11

P600-062045

HOSE ASSY-THD 0X0

#0064

1шт.

11

P910-062045

HOSE ASSY-ORFS 0X0

#0065 - #0920

1шт.

11

P910-062058

HOSE ASSY-ORFS 0X0

#0921

1шт.

12

31L7-40190

CONNECTOR

#0064

1шт.

12

X540-110001

CONNECTOR-ORFS

#0065 - #0920

1шт.

13

31L7-40180

CONNECTOR

#0064

1шт.

13

X540-110002

CONNECTOR-ORFS

#0065 - #0920

1шт.

14

S621-011001

O-RING

#0065 - #0920

2шт.

14

S621-011001

O-RING

#0921

4шт.

15

S621-012001

O-RING

#0065 - #0920

2шт.

15

S621-012001

O-RING

#0921

4шт.

16

31N6-90660

TERMIANL-SAFETY VLV

#0921

1шт.

17

S017-16075D

BOLT-HEX

#0921

1шт.

18

S411-160006

WASHER-SPRING

#0921

1шт.

K

31Y1-20270

SEAL KIT

SEE ILLUST #0001

1шт.

K

31Y1-20270

SEAL KIT

SEE ILLUST #0001

1шт.
