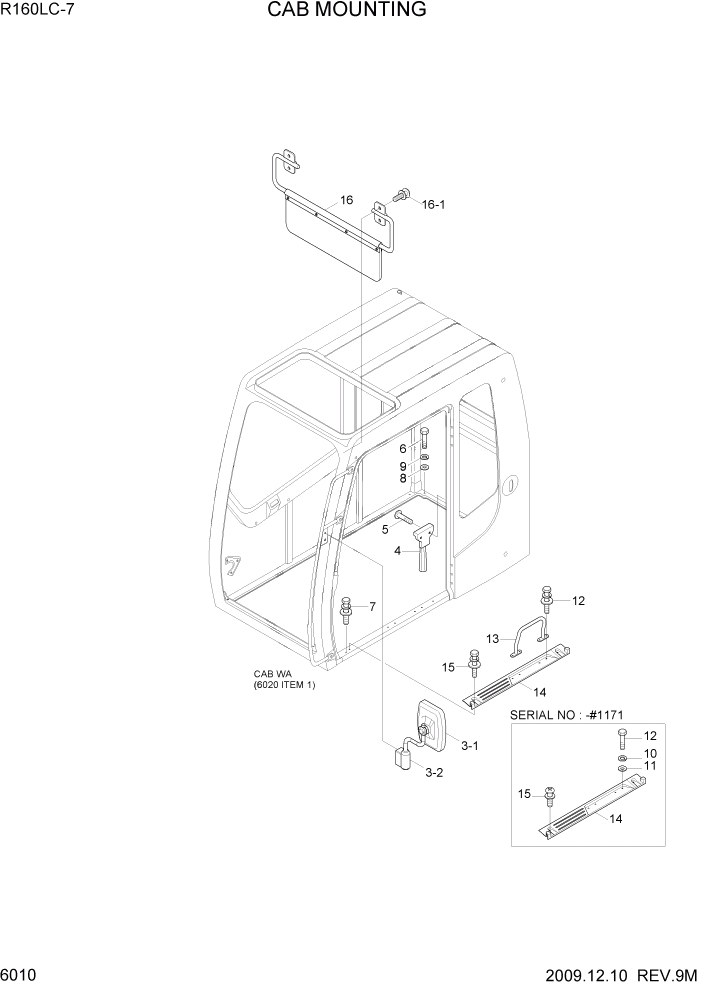

Запчасти Hyundai R160LC7 PAGE 6010 CAB MOUNTING СТРУКТУРА

*

@

CAB MOUNTING

NOT #0001

1шт.

3

71N8-47000

MIRROR & STAY ASSY-LH

#0900

1шт.

3

71N8-47000BG

MIRROR & STAY ASSY-LH

#0901 - #0986

1шт.

3

71N8-47001BG

MIRROR & STAY ASSY-LH

#0987

1шт.

3-1

71N8-47100

MIRROR

#0466

1шт.

3-1

71N8-47101

MIRROR

#0467

1шт.

3-2

71N8-47200

STAY ASSY-LH

#0445

1шт.

3-2

71N8-47200BG

STAY ASSY

#0446

1шт.

3

71N8-47000BG

MIRROR & STAY ASSY-LH

UPGRADE CABIN #0896 - #0986

1шт.

3

71N8-47001BG

MIRROR & STAY ASSY-LH

UPGRADE CABIN #0987

1шт.

3-1

71N8-47100

MIRROR

#0466

1шт.

3-1

71N8-47101

MIRROR

#0467

1шт.

3-2

71N8-47200BG

STAY ASSY

#0446

1шт.

4

71E1-60340

HAMMER-SAFETY

1шт.

5

S141-040166

SCREW-FLAT HD

2шт.

6

S017-120706

BOLT-HEX

8шт.

7

S037-122526

BOLT-W/WASHER

1шт.

8

S403-12200B

WASHER-PLAIN

8шт.

9

S411-120006

WASHER-SPRING

8шт.

10

S411-100006

WASHER-SPRING

#1171

4шт.

11

S403-10200B

WASHER-PLAIN

#1171

4шт.

12

S017-100256

BOLT-HEX

#1171

4шт.

12

S037-102526

BOLT-W/WASHER

#1172

4шт.

13

71N6-03560

RAIL-HAND

1шт.

14

71N6-10270

PLATE

#1171

1шт.

14

71N6-10271

PLATE

#1172

1шт.

15

S131-051646

SCREW-W/WASHER

#1171

2шт.

15

S037-101526

BOLT-W/WASHER

#1172

2шт.

16

71N6-03632

SUN VISOR ASSY

1шт.

16-1

S132-060856

SCREW-W/WASHER

4шт.
