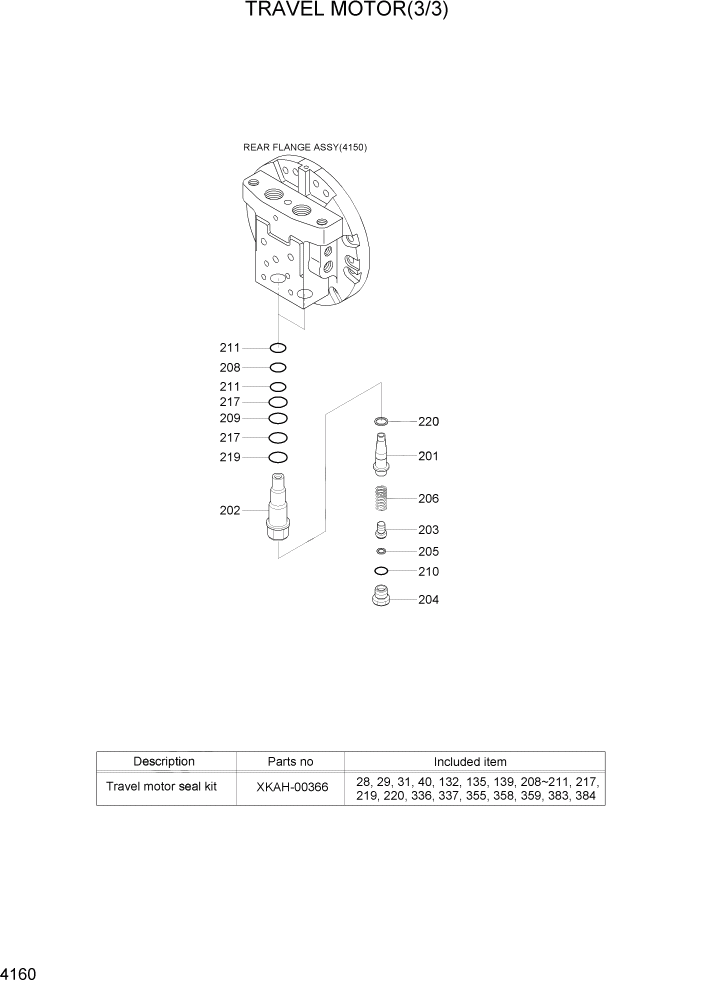

Запчасти Hyundai R160LC7 PAGE 4160 TRAVEL MOTOR(3/3) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

@

TRAVEL MOTOR

NOT

1шт.

*-4

XKAH-00097

RELIEF VALVE KIT

716691

2шт.

N201

XKAH-00098

VALVE

NOT

1шт.

N202

XKAH-00099

SLEEVE

NOT

1шт.

N203

XKAH-00100

RETAINER-SPRING

NOT

1шт.

N204

XKAH-00101

PLUG

NOT

1шт.

N205

XKAH-00102

SHIM

NOT

1шт.

N206

XKAH-00103

SPRING

NOT

1шт.

N208

XKAH-00104

O-RING

NOT

1шт.

N209

XKAH-00105

O-RING

NOT

1шт.

N210

XKAH-00035

O-RING

NOT

1шт.

N211

XKAH-00106

RING-BACK UP

NOT

2шт.

N217

XKAH-00107

RING-BACK UP

NOT

2шт.

N219

XKAH-00108

O-RING

NOT

1шт.

N220

XKAH-00109

SEAL-PISTON

NOT

1шт.

*-1

XKAH-00367

REDUCTION GEAR ASSY

718860

1шт.

*-2

XKAH-00333

CONTROL UNIT

1шт.

*-3

XKAH-00622

HYD MOTOR

1шт.

K

XKAH-00366

SEAL KIT

SEE ILLUST

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

1шт.
