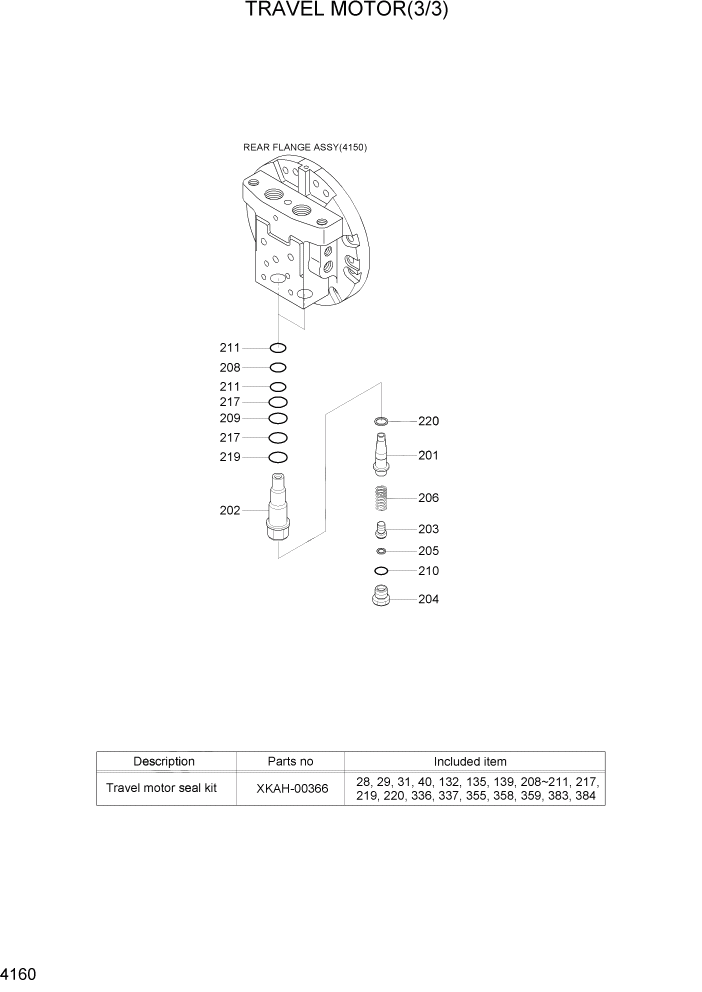

Запчасти Hyundai R140LC-7A PAGE 4160 TRAVEL MOTOR(3/3) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

@

TRAVEL MOTOR

NOT

1шт.

*-4

XKAH-00097

RELIEF VALVE KIT

2шт.

N201

XKAH-00098

VALVE

NOT

1шт.

N202

XKAH-00099

SLEEVE

NOT

1шт.

N203

XKAH-00100

RETAINER-SPRING

NOT

1шт.

N204

XKAH-00101

PLUG

NOT

1шт.

N205

XKAH-00102

SHIM

NOT

1шт.

N206

XKAH-00103

SPRING

NOT

1шт.

KN208

XKAH-00104

O-RING

NOT

1шт.

KN209

XKAH-00105

O-RING

NOT

1шт.

KN210

XKAH-00035

O-RING

NOT

1шт.

KN211

XKAH-00106

RING-BACK UP

NOT

2шт.

KN217

XKAH-00107

RING-BACK UP

NOT

2шт.

KN219

XKAH-00108

O-RING

NOT

1шт.

KN220

XKAH-00109

SEAL-PISTON

NOT

1шт.

*-1

@

REDUCTION GEAR ASSY

NOT

1шт.

*-2

@

CONTROL UNIT

NOT

1шт.

*-3

@

TRAVEL MOTOR UNIT

NOT

1шт.

K

XKAH-00366

SEAL KIT

SEE ILLUST

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
