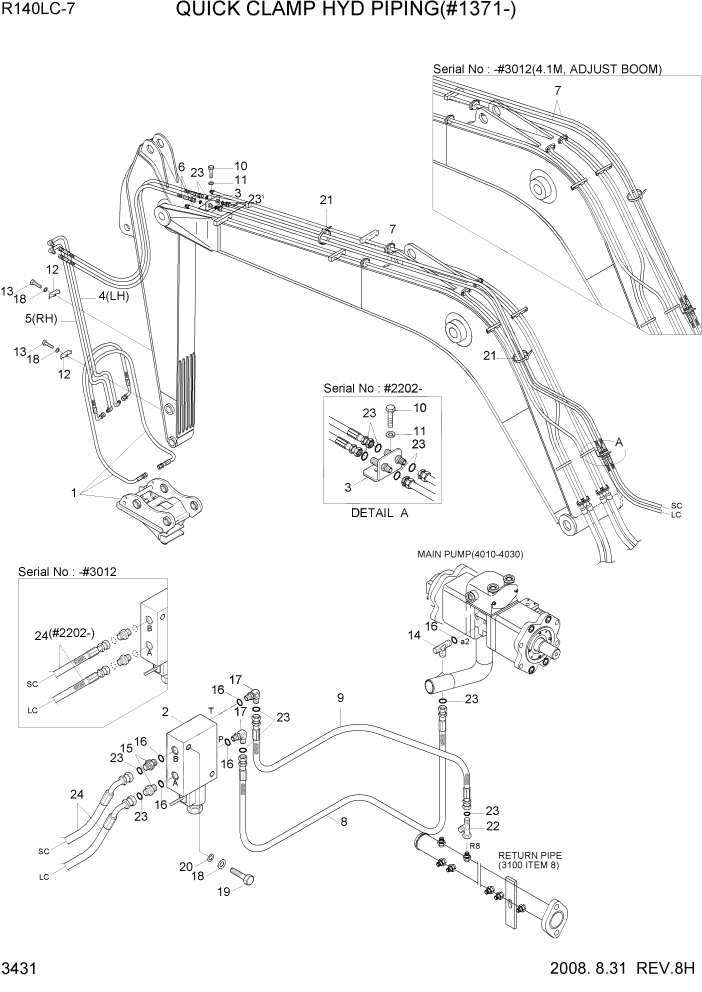

Запчасти Hyundai R140LC-7 PAGE 3431 QUICK CLAMP HYD PIPING(#1371-) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

@

QUICK CLAMP HYD PIPING

NOT #1371

1шт.

1

@

QUICK CLAMP ASSY

NOT

1шт.

2

34EA-91720

SOLENOID VALVE

1шт.

2-1

34EA-91720B

MANIFOLD

1шт.

2-2

GS044200NC

VALVE-SOLENOID

1шт.

2-3

CAP024L+DT

COIL

1шт.

3

31N4-90680

TERMINAL-Q/CLAMP

#2201

1шт.

3

31N4-90680

TERMINAL-Q/CLAMP

#2202

2шт.

4

31N4-90602

PIPE ASSY

1.9/2.1/3.0M AM

1шт.

4

31N4-90622

PIPE ASSY

2.5M AM, STD

1шт.

5

31N4-90612

PIPE ASSY

1.9/2.1/3.0M AM

1шт.

5

31N4-90632

PIPE ASSY

2.5M AM, STD

1шт.

6

P913-047026

HOSE ASSY-ORFS 0X0

1.9M/2.1M AM

2шт.

6

P913-047033

HOSE ASSY-ORFS 0X0

2.5M AM, STD

2шт.

6

P913-047050

HOSE ASSY-ORFS 0X0

3.0M AM

2шт.

7

P910-047130

HOSE ASSY-ORFS 0X0

4.6M BM, STD #2201

2шт.

7

P910-047095

HOSE ASSY-ORFS 0X0

4.6M BM, STD #2202

2шт.

7

P910-047124

HOSE ASSY-ORFS 0X0

4.1M BM #2201

2шт.

7

P910-047086

HOSE ASSY-ORFS 0X0

4.1M BM #2202 - #0312

2шт.

7

P910-047087

HOSE ASSY-ORFS 0X0

4.1M BM #3013

2шт.

7

P910-047135

HOSE ASSY-ORFS 0X0

ADJUST BOOM #2201

2шт.

7

P910-047096

HOSE ASSY-ORFS 0X0

ADJUST BOOM #2202 - #3012

2шт.

7

P910-047097

HOSE ASSY-ORFS 0X0

ADJUST BOOM #3013

2шт.

8

P910-047030

HOSE ASSY-ORFS 0X0

#2201

1шт.

8

31N4-95750

HOSE ASSY

#2202

1шт.

9

P930-042008

HOSE ASSY-ORFS 0X90

1шт.

10

S017-160752

BOLT-HEX

#2201

1шт.

10

S017-160752

BOLT-HEX

#2202

2шт.

11

S411-160002

WASHER-SPRING

#2201

1шт.

11

S411-160002

WASHER-SPRING

#2202

2шт.

12

34EA-91811

CLAMP-PIPE

3шт.

13

S017-100302

BOLT-HEX

3шт.

14

31N4-22170

TEE-RUN TYPE

1шт.

15

X500-110001

CONNECTOR-ORFS

2шт.

16

S631-011004

O-RING

5шт.

17

X520-110001

ELBOW-90,ORFS

2шт.

18

S441-100002

WASHER-HARDENED

5шт.

19

S017-100502

BOLT-HEX

2шт.

20

S411-100002

WASHER-SPRING

2шт.

21

S554-054300

CLAMP-BAND

20шт.

22

X840-515151

TEE-R/TYPE,SWIVEL,ORFS

1шт.

23

S621-011001

O-RING

12шт.

24

P910-047038

HOSE ASSY-ORFS 0X0

#2202 - #3012

2шт.

24

P920-047034

HOSE ASSY-ORFS 0X45

#3013

2шт.
