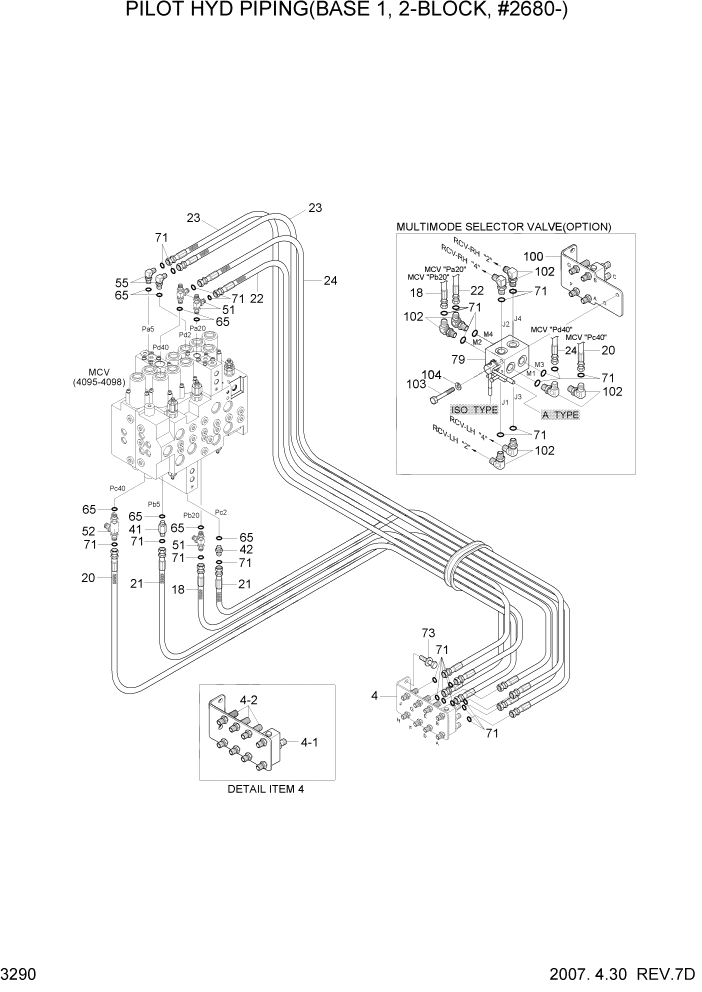

Запчасти Hyundai R140LC-7 PAGE 3290 PILOT HYD PIPING(BASE 1,2-BLOCK, #2680-) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

@

PILOT HYD PIPING

NOT #2680

1шт.

4

31N6-25010

TERMINAL ASSY

STD

1шт.

4-1

31N6-25030

SHUTTLE-5 PORT

1шт.

4-2

X540-120001

CONNECTOR-B.H TYPE

6шт.

18

P910-042019

HOSE ASSY-ORFS,THD(0X0)

1шт.

20

P910-042021

HOSE ASSY-ORFS 0X0

1шт.

21

P910-042022

HOSE ASSY-ORFS 0X0

2шт.

22

P910-042026

HOSE ASSY-ORFS 0X0

1шт.

23

P910-042031

HOSE ASSY-ORFS 0X0

2шт.

24

P910-042032

HOSE ASSY-ORFS 0X0

1шт.

41

X511-104513

CONNECTOR-ORFS

1шт.

42

X500-110001

CONNECTOR-ORFS

1шт.

51

X820-045151

TEE-R/TYPE,ORFS

3шт.

52

31N4-22150

TEE-LONG,ORFS

1шт.

55

X520-110001

ELBOW-90,ORFS

2шт.

65

S631-011004

O-RING

8шт.

71

S621-011001

O-RING

STD

8шт.

71

S621-011001

O-RING

OPT, PATT VALVE

20шт.

73

S037-102042

BOLT-W/WASHER

2шт.

100

31N4-20140

TERMINAL ASSY

OPT, PATT VALVE #2719

1шт.

101

31N6-22050

SELECTOR VALVE

OPT, PATT VALVE #2719

1шт.

102

X520-110001

ELBOW-90,ORFS

OPT, PATT VALVE #2719

8шт.

103

S015-080806

BOLT-HEX

OPT, PATT VALVE #2719

2шт.

104

S411-080006

WASHER-SPRING

OPT, PATT VALVE #2719

2шт.
