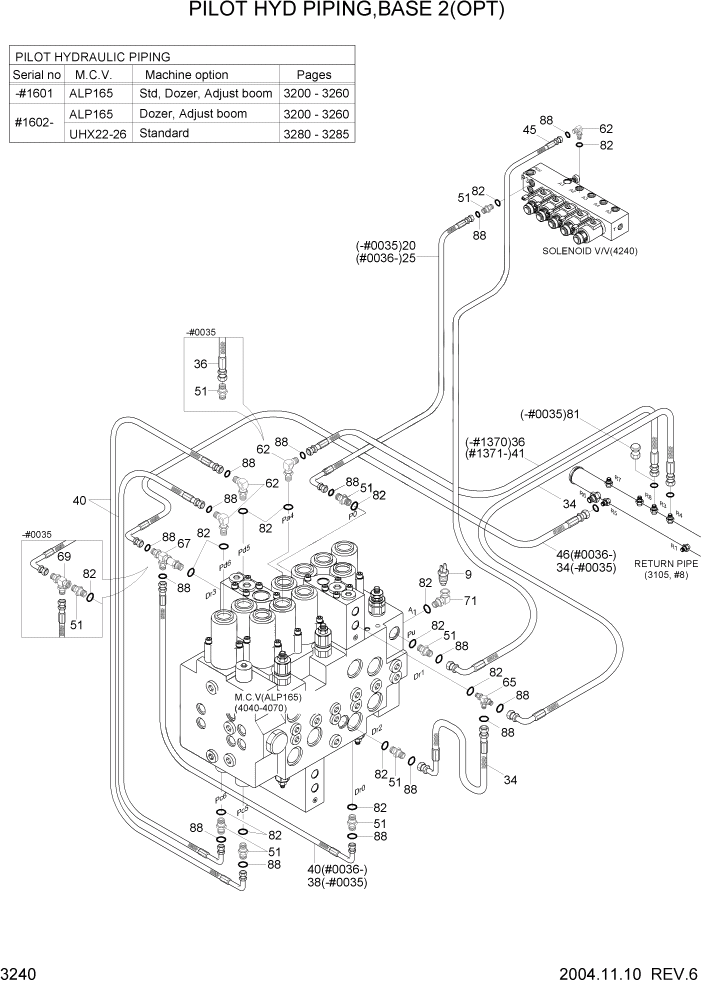

/ / / / / / / / PAGE 3240 PILOT HYD PIPING(BASE 2, OPT)
Запчасти Hyundai R140LC-7 PAGE 3240 PILOT HYD PIPING(BASE 2, OPT) ГИДРАВЛИЧЕСКАЯ СИСТЕМА
*
@
PILOT HYD PIPING
NOT #1601
1шт.
*
@
PILOT HYD PIPING
NOT #1602
1шт.
9
31E5-40560
SWITCH-PRESSURE
AUTO IDLE
1шт.
20
P410-042036
HOSE ASSY-COMP 0X45
#0035
1шт.
25
P400-042036
HOSE ASSY-COMPACT
#0036 - #1370
1шт.
25
X400-042036
HOSE ASSY-SYNFLEX,ORFS
#1371 - #1601
1шт.
25
P910-042036
HOSE ASSY-ORFS 0X0
#1602
1шт.
34
P420-042005
HOSE ASSY-COMP 0X90
#0035
3шт.
34
P420-042005
HOSE ASSY-COMP 0X90
#0036 - #1370
2шт.
34
X420-042005
HOSE ASSY-SYNFLEX,ORFS
#1371 - #1601
2шт.
34
P930-042005
HOSE ASSY-ORFS 0X90
#1602
2шт.
36
P420-042008
HOSE ASSY-COMP 0X90
#1370
1шт.
38
P420-042010
HOSE ASSY-COMP 0X90
#0035
1шт.
40
P420-042015
HOSE ASSY-COMP 0X90
#0035
2шт.
40
P420-042015
HOSE ASSY-COMP 0X90
#0036 - #1370
3шт.
40
X420-042015
HOSE ASSY-SYNFLEX,ORFS
#1371 - #1601
3шт.
40
P930-042015
HOSE ASSY-ORFS 0X90
#1602
3шт.
41
X420-042008
HOSE ASSY-SYNFLEX,ORFS
#1371 - #1601
1шт.
41
P930-042008
HOSE ASSY-ORFS 0X90
#1602
1шт.
45
P420-042037
HOSE ASSY-COMP 0X90
#1370
1шт.
45
X420-042037
HOSE ASSY-SYNFLEX,ORFS
#1371 - #1601
1шт.
45
P930-042037
HOSE ASSY-ORFS 0X90
#1602
1шт.
46
P420-042006
HOSE ASSY-COMP 0X90
#0036 - #1370
1шт.
46
X420-042006
HOSE ASSY-SYNFLEX,ORFS
#1371 - #1601
1шт.
46
P930-042006
HOSE ASSY-ORFS 0X90
#1602
1шт.
51
P010-110002
CONNECTOR
#0035
9шт.
51
P010-110002
CONNECTOR
#0036 - #1370
7шт.
51
X500-110001
CONNECTOR-ORFS
#1371
7шт.
62
P020-110001
ELBOW-90
#0035
3шт.
62
P020-110001
ELBOW-90
#0036 - #1370
4шт.
62
X520-110001
ELBOW-90,ORFS
#1371
4шт.
65
P310-040404
TEE-BRANCH TYPE
#1370
1шт.
65
X810-045151
TEE-B/TYPE,ORFS
#1371
1шт.
67
X820-045151
TEE-R/TYPE,ORFS
#1371
1шт.
69
32E6-10460
TEE-SWEVEL NUT
#0035
1шт.
69
31E6-0219
TEE-LONG
#0036 - #1370
1шт.
71
31E5-11110
ADAPTER
1шт.
81
P290-100102
CAP
#0035
1шт.
82
S631-011004
O-RING
14шт.
88
S621-011001
O-RING,ORFS
#1371
18шт.
