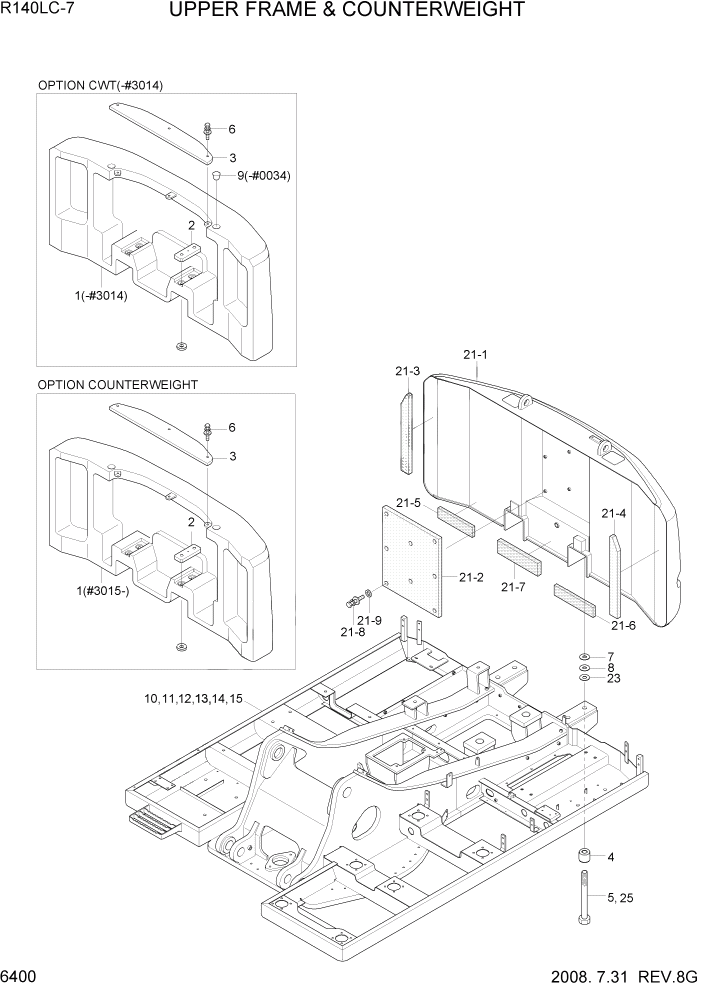

Запчасти Hyundai R140LC-7 PAGE 6400 UPPER FRAME & COUNTERWEIGHT СТРУКТУРА

1

41N4-21001

COUNTERWEIGHT

OPTION #0034

1шт.

1

41N4-21002

COUNTERWEIGHT

OPTION #0035 - #0049

1шт.

1

41N4-21003

COUNTERWEIGHT

OPTION #0050 - #3014

1шт.

1

41N4-21004

COUNTERWEIGHT

OPTION #3015

1шт.

2

41N4-21111

BLOCK

OPTION

2шт.

3

41N4-21200

COVER-CWT

OPTION #0049

1шт.

3

41N4-21201

COVER WA-CWT

OPTION #0050

1шт.

4

41N4-22200

SPACER

#2086

4шт.

4

41N4-22201

SPACER

#2087 - #2384

4шт.

4

41N4-22202

SPACER

#2385

4шт.

5

S017-27220D

BOLT-HEX

OPTION

4шт.

6

S037-102566

BOLT-W/WASHER

OPTION #0225

3шт.

6

S037-104556

BOLT-W/WASHER

OPTION #0226

3шт.

7

S391-040065

SHIM-ROUND(1.0T)

5шт.

8

S392-040065

SHIM-ROUND(2.0T)

5шт.

9

S981-202500

PLUG

#0034

2шт.

10

41N4-00012

UPPER FRAME WA

STD,TOSHI MCV #0049

1шт.

10

41N4-00013

UPPER FRAME WA

STD,TOSHI MCV #0050 - #0253

1шт.

10

41N4-00014

UPPER FRAME WA

STD,TOSHI MCV #0254 - #1000

1шт.

10

41N4-30011

UPPER FRAME WA

STD,TOSHI MCV #1001 - #1145

1шт.

10

41N4-30012

UPPER FRAME WA

STD,TOSHI MCV #1146 - #1195

1шт.

10

41N4-30013

UPPER FRAME WA

STD,TOSHI MCV #1196 - #1601

1шт.

10

41N4-35010

UPPER FRAME WA

STD,TOSHI MCV #1602 - #2947

1шт.

10

41N4-35010BG

UPPER FRAME WA

STD,TOSHI MCV #2948

1шт.

11

42N4-00010

UPPER FRAME WA

LCM,1-BLK MCV #1177

1шт.

11

42N4-00011

UPPER FRAME WA

LCM,1-BLK MCV #1178 - #2947

1шт.

11

42N4-00011BG

UPPER FRAME WA

LCM,1-BLK MCV #2948

1шт.

12

41N4-30013

UPPER FRAME WA

1-BLOCK MCV #1602 - #2947

1шт.

12

41N4-30013BG

UPPER FRAME WA

1-BLOCK MCV #2948

1шт.

13

41N4-36010

UPPER FRAME WA

2-BLOCK MCV #2680 - #2947

1шт.

13

41N4-36010BG

UPPER FRAME WA

2-BLOCK MCV #2948

1шт.

14

42N4-36000

UPPER FRAME WA

LCM,2-BLK MCV #3417

1шт.

15

42N4-40010BG

UPPER FRAME WA

SPEC,2-BLK MCV #3419

1шт.

21

41N4-26000

COUNTERWEIGHT ASSY

STD(2200KG) #2042

1шт.

21

41N4-27000

COUNTERWEIGHT ASSY

OPT(2500KG) #2260

1шт.

21-1

41N4-26010

COUNTERWEIGHT WA

STD(2200KG) #2042 - #2128

1шт.

21-1

41N4-26011

COUNTERWEIGHT WA

STD(2200KG) #2129

1шт.

21-1

41N4-27010

COUNTERWEIGHT WA

OPT(2500Kg) #2260

1шт.

21-2

41N4-24320

SPONGE(A)

#2042

1шт.

21-3

41N4-24330

SPONGE(B)

#2042 - #2259

1шт.

21-3

41N4-24331

SPONGE(B)

#2260

1шт.

21-4

41N4-24340

SPONGE(C)

#2042 - #2259

1шт.

21-4

41N4-24341

SPONGE(C)

#2260

1шт.

21-5

41N4-24350

SPONGE(D)

#2042 - #2259

1шт.

21-5

41N4-24351

SPONGE(D)

#2260

1шт.

21-6

41N4-24360

SPONGE(E)

#2042 - #2259

1шт.

21-6

41N4-24361

SPONGE(E)

#2260 - #2774

1шт.

21-6

41N4-24380

SPONGE(E)

#2775

1шт.

21-7

41N4-24370

SPONGE(F)

#2042 - #2259

1шт.

21-7

41N4-24371

SPONGE(F)

#2260

1шт.

21-8

S037-102526

BOLT-W/WASHER

#2042

8шт.

21-9

61L1-2037

WASHER-HARDENED

#2042

8шт.

23

S390-040065

SHIM-ROUND(0.5T)

STD #2042

5шт.

25

S017-27120D

BOLT-HEX

STD #2042 - #2384

4шт.

25

S017-27130D

BOLT-HEX

STD #2385

4шт.
