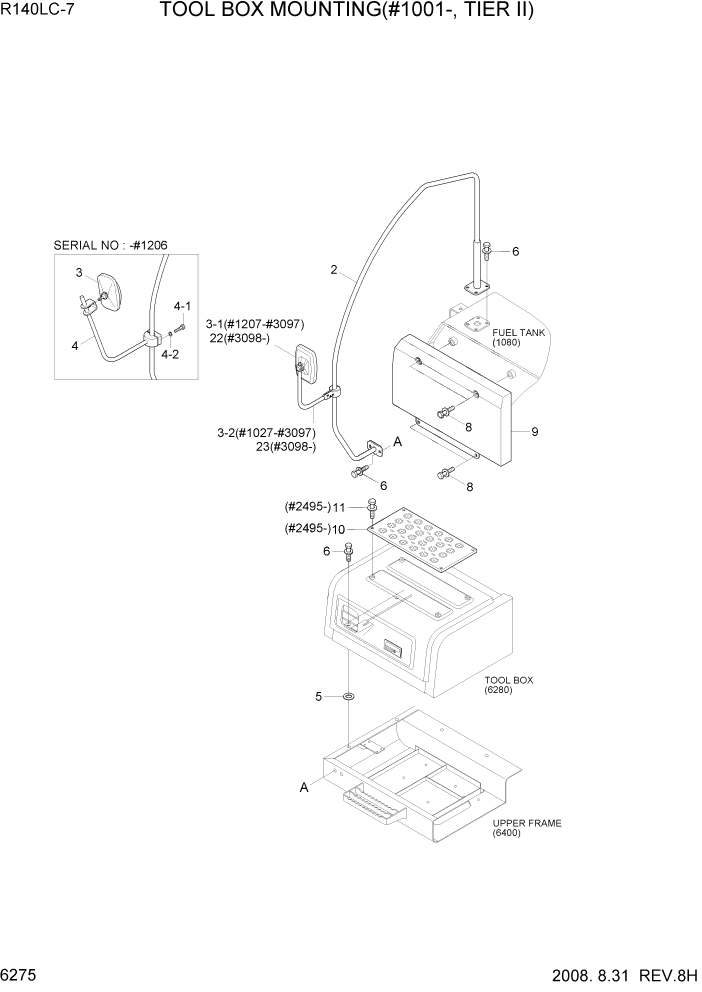

Запчасти Hyundai R140LC-7 PAGE 6275 TOOL BOX MOUNTING(#1001-, TIER II) СТРУКТУРА

*

@

TOOL BOX MOUNTING

NOT #1001

1шт.

2

71N8-42005

PIPE WA

#2947

1шт.

2

71N8-42005BG

PIPE WA

#2948

1шт.

3

71N8-46000

MIRROR

#1206

1шт.

3

71N8-48000

MIRROR & STAY ASSY-RH

#1207 - #1277

1шт.

3

71N8-48001

MIRROR & STAY ASSY-RH

#1278 - #2947

1шт.

3

71N8-48001BG

MIRROR & STAY ASSY-RH

#2948

1шт.

3

71N8-48001BG

MIRROR & STAY ASSY-RH

#2948 - #3097

1шт.

3-1

71N8-47100

MIRROR

#1207 - #3097

1шт.

3-2

71N8-48100

STAY ASSY-RH

#1207 - #1277

1шт.

3-2

71N8-48101

STAY ASSY-RH

#1278 - #2947

1шт.

3-2

71N8-48101BG

STAY ASSY-RH

#2948 - #3097

1шт.

4

71N8-45000

STAY-MIRROR

#1206

1шт.

4-1

S015-080406

BOLT-HEX

#1206

2шт.

4-2

S411-080006

WASHER-SPRING

#1206

2шт.

5

S390-015040

SHIM-ROUND(0.5T)

4шт.

6

S037-122556

BOLT-W/WASHER

10шт.

8

S037-122526

BOLT-W/WASHER

4шт.

9

71N4-44100

COVER-F/TANK

1шт.

9

71N4-44200

COVER-F/TANK

LOCAL #1001

1шт.

10

74N4-47100

FOOT BOARD WA(A)

#2495

1шт.

11

S037-121556

BOLT-W/WASHER

#2495

4шт.

22

71N8-47101

MIRROR

#3098

1шт.

23

71N8-48102BG

STAY ASSY-RH

#3098

1шт.
