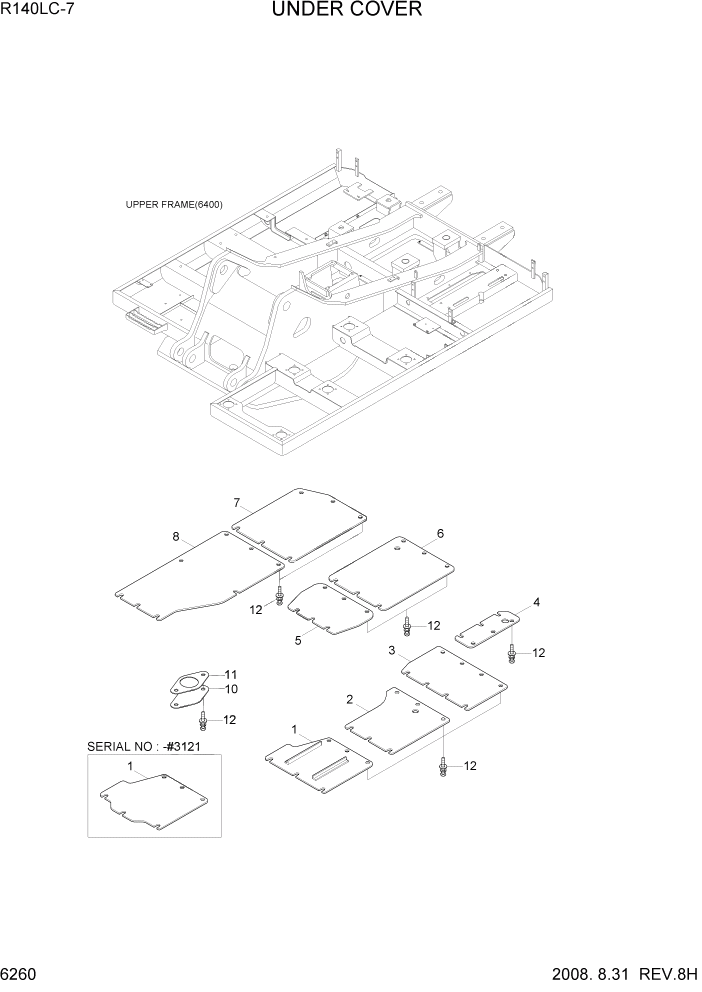

Запчасти Hyundai R140LC-7 PAGE 6260 UNDER COVER СТРУКТУРА

1

41N4-10010

UNDER COVER-CAB(A)

#1883

1шт.

1

41N4-10011

UNDER COVER-CAB(A)

#1884 - #2947

1шт.

1

43N4-10010

UNDER COVER-CAB(A)

#2948 - #3121

1шт.

1

43N4-10011

UNDER COVER-CAB(A)

#3122

1шт.

2

41N4-10020

UNDER COVER-CAB(B)

1шт.

2

43N4-10020

UNDER COVER-CAB(B)

1шт.

3

41N4-10031

UNDER COVER-CAB(C)

#1000

1шт.

3

41N4-10330

UNDER COVER-CAB(C)

#1001 - #2947

1шт.

3

43N4-10330

UNDER COVER-CAB(C)

#2948

1шт.

4

41N4-10040

UNDER COVER-RAD(A)

#1000

1шт.

4

41N4-10340

UNDER COVER-RAD(A)

#1001 - #2947

1шт.

4

43N4-10340

UNDER COVER-RAD(A)

#2948

1шт.

5

41N4-10050

UNDER COVER-MCV

#2947

1шт.

5

43N4-10051

UNDER COVER-MCV

#2948

1шт.

6

41N4-10061

UNDER COVER-ENGINE

#1183

1шт.

6

41N4-10062

UNDER COVER-ENGINE

#1184 - #2947

1шт.

6

41N4-10062BG

UNDER COVER-ENGINE

#2948

1шт.

7

41N4-10071

UNDER COVER-PUMP

#2947

1шт.

7

41N4-10071BG

UNDER COVER-PUMP

#2948

1шт.

8

41N4-10081

UNDER COVER-H/TANK

#0049

1шт.

8

41N4-10082

UNDER COVER-H/TANK

#0050 - #2947

1шт.

8

43N4-10090

UNDER COVER-TANK

#2948

1шт.

10

41N6-10100BG

COVER

#0152

1шт.

10

41N6-10100

COVER

#0153

1шт.

11

41E9-1306

SEAL

#2947

1шт.

12

S037-102562

BOLT-W/WASHER

53шт.
