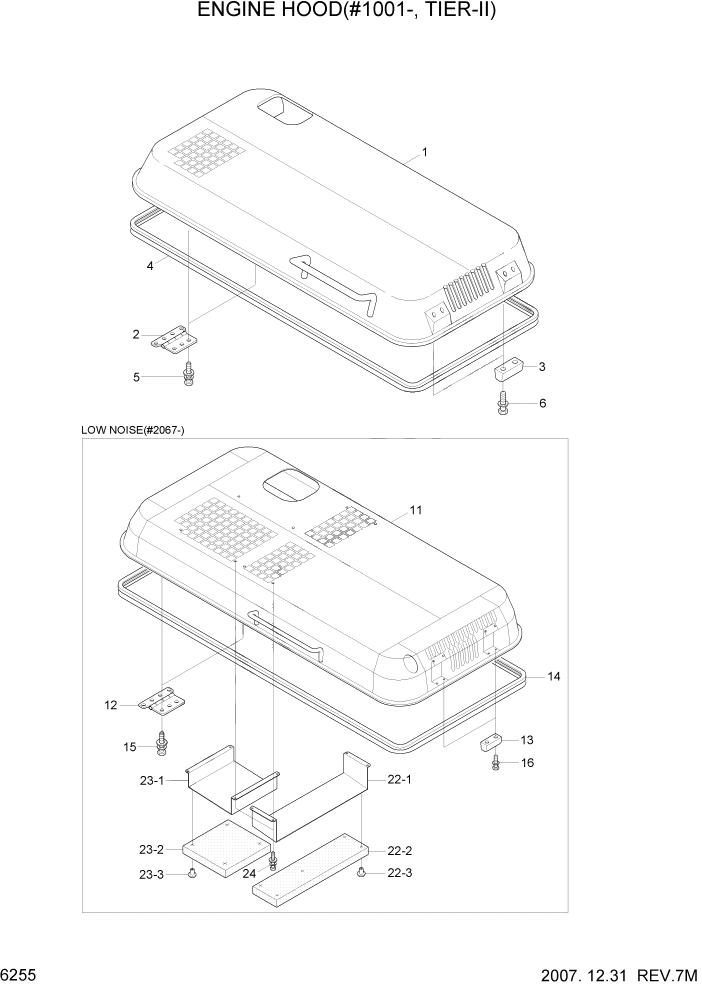

Запчасти Hyundai R140LC-7 PAGE 6255 ENGINE HOOD(#1001-, TIER II) СТРУКТУРА

*

72N4-51001

ENGINE HOOD ASSY

EXCEPT KOREA #1001 - #2066

1шт.

*

72N4-51002

ENGINE HOOD ASSY

EXCEPT KOREA #2067 - #2308

1шт.

*

72N4-51003

ENGINE HOOD ASSY

EXCEPT KOREA #2309 - #2947

1шт.

*

72N4-51003BG

ENGINE HOOD ASSY

#2948

1шт.

*

72N4-61000

ENGINE HOOD ASSY

KOREA #1042 - #2308

1шт.

*

72N4-61001

ENGINE HOOD ASSY

KOREA #2309

1шт.

1

72N4-51011

ENGINE HOOD WA

EXCEPT KOREA #2066

1шт.

1

72N4-51012

ENGINE HOOD WA

EXCEPT KOREA #2067 - #2308

1шт.

1

72N4-51013

ENGINE HOOD WA

EXCEPT KOREA #2309

1шт.

1

72N4-61010

ENGINE HOOD WA

KOREA #1042 - #2308

1шт.

1

72N4-61011

ENGINE HOOD WA

KOREA #2309

1шт.

2

71N6-51101

HINGE-ENG HOOD

2шт.

2

71N6-51101BG

HINGE-ENG HOOD

#2948

2шт.

3

71N6-51140

STOPPER-A

2шт.

4

S771-057000

WEATHER STRIP

1шт.

5

S037-122556

BOLT W/WASHER-HEX

6шт.

6

S132-063056

SCREW W/WASHER CR RH

4шт.

*

72N4-65000

ENGINE HOOD ASSY

LOW NOISE, OPT #2067 - #2308

1шт.

*

72N4-65001

ENGINE HOOD ASSY

LOW NOISE, OPT #2309 - #2947

1шт.

*

72N4-65001BG

ENGINE HOOD ASSY

#2948

1шт.

*-1

72N4-51002

ENGINE HOOD ASSY

LOW NOISE, OPT #2067 - #2308

1шт.

*-1

72N4-51003

ENGINE HOOD ASSY

LOW NOISE, OPT #2309 - #2947

1шт.

*-1

72N4-51003BG

ENGINE HOOD ASSY

#2948

1шт.

11

72N4-51012

ENGINE HOOD WA

LOW NOISE, OPT #2067 - #2308

1шт.

11

72N4-51013

ENGINE HOOD WA

LOW NOISE, OPT #2309

1шт.

12

71N6-51101

HINGE-ENG HOOD

LOW NOISE, OPT #2067

2шт.

12

71N6-51101BG

HINGE-ENG HOOD

#2948

2шт.

13

71N6-51140

STOPPER-A

LOW NOISE, OPT #2067

2шт.

14

S771-057000

WEATHER STRIP

LOW NOISE, OPT #2067

1шт.

15

S037-122556

BOLT W/WASHER-HEX

LOW NOISE, OPT #2067

6шт.

16

S132-063056

SCREW W/WASHER CR RH

LOW NOISE, OPT #2067

4шт.

22

72N4-65500

BAFFLE ASSY-A

LOW NOISE, OPT #2067

1шт.

22-1

72N4-65510

BAFFLE WA-A

LOW NOISE, OPT #2067

1шт.

22-2

72N4-65520

SPONGE

LOW NOISE, OPT #2067

1шт.

22-3

71EM-51580

CAP-STUD BOLT

LOW NOISE, OPT #2067

5шт.

23

72N4-65600

BAFFLE ASSY-B

LOW NOISE, OPT #2067

1шт.

23-1

72N4-65610

BAFFLE WA-B

LOW NOISE, OPT #2067

1шт.

23-2

72N4-65620

SPONGE

LOW NOISE, OPT #2067

1шт.

23-3

71EM-51580

CAP-STUD BOLT

LOW NOISE, OPT #2067

5шт.

24

S035-082026

BOLT W/WASHER-HEX

LOW NOISE, OPT #2067

8шт.
