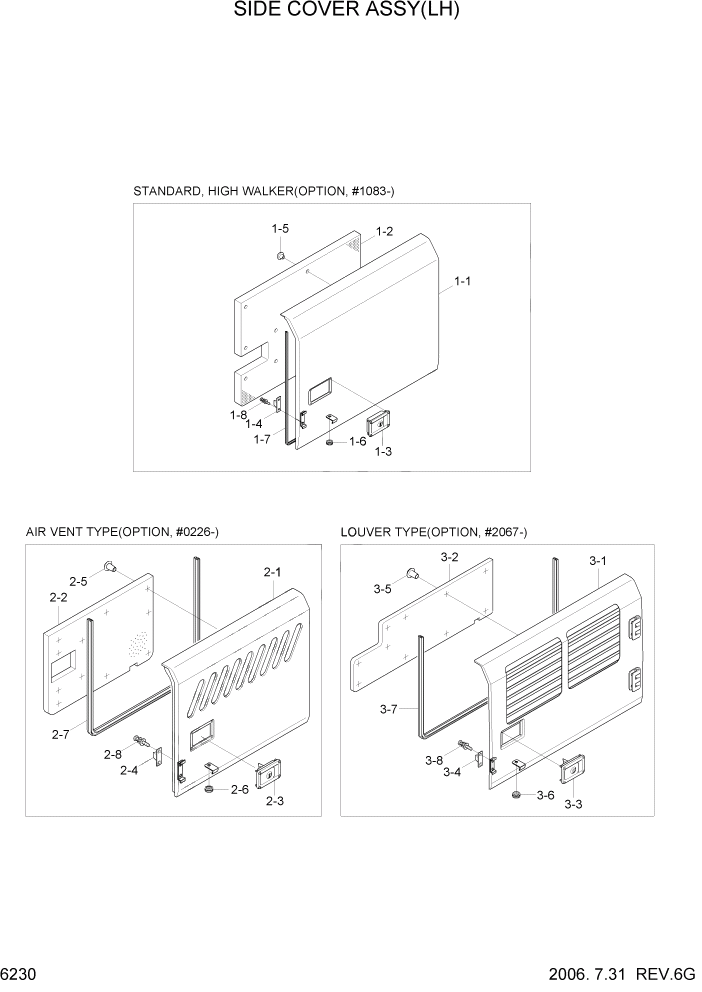

Запчасти Hyundai R140LC-7 PAGE 6230 SIDE COVER ASSY(LH) СТРУКТУРА

1

71N4-52102

SIDE COVER ASSY-LH

STD #2416

1шт.

1

71N4-52102Y

SIDE COVER ASSY-LH

STD #2417

1шт.

1

73N4-52100

SIDE COVER ASSY-LH

HIGH WALKER #1083

1шт.

1-1

71N4-52112

SIDE COVER WA-LH

STD

1шт.

1-1

73N4-52110

SIDE COVER WA-LH

HIGH WALKER

1шт.

1-2

71N4-52182

SPONGE

1шт.

1-3

71EE-52520

CATCH ASSY

BLACK #2416

1шт.

1-3

74N8-52520

CATCH ASSY

YELLOW #2417

1шт.

1-4

71EE-53530

STOPPER-A

1шт.

1-5

71EM-51580

CAP-STUD BOLT

12шт.

1-6

S681-100400

GROMMET

1шт.

1-7

S772-026000

WEATHER STRIP

STD

1шт.

1-7

S772-025000

WEATHER STRIP

HIGH WALKER #1083

1шт.

1-8

S035-061522

BOLT-W/WASHER

2шт.

2

71N4-72101

SIDE COVER ASSY-LH

A/VENT,SMALL #0226 - #2416

1шт.

2

71N4-72101Y

SIDE COVER ASSY-LH

A/VENT,SMALL #2417

1шт.

2-1

71N4-72111

SIDE COVER WA-LH

#0226

1шт.

2-2

71N4-72181

SPONGE

#0226

1шт.

2-3

71EE-52520

CATCH ASSY

BLACK #2416

1шт.

2-3

74N8-52520

CATCH ASSY

YELLOW #2417

1шт.

2-4

71EE-53530

STOPPER-A

1шт.

2-5

71EM-51580

CAP-STUD BOLT

#0226

9шт.

2-6

S681-100400

GROMMET

1шт.

2-7

S772-026000

WEATHER STRIP

1шт.

2-8

S035-061522

BOLT-W/WASHER

2шт.

3

72N4-85100

SIDE COVER ASSY-LH

LOUVER TYPE #2067 - #2416

1шт.

3

72N4-85100Y

SIDE COVER ASSY-LH

LOUVER TYPE #2417

1шт.

3-1

72N4-85110

SIDE COVER WA-LH

#2067

1шт.

3-2

72N4-85130

SPONGE

#2067

1шт.

3-3

71EE-52520

CATCH ASSY

BLACK #2067 - #2416

1шт.

3-3

74N8-52520

CATCH ASSY

YELLOW #2417

1шт.

3-4

71EE-53530

STOPPER-A

#2067

1шт.

3-5

71EM-51580

CAP-STUD BOLT

#2067

8шт.

3-6

S681-100400

GROMMET

#2067

1шт.

3-7

S772-026000

WEATHER STRIP

#2067

1шт.

3-8

S035-061522

BOLT-W/WASHER

#2067

2шт.
