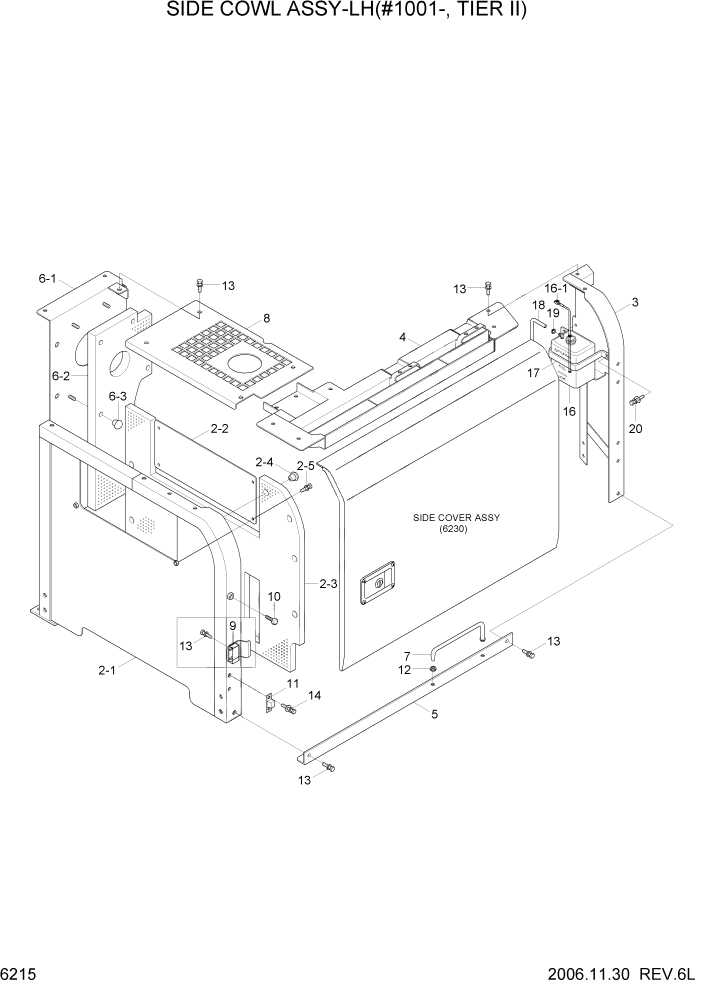

Запчасти Hyundai R140LC-7 PAGE 6215 SIDE COWL ASSY-LH(#1001-, TIER II) СТРУКТУРА

*

72N4-52001

SIDE COWL ASSY-LH

STD #1001 - #1005

1шт.

*

72N4-52002

SIDE COWL ASSY-LH

STD #1006 - #2308

1шт.

*

72N4-52003

SIDE COWL ASSY-LH

STD #2309 - #2416

1шт.

*

72N4-52003Y

SIDE COWL ASSY-LH

STD #2417 - #2607

1шт.

*

72N4-52004

SIDE COWL ASSY-LH

STD #2608

1шт.

*

72N4-57000

SIDE COWL ASSY-LH

SMALL CLEANER #1006 - #2308

1шт.

*

72N4-57001

SIDE COWL ASSY-LH

SMALL CLEANER #2309 - #2416

1шт.

*

72N4-57001Y

SIDE COWL ASSY-LH

SMALL CLEANER #2417

1шт.

*

72N4-82000

SIDE COWL ASSY-LH

AIR VENT TYPE #1006 - #2308

1шт.

*

72N4-82001

SIDE COWL ASSY-LH

AIR VENT TYPE #2309 - #2416

1шт.

*

72N4-82001Y

SIDE COWL ASSY-LH

AIR VENT TYPE #2417 - #2607

1шт.

*

72N4-82002

SIDE COWL ASSY-LH

AIR VENT TYPE #2608

1шт.

*

73N4-52000

SIDE COWL ASSY-LH

HIGH WALKER #1083 - #2607

1шт.

*

73N4-52001

SIDE COWL ASSY-LH

HIGH WALKER #2608

1шт.

*

72N4-82100

SIDE COWL ASSY-LH

A/VENT,SMALL #1340 - #2308

1шт.

*

72N4-82101

SIDE COWL ASSY-LH

A/VENT,SMALL #2309 - #2416

1шт.

*

72N4-82101Y

SIDE COWL ASSY-LH

A/VENT,SMALL #2417

1шт.

*

72N4-85000

SIDE COWL ASSY-LH

LOUVER TYPE #2067 - #2308

1шт.

*

72N4-85001

SIDE COWL ASSY-LH

LOUVER TYPE #2309 - #2416

1шт.

*

72N4-85001Y

SIDE COWL ASSY-LH

LOUVER TYPE #2417 - #2607

1шт.

*

72N4-85002

SIDE COWL ASSY-LH

LOUVER TYPE #2608

1шт.

1

@

SIDE COVER ASSY-LH

NOT

1шт.

2

72N4-52300

SUPPORT ASSY-LH(FR)

STD #1005

1шт.

2

72N4-62300

SUPPORT ASSY-LH(FR)

STD #1006

1шт.

2-1

72N4-52310

SUPPORT WA-LH(FR)

#1005

1шт.

2-1

72N4-62310

SUPPORT WA-LH(FR)

#1006

1шт.

2-2

71N8-52322

PLATE-COVER

1шт.

2-3

72N4-52330

SPONGE

#1005

1шт.

2-3

72N4-62330

SPONGE

#1006

1шт.

2-4

71EM-51580

CAP-STUD BOLT

12шт.

2-5

S037-122052

BOLT-W/WASHER

4шт.

2

73N4-52310

SUPPORT WA-LH(FR)

HIGH WALKER #1083

1шт.

3

72N4-52500

SUPPORT WA-LH(RR)

1шт.

4

72N4-52601

HOOD WA-R/D

STD #2308

1шт.

4

72N4-52602

HOOD WA-R/D

STD #2309

1шт.

4

73N4-52600

HOOD WA-R/D

HIGH WALKER #1083

1шт.

5

71N4-52702

SUPPORT-LH/BOTTOM

STD #1005

1шт.

5

71N4-62700

SUPPORT-LH/BOTTOM

STD #1006

1шт.

5

73N4-52700

SUPPORT-LH/BOTTOM

HIGH WALKER #1083

1шт.

6

72N4-52900

SCREEN ASSY-MCV

STD #1005

1шт.

6

72N4-52901

SCREEN ASSY-MCV

STD #1006 - #2308

1шт.

6

72N4-52902

SCREEN ASSY-MCV

STD #2309

1шт.

6-1

72N4-52910

SCREEN-MCV

#1005

1шт.

6-1

72N4-52911

SCREEN-MCV

#1006 - #2308

1шт.

6-1

72N4-52912

SCREEN-MCV

#2309

1шт.

6-2

72N4-52920

SPONGE

#1005

1шт.

6-2

72N4-52921

SPONGE

#1006 - #2308

1шт.

6-2

72N4-52922

SPONGE

#2309

1шт.

6-3

71EM-51580

CAP-STUD BOLT

7шт.

6

73N4-52910

SCREEN-MCV

HIGH WALKER #1083

1шт.

7

71N8-52950

STAY-SIDE COVER

1шт.

8

72N4-55100

HOOD-A/C

STD #2308

1шт.

8

72N4-55101

HOOD-A/C

STD #2309

1шт.

8

73N4-55100

HOOD-A/C

HIGH WALKER #1083

1шт.

9

71N8-52492

PLATE-LOCK

STD

1шт.

9

73N4-52490

PLATE-LOCK

HIGH WALKER #1083

1шт.

10

71EH-13150

BUMPER-RUBBER

1шт.

11

71EE-53540

STOPPER-B

1шт.

12

S681-100400

GROMMET

1шт.

13

S037-122552

BOLT-W/WASHER

19шт.

14

S035-062022

BOLT-W/WASHER

2шт.

15

@

AIR CLEANER ASSY

NOT #1001

1шт.

16

11EN-42330

TANK-RESERVOIR

#2308

1шт.

16

11N4-47010

TANK-RESERVOIR

#2309

1шт.

16-1

11EN-42400

SENSOR-RESERVOIR

1шт.

17

11ER-42530

PLATE-CLAMP

2шт.

18

11E3-4011

HOSE

1шт.

19

S520-015000

CLAMP-HOSE

1шт.

20

S035-082022

BOLT-W/WASHER

2шт.
