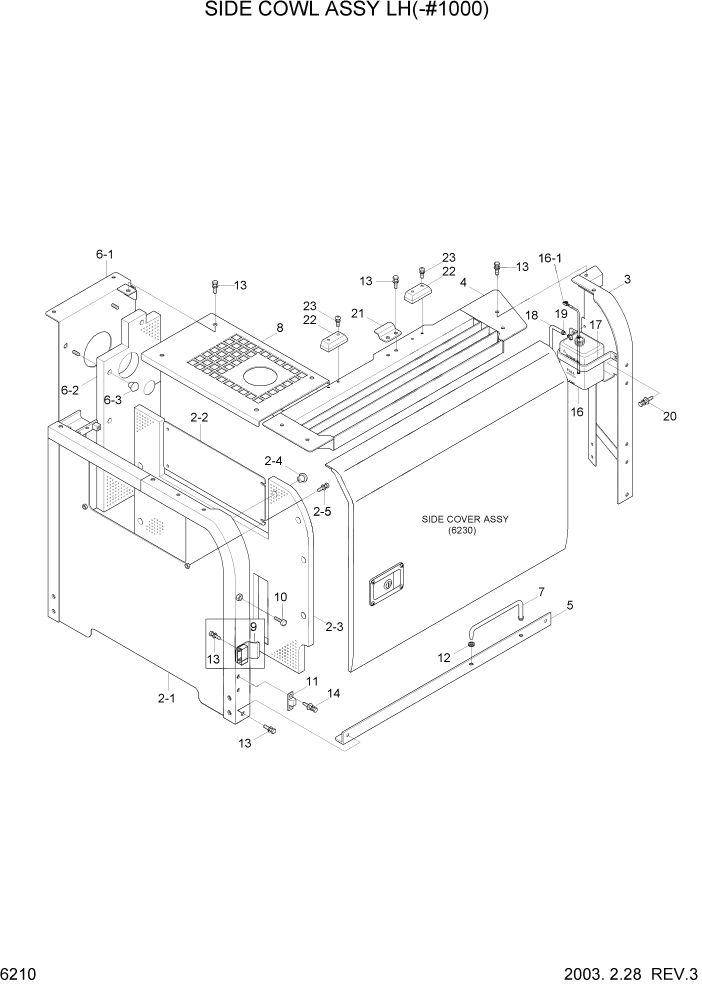

Запчасти Hyundai R140LC-7 PAGE 6210 SIDE COWL ASSY(LH, -#1000) СТРУКТУРА

*

71N4-52002

SIDE COWL ASSY-LH

STD #0053

1шт.

*

71N4-52003

SIDE COWL ASSY-LH

STD #0054 - #1000

1шт.

*

71N4-57000

SIDE COWL ASSY-LH

SMALL CLEANER #0094 - #1000

1шт.

*

71N4-82000

SIDE COWL ASSY-LH

AIR VENT TYPE #0226 - #1000

1шт.

1

@

SIDE COVER ASSY-LH

NOT

1шт.

2

71N4-52300

SUPPORT ASSY-LH(FR)

1шт.

2-1

71N4-52310

SUPPORT WA-LH(FR)

1шт.

2-2

71N8-52322

COVER-PLATE

1шт.

2-3

71N4-52330

SPONGE

#0026

1шт.

2-3

71N4-52331

SPONGE

#0027

1шт.

2-4

71EM-51580

CAP-STUD BOLT

10шт.

2-5

S037-122552

BOLT-W/WASHER

#0026

4шт.

2-5

S037-122052

BOLT-W/WASHER

#0027

4шт.

3

71N4-52502

SUPPORT WA-LH(RR)

1шт.

4

71N4-52602

HOOD WA-R/D

#0053

1шт.

4

71N4-52603

HOOD WA-R/D

#0054

1шт.

5

71N4-52702

SUPPORT-LH/BOTTOM

1шт.

6

71N4-52901

SCREEN ASSY-MCV

1шт.

6-1

71N4-52911

SCREEN-MCV

1шт.

6-2

71N4-52921

SPONGE

1шт.

6-3

71EM-51580

CAP-STUD BOLT

8шт.

7

71N8-52950

STAY-SIDE COVER

1шт.

8

71N4-55101

HOOD-A/C

1шт.

9

71N8-52492

PLATE-LOCK

1шт.

10

71EH-13150

RUBBER-BUMPER

1шт.

11

71EE-53540

STOPPER-B

1шт.

12

S681-100400

GROMMET

1шт.

13

S037-122552

BOLT-W/WASHER

21шт.

14

S035-062022

BOLT-W/WASHER

2шт.

15

@

AIR CLEANER ASSY

NOT

1шт.

16

11EN-42330

TANK-RESERVOIR

1шт.

16-1

11EN-42400

SENSOR-RESERVOIR

1шт.

17

11ER-42530

PLATE-CLAMP

#0026

2шт.

17

11ER-42530

PLATE-CLAMP

#0027

1шт.

18

11E3-4011

HOSE

1шт.

19

S520-015000

CLAMP-HOSE

1шт.

20

S035-082022

BOLT-W/WASHER

STD

2шт.

21

71N4-52930

PLATE-LOCK

1шт.

22

71N6-51140

STOPPER-A

#0053

1шт.

22

71N6-51140

STOPPER-A

#0054

2шт.

23

S132-063052

SCREW-W/WASHER

#0053

2шт.

23

S132-063052

SCREW-W/WASHER

#0054

4шт.
