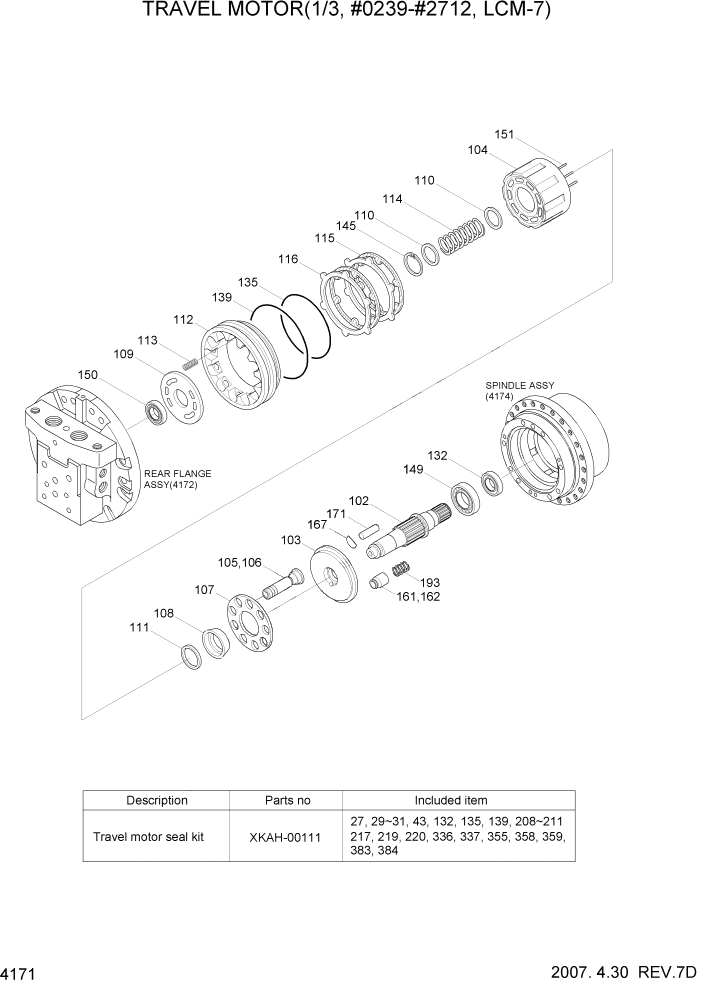

Запчасти Hyundai R140LC-7 PAGE 4171 TRAVEL MOTOR(1/3, #0239-#2712, LCM-7) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

31EL-40010

TRAVEL MOTOR ASSY

*-1,*-2 #0239 - #2712

1шт.

*-1

XKAH-00481

TRAVEL MOTOR UNIT

1шт.

*-5

XKAH-00321

C/BLOCK & PISTON KIT

1шт.

*-51

XKAH-00068

PISTON ASSY

1шт.

N105

XKAH-00069

PISTON

NOT

9шт.

N106

XKAH-00070

SHOE

NOT

9шт.

N104

XKAH-00071

BLOCK-CYLINDER

NOT

1шт.

107

XKAH-00072

PLATE-RETAINER

1шт.

108

XKAH-00073

BALL-THRUST

1шт.

110

XKAH-00074

WASHER

2шт.

111

XKAH-00318

COLLAR

1шт.

114

XKAH-00076

SPRING

1шт.

151

XKAH-00077

ROLLER

5шт.

*-6

XKAH-00078

PISTON KIT-2 SPEED

1шт.

N161

XKAH-00079

PISTON-2 SPEED

NOT

1шт.

N162

XKAH-00080

SHOE-2 SPEED

NOT

1шт.

102

XKAH-00081

SHAFT-MAIN

1шт.

103

XKAH-00467

PLATE-SWASH

1шт.

109

XKAH-00468

PLATE-TIMING

1шт.

112

XKAH-00084

PISTON-PARKING

1шт.

113

XKAH-00085

SPRING

12шт.

115

XKAH-00086

PLATE-FRICTION

2шт.

116

XKAH-00087

PLATE-MATING

2шт.

K132

XKAH-00088

SEAL-OIL

1шт.

K135

XKAH-00089

O-RING

1шт.

K139

XKAH-00090

O-RING

1шт.

145

XKAH-00091

RING-SNAP

1шт.

149

XKAH-00092

BEARING-BALL

1шт.

150

XKAH-00093

BEARING-BALL

1шт.

167

XKAH-00095

PIVOT

1шт.

171

XKAH-00034

PIN-PARALLEL

2шт.

193

XKAH-00094

SPRING

1шт.

*-2

@

REDUCTION GEAR

NOT

1шт.

K

XKAH-00111

SEAL KIT

SEE ILLUST

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
