Запчасти Hyundai R140LC-7 PAGE 3520 ARM SAFETY LOCK SYSTEM ГИДРАВЛИЧЕСКАЯ СИСТЕМА

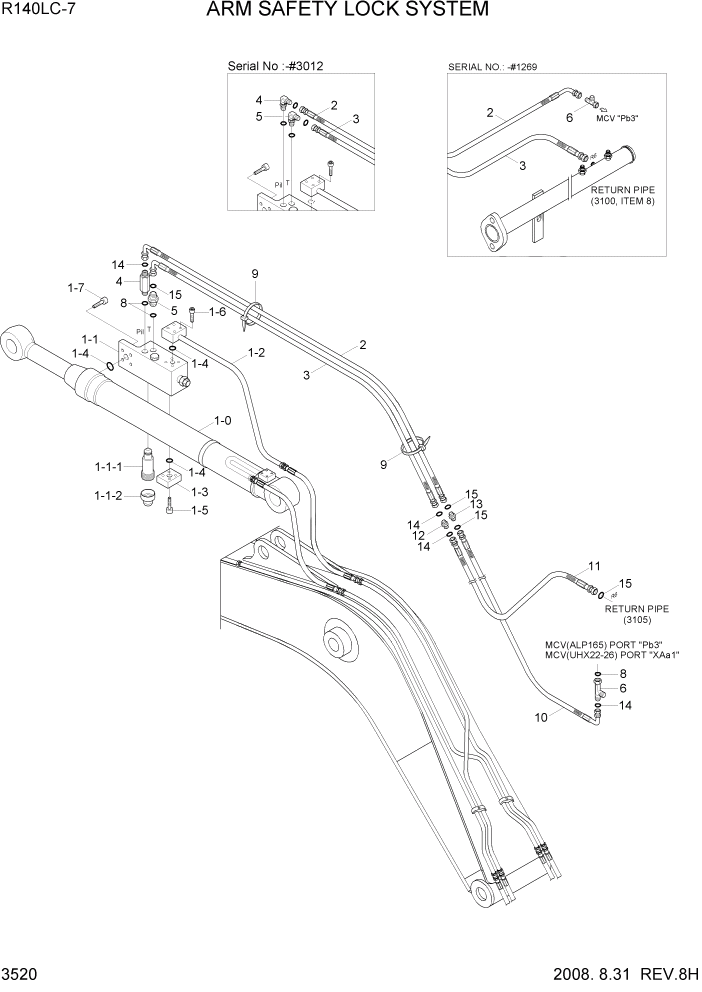

Схема запчастей Hyundai R140LC-7 - PAGE 3520 ARM SAFETY LOCK SYSTEM ГИДРАВЛИЧЕСКАЯ СИСТЕМА

Артикул

Название

Примечание

Количество

1

31N4-52130

ARM SAFE LOCK CYL

#1249

1шт.

1

31N4-52131

ARM CYL-SAFETY VLV

#1250 - #1269

1шт.

1

31N4-52132

ARM SAFE LOCK CYL

#1270

1шт.

1

@

ARM CYL SUB ASSY

NOT

1шт.

1-1

31N6-90510

VALVE-SAFETY LOCK

1шт.

1-1-1

ZTAS-00001

VALVE-RELIEF

1шт.

1-1-2

ZTAS-00002

CAP

1шт.

1-1-3

ZTAS-00004

SEAL KIT

1шт.

1-2

31Y1-18540

PIPE ASSY-RV

1шт.

1-3

P184-121112

FLANGE-HYD,PLUGING

1шт.

1-4

Y171-019001

O-RING

3шт.

1-5

S109-100356

BOLT-SOCKET

4шт.

1-6

S109-100456

BOLT-SOCKET

4шт.

1-7

S109-100506

BOLT-SOCKET

4шт.

2

P420-042122

HOSE ASSY-COMP 0X90

STD #1269

1шт.

2

P600-042083

HOSE ASSY-THD 0X0

STD #1270 - #1370

1шт.

2

P910-042083

HOSE ASSY-ORFS 0X0

STD #1371 - #3012

1шт.

2

P930-042083

HOSE ASSY-ORFS 0X90

STD #3013

1шт.

2

P420-042113

HOSE ASSY-COMP 0X90

SHORT BOOM #0063 - #1269

1шт.

2

P600-042074

HOSE ASSY-THD 0X0

SHORT BOOM #1270 - #1370

1шт.

2

P910-042074

HOSE ASSY-ORFS 0X0

SHORT BOOM #1371 - #3012

1шт.

2

P930-042078

HOSE ASSY-ORFS 0X90

SHORT BOOM #3013

1шт.

2

P420-042132

HOSE ASSY-COMP 0X90

ADJUST BOOM #0234 - #1269

1шт.

2

P600-042093

HOSE ASSY-THD 0X0

ADJUST BOOM #1270 - #1370

1шт.

2

P910-042093

HOSE ASSY-ORFS 0X0

ADJUST BOOM #1371 - #3012

1шт.

2

P930-042097

HOSE ASSY-ORFS 0X90

ADJUST BOOM #3013

1шт.

3

P420-062125

HOSE ASSY-COMP 0X90

STD #1269

1шт.

3

P600-062083

HOSE ASSY-THD 0X0

STD #1270 - #1370

1шт.

3

P910-062083

HOSE ASSY-ORFS 0X0

STD #1371 - #3012

1шт.

3

P930-062083

HOSE ASSY-ORFS 0X90

STD #3013

1шт.

3

P420-062116

HOSE ASSY-COMP 0X90

SHORT BOOM #0063 - #1269

1шт.

3

P600-062074

HOSE ASSY-THD 0X0

SHORT BOOM #1270 - #1370

1шт.

3

P910-062074

HOSE ASSY-ORFS 0X0

SHORT BOOM #1371 - #3012

1шт.

3

P930-062078

HOSE ASSY-ORFS 0X90

SHORT BOOM #3013

1шт.

3

P420-062134

HOSE ASSY-COMP 0X90

ADJUST BOOM #0234 - #1269

1шт.

3

P600-062093

HOSE ASSY-THD 0X0

ADJUST BOOM #1270 - #1370

1шт.

3

P910-062093

HOSE ASSY-ORFS 0X0

ADJUST BOOM #1371 - #3012

1шт.

3

P930-062097

HOSE ASSY-ORFS 0X90

ADJUST BOOM #3013

1шт.

4

P030-110001

ELBOW-45

#0035

1шт.

4

E131-0603

ELBOW-90,LONG

#0036 - #1370

1шт.

4

31N6-25110

ELBOW-90,ORFS,LONG

#1371 - #3012

1шт.

4

X511-104513

CONNECTOR-LONG,ORFS

#3013

1шт.

5

P010-110012

CONNECTOR

#1269

1шт.

5

P020-110012

ELBOW-90

#1270 - #1370

1шт.

5

X520-110011

ELBOW-90,ORFS

#1371 - #3012

1шт.

5

X500-110011

CONNECTOR-ORFS

#3013

1шт.

6

32E6-10460

TEE-SWEVEL NUT

#0035

1шт.

6

31E6-0219

TEE-LONG

#0036 - #1370

1шт.

6

31N4-22150

TEE-LONG,ORFS

#1371

1шт.

7

P220-110102

PLUG

1шт.

8

S631-014001

O-RING

#1370

3шт.

8

S631-014001

O-RING

#1371

4шт.

9

S552-020102

CLAMP-BAND

10шт.

10

P620-042039

HOSE ASSY-THD 0X90

#1270 - #1370

1шт.

10

P930-042039

HOSE ASSY-ORFS 0X90

STD, SHORT BOOM #1371

1шт.

10

P930-042048

HOSE ASSY-ORFS 0X90

ADJUST BOOM #1371

1шт.

11

P600-062042

HOSE ASSY-THD 0X0

#1270 - #1370

1шт.

11

P910-062042

HOSE ASSY-ORFS 0X0

#1371

1шт.

12

31L7-40190

CONNECTOR

#1270 - #1370

1шт.

12

X540-110001

CONNECTOR-ORFS

#1371

1шт.

13

31L7-40180

CONNECTOR

#1270 - #1370

1шт.

13

X540-110002

CONNECTOR-ORFS

#1371

1шт.

14

S621-011001

O-RING

#1371

4шт.

15

S621-012001

O-RING(SEAL LOCK TYPE)

#1371

4шт.

Выбрано товаров: 64
