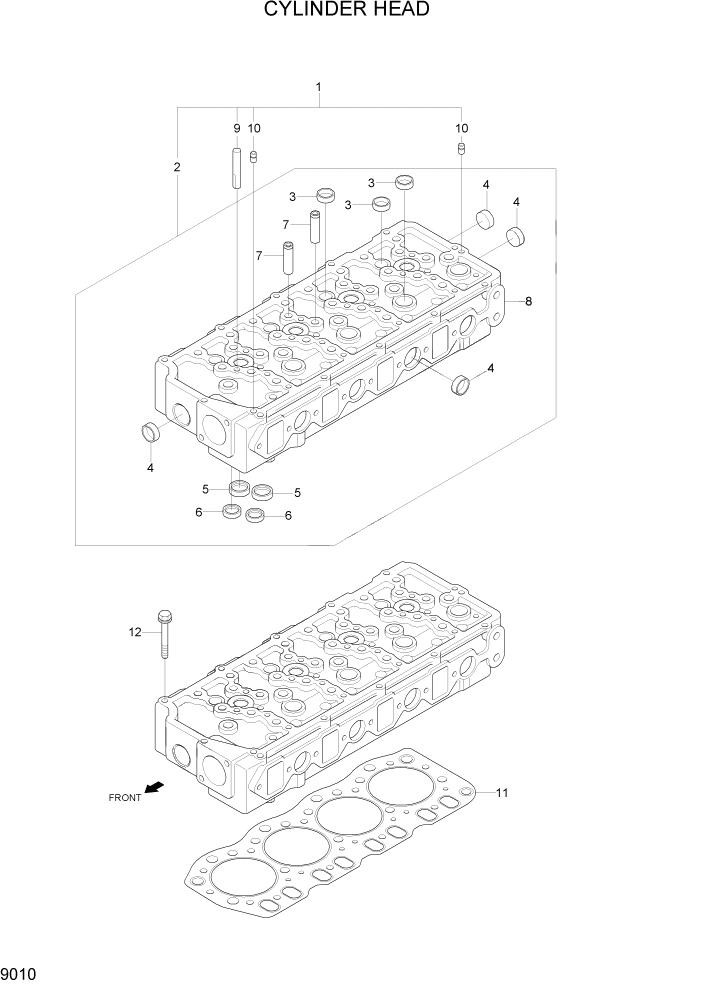

Запчасти Hyundai R110-7A PAGE 9010 CYLINDER HEAD ДВИГАТЕЛЬ БАЗА

1

XJAF-02244

HEAD ASSY-CYLINDER

INCL 2,9,10

1шт.

N2

@

CYLINDER HEAD SUB ASSY

NOT

1шт.

3

XJAF-00569

CAP-SEALING

8шт.

4

XJAF-01101

CAP-SEALING

7шт.

5

XJAF-02561

SEAT-VALVE INLET

8шт.

6

XJAF-02562

SEAT-VALVE EXHAUST

8шт.

7

XJAF-02563

GUIDE-VALVE

16шт.

N8

@

HEAD-CYLINDER

NOT

1шт.

9

XJAF-02508

GUIDE-BRIDGE

8шт.

10

XJAF-02246

PIN-DOWEL

2шт.

11

XJAF-02481

GASKET-CYLINDER HEAD

1шт.

12

XJAF-02247

BOLT-CYLINDER HEAD

17шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
