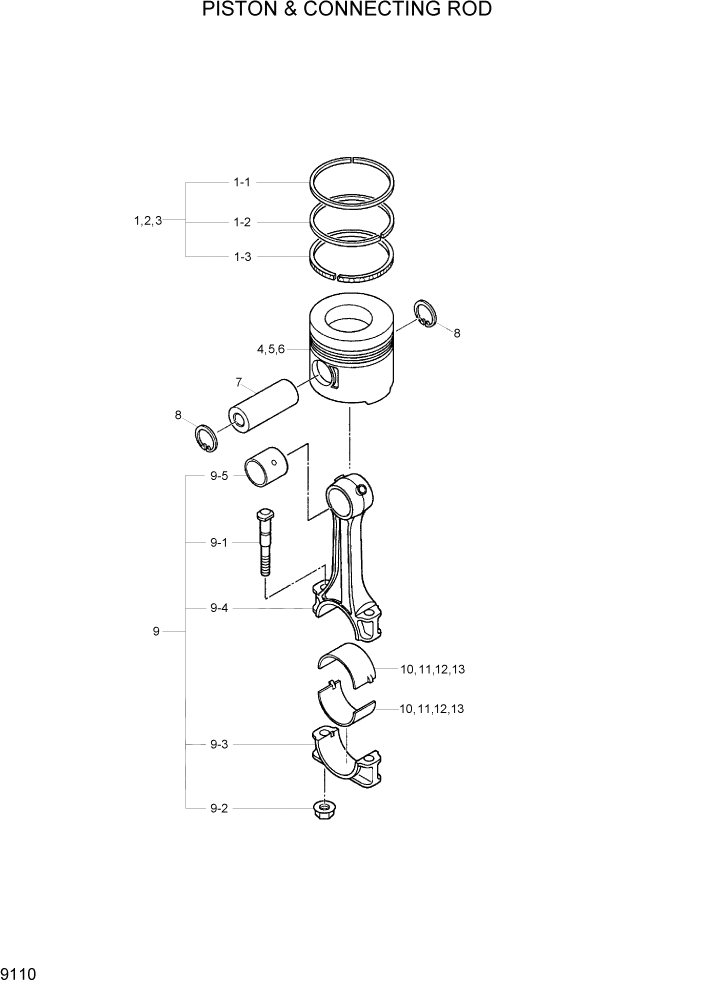

Запчасти Hyundai R110-7 PAGE 9110 PISTON & CONNECTING ROD ДВИГАТЕЛЬ БАЗА

1

XJAF-00278

RING SET-PISTON

STD

4шт.

N1-1

@

RING-NO.1

NOT

4шт.

N1-2

@

RING-NO.2

NOT

4шт.

N1-3

@

RING-OIL

NOT

4шт.

2

XJAF-00279

RING SET-PISTON

0.25MM O/S

4шт.

3

XJAF-00280

RING SET-PISTON

0.50MM O/S

4шт.

4

XJAF-00281

PISTON

STD

4шт.

5

XJAF-00282

PISTON

0.25MM O/S

4шт.

6

XJAF-00283

PISTON

0.50MM O/S

4шт.

7

XJAF-00284

PIN-PISTON

4шт.

8

XJAF-00285

RING-SNAP

8шт.

9

XJAF-00286

CONNECTING ROD ASSY

4шт.

9-1

XJAF-00287

BOLT-CONNECTING-ROD

8шт.

9-2

XJAF-00288

NUT-CONNECTING-ROD

8шт.

N9-3

@

CAP-CONNECTING ROD

NOT

4шт.

N9-4

@

CONNECTING ROD

NOT

4шт.

9-5

XJAF-00293

BUSHING-CON ROD

4шт.

10

XJAF-00289

BEARING-CON ROD

STD

8шт.

11

XJAF-00290

BEARING-CON ROD

0.25MM U/S

8шт.

12

XJAF-00291

BEARING-CON ROD

0.50MM U/S

8шт.

13

XJAF-00292

BEARING-CON ROD

0.75MM U/S

8шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
