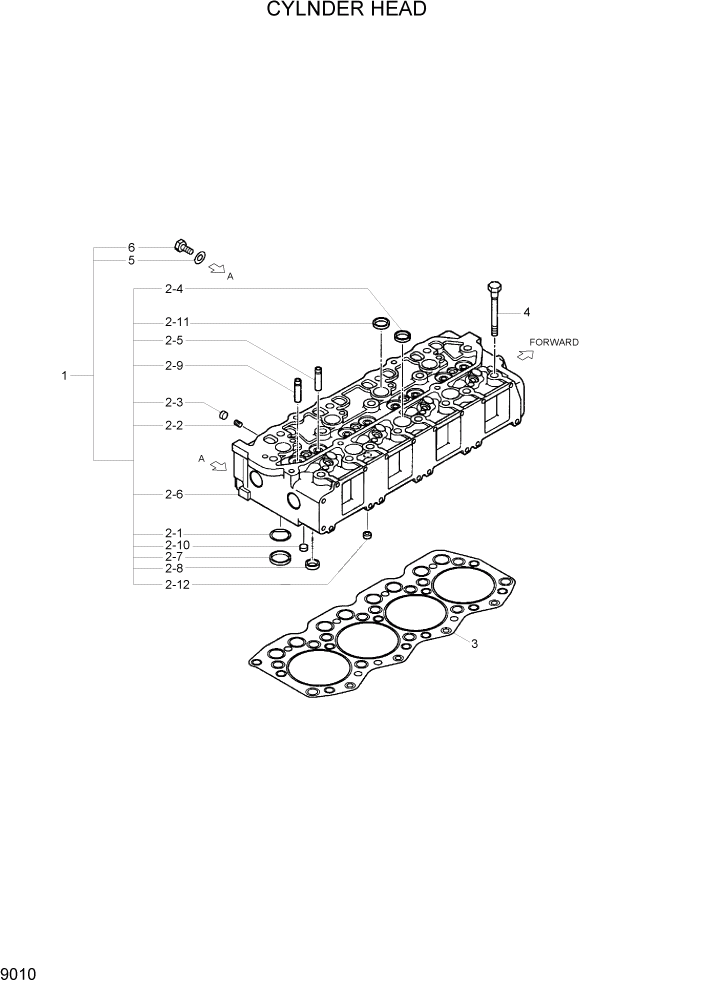

Запчасти Hyundai R110-7 PAGE 9010 CYLINDER HEAD ДВИГАТЕЛЬ БАЗА

1

XJAF-00134

CYLINDER HEAD ASSY

1шт.

N2

@

CYLINDER HEAD SUB ASSY

NOT

1шт.

2-1

XJAF-00135

PLATE-SWIRL

4шт.

2-2

XJAF-00201

PLUG-TAPER

4шт.

2-3

XJAF-01100

CAP-SEALING

4шт.

2-4

XJAF-01101

CAP-SEALING

10шт.

2-5

XJAF-00136

GUIDE-EXHAUST VALVE

4шт.

N2-6

@

HEAD-CYLINDER

NOT

1шт.

2-7

XJAF-00137

SEAL-INLET VALVE

4шт.

2-8

XJAF-00138

SEAT-EXHAUST VALVE

4шт.

2-9

XJAF-00139

GUIDE-INLET VALVE

4шт.

2-1

XJAF-00141

CAP-SEALING

2шт.

2-11

XJAF-00569

CAP-SEALING

4шт.

2-12

XJAF-00142

CAP-SEALING

3шт.

3

XJAF-00143

GASKET-CYLINDER HEAD

1шт.

4

XJAF-00144

BOLT-CYLINDER HEAD

17шт.

5

XJAF-00563

WASHER-SEALING

1шт.

6

XJAF-00145

PLUG-DRAIN

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
