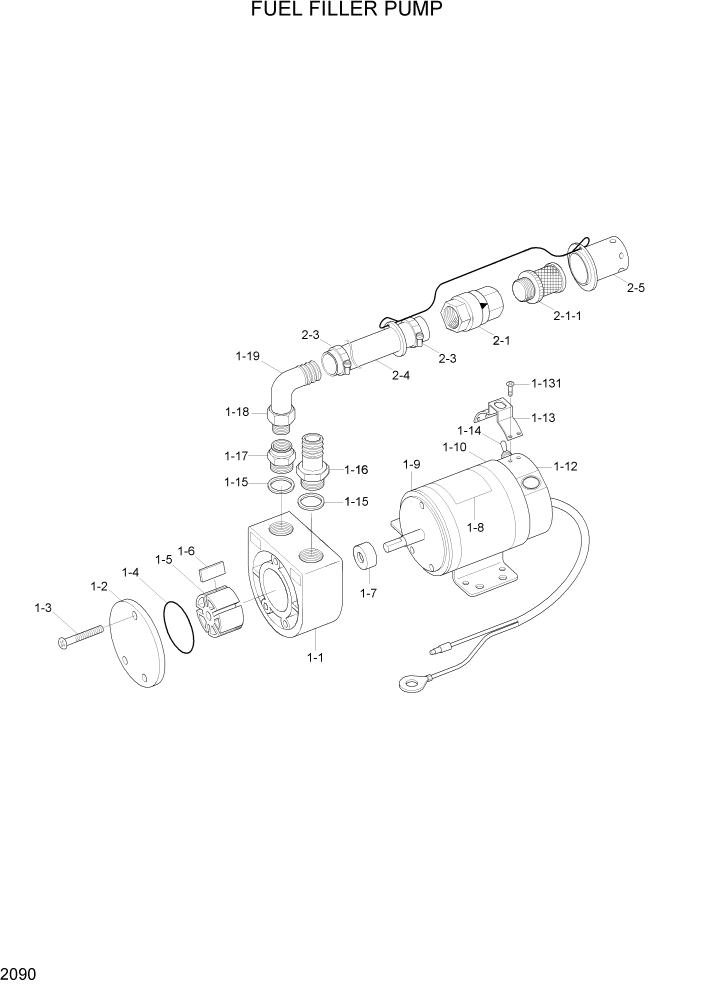

Запчасти Hyundai R80-7A PAGE 2090 FUEL FILLER PUMP ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

*

21M8-50052

FUEL FILLER PUMP KIT

#0002

1шт.

*

21M8-51050

FUEL FILLER PUMP ASSY

#0003

1шт.

1

21M8-50062

FUEL FILLER PUMP ASSY

#0002

1шт.

1

21M8-51060

PUMP & MOTOR ASSY

#0003

1шт.

N1-1

@

BODY

NOT

1шт.

N1-2

@

COVER

NOT

1шт.

N1-3

@

SCREW

NOT

3шт.

K1-4

21EM-45050

O-RING

1шт.

K1-5

21EM-45060

ROTOR

1шт.

K1-6

21EM-45070

PLATE-VANE

5шт.

K1-7

21EM-45080

SEAL-OIL

1шт.

N1-8

21EM-45091

DECAL

NOT #0002

1шт.

N1-8

21M8-45020

DECAL

NOT #0003

1шт.

N1-9

@

COVER-FRONT

NOT

1шт.

N1-10

@

COVER-REAR

NOT

1шт.

N1-12

21EM-45101

BOX-SWITCH

NOT

1шт.

1-13

21EM-45300

COVER-SWITCH

1шт.

1-131

S161-050166

SCREW-CROSS R/ROUND

4шт.

1-14

31E2-08302A

TOGGEL SWITCH

1шт.

1-15

21EM-45500

WASHER-AL

3шт.

1-16

33G8-12001

FITTING

1шт.

1-17

21EM-45700

FITTING

1шт.

1-18

21EM-45800

NUT-ELBOW

1шт.

1-19

21EM-45900

ELBOW

1шт.

2

21M6-55030

HOSE ASSY

#0002

1шт.

2

21EM-46400

HOSE ASSY

#0003

1шт.

2-1

21M5-50260

VALVE-CHECK

4шт.

2-1-1

2P1-SP-01

STRAINER ASSY

1шт.

2-3

S520-027000

CLAMP-HOSE

1шт.

2-4

21M5-51143

HOSE-INLET

#0002

1шт.

2-4

21EM-46101

HOSE

#0003

1шт.

2-5

21EM-46300

CAP ASSY

1шт.

K

21EM-46201

SERVICE KIT

1шт.

N

@

NOT SUPPLIED PARTS

NOT

ARшт.
